Wire Tracer PCE-160 CB

Order no.: PCE-160 CB
GTIN (EAN): 4250348720221
US$ 100.00
No-Shopping
ex. VAT, ex. delivery costs
:
4250348720221
PCE-160 CB
Available in: 1-2 days

Description

Wire tracer PCE-160 CB
Line locator for line identification / With different signal tones / Continuity test / Semi-rigid probe tip for optimum positioning / Earphone jack / Battery operated for mobile use / Sensitivity control

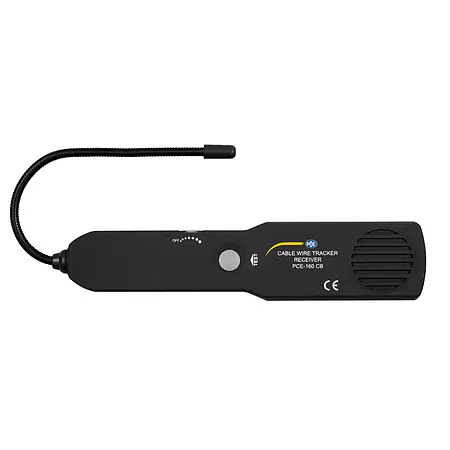

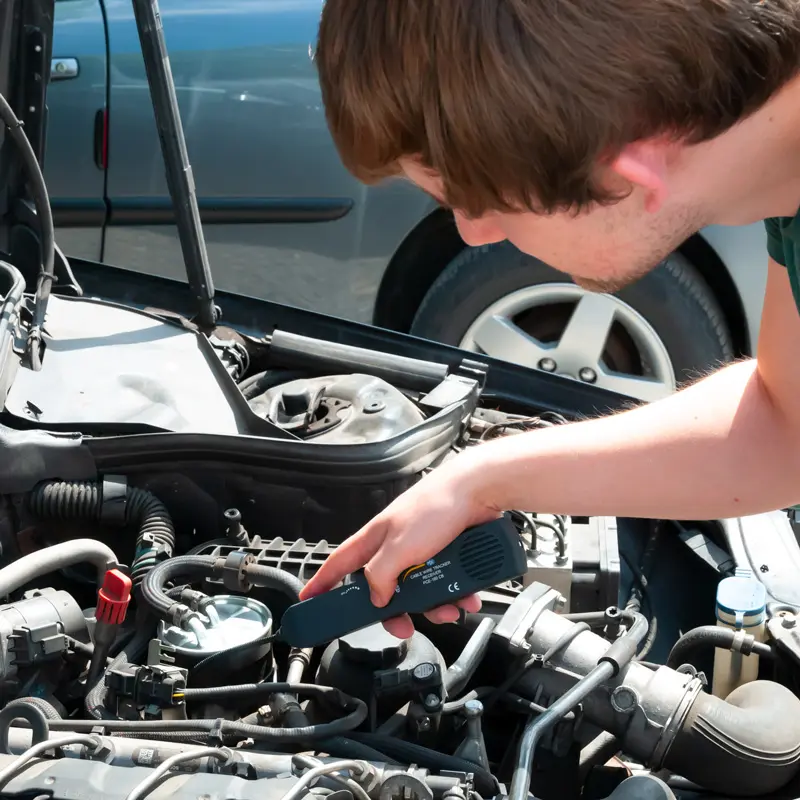

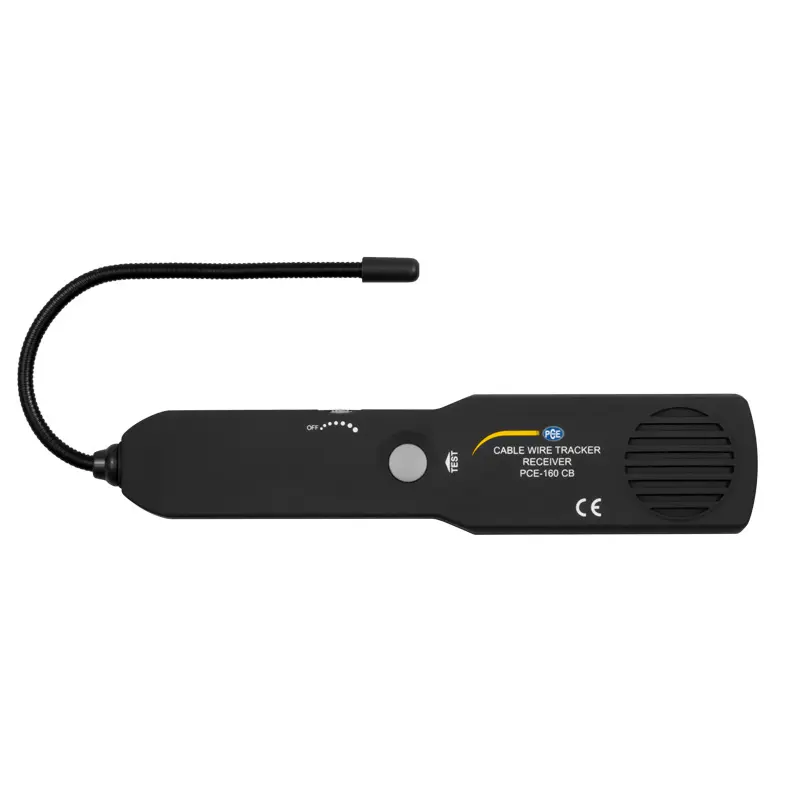

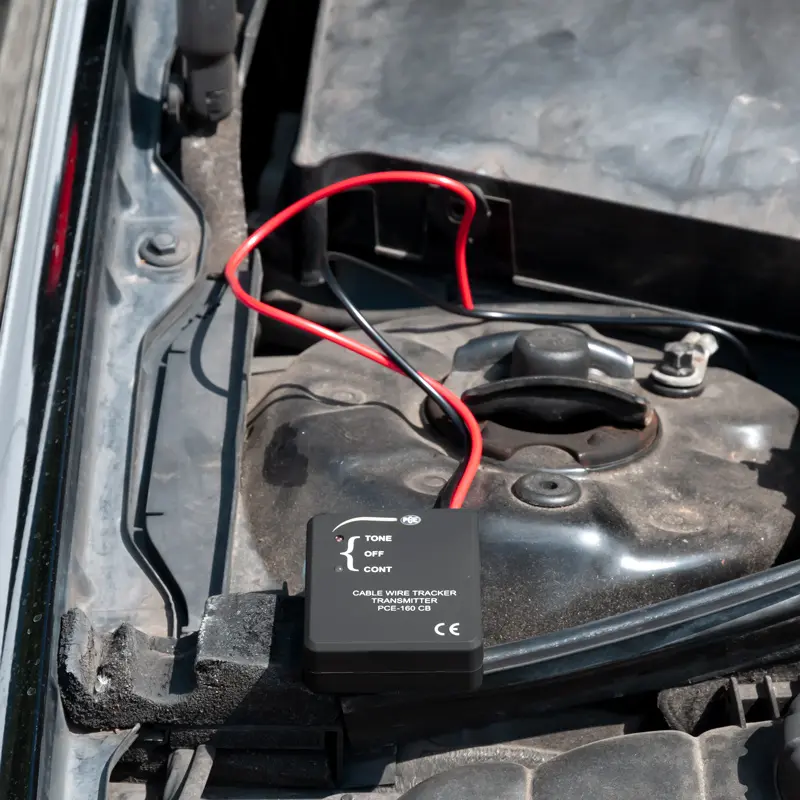

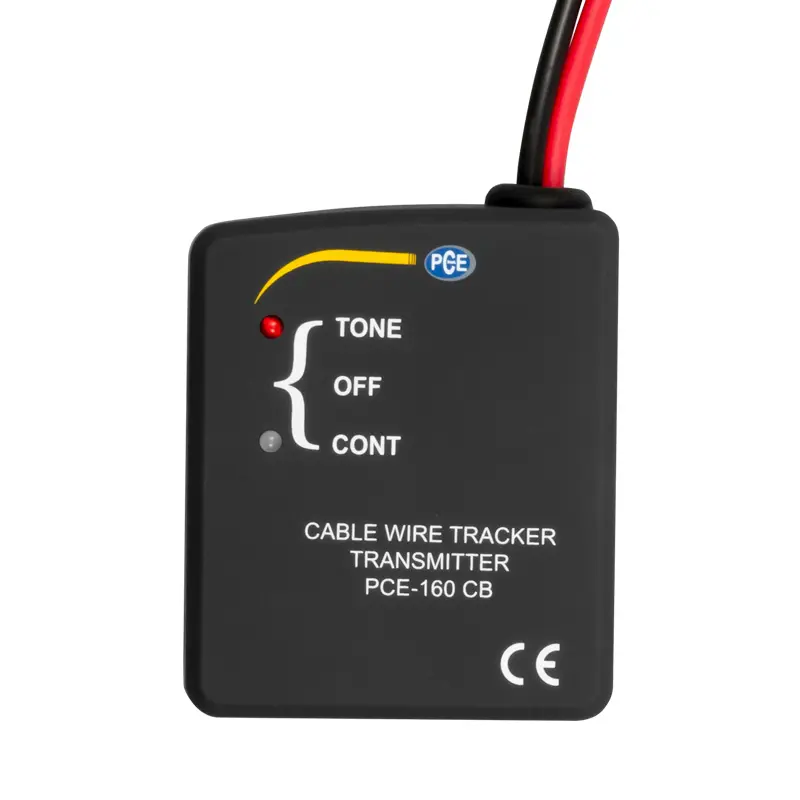

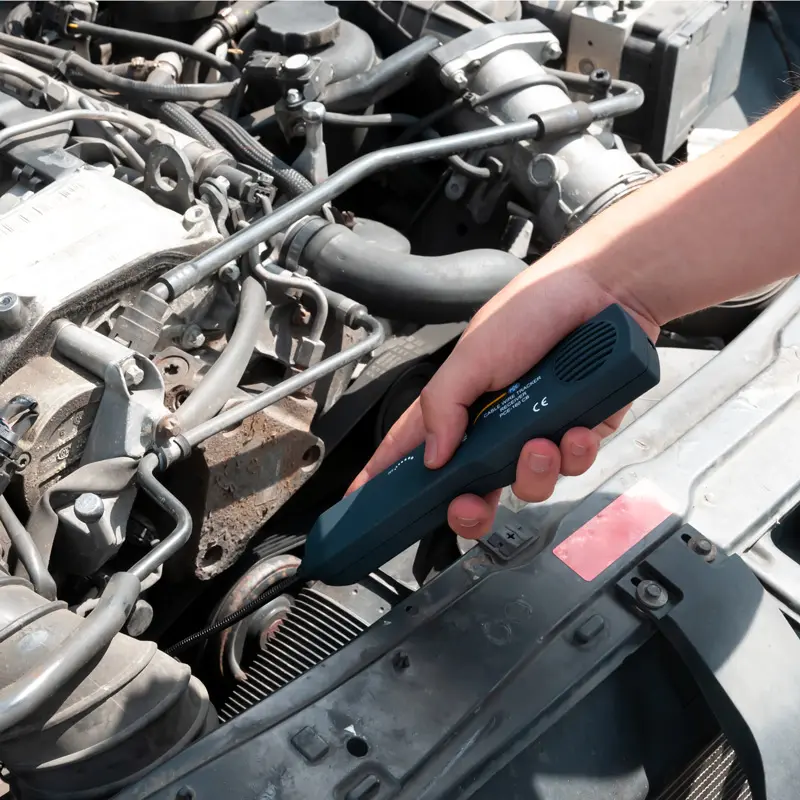

The PCE-160 CB line locator is a direct line locator for hard-to-reach lines. The line locator finds its application, for example in the automotive sector. When using the line locator, the transmitter is connected to the lines to be detected using the crocodile clips. The transmitter of the line locator generates a pulse signal after being turned on. With the receiver of the line locating device, the pulse signals can then be detected, for example on a cable harness. This allows a quick location of the line.

In addition to the line location, there is also the continuity test with the line locator. This feature requires only the transmitter. Also connect this directly to your wires. With the pass-through function, the operator is directly shown whether there is a closed circuit.

Highlights

- Sensitivity adjustment
- Headphone jack
- Different beeps
- Cable tracking in walls and cable channels
- For mobile use
- Semi-rigid probe for optimal positioning

Specification

Line detection By beep
Beeps Pulsating sound, lasting sound
Further measurement function Continuity test
Transmitter connection Alligator clips
Receiver connection Headphone jack
Environment operations 0 ... 50°C / 32 ... 122°F, 5 ... 95% rh
Power supply 2 x 9V block battery (incl.)
Dimensions Receiver: 260 x 44 x 25 mm
Probe length: 180 mm, semi-rigid
Transmitter: 70 x 56 x 22 mm / 2.8 x 2.2 x 0.9 in
Connecting cable: approx. 600 mm / 23.6 in
Weight

Receiver: approx. 202 g / < 1 lb
Transmitter: approx. 61 g / < 1 lb specifications without battery
Connection cable: approx. 600 mm / 23.6 in

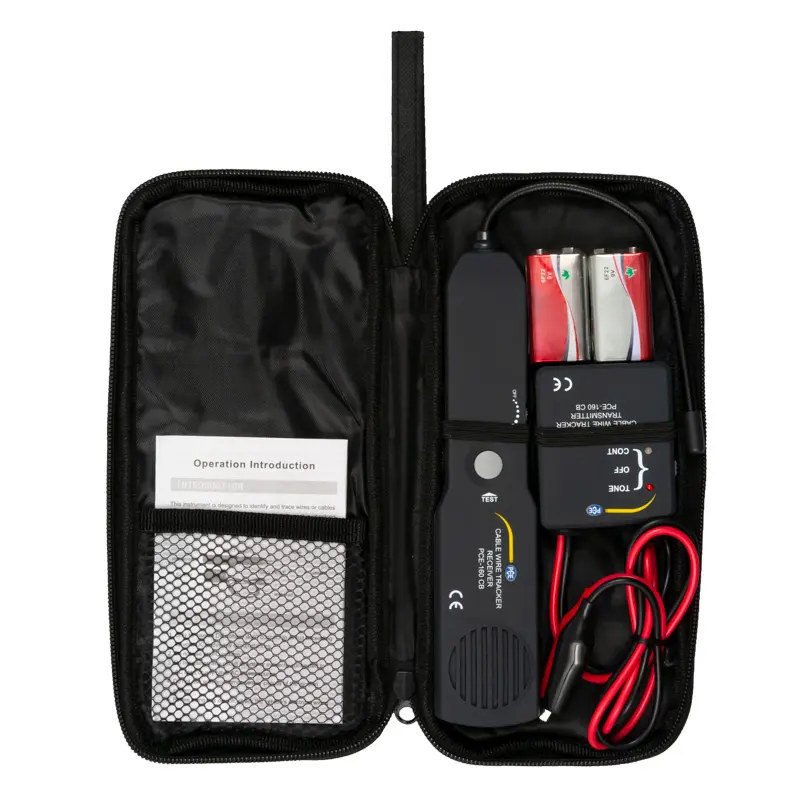

Delivery Scope

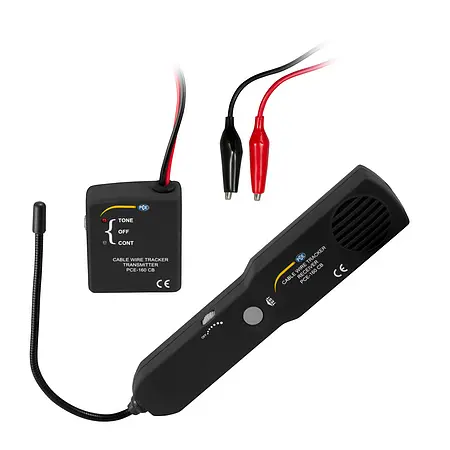

1 x Wire tracer PCE-160 CB consisting of 1 x transmitter and 1 x receiver
2 x 9V block batteries
1 x Transport bag
1 x User manual
