Wire Tracer PCE-180 CBN

Name: Wire Tracer PCE-180 CBN
Brand: PCE Instruments
SKU: 2132615
Price: 178 USD
Availability: InStock

Order no.: PCE-180 CBN

GTIN (EAN): 4250348713957

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

PCE-180 CBN Wire Tracer
Portable handheld cable locator, fault meter or electrical circuit tester with built-in headphone jack

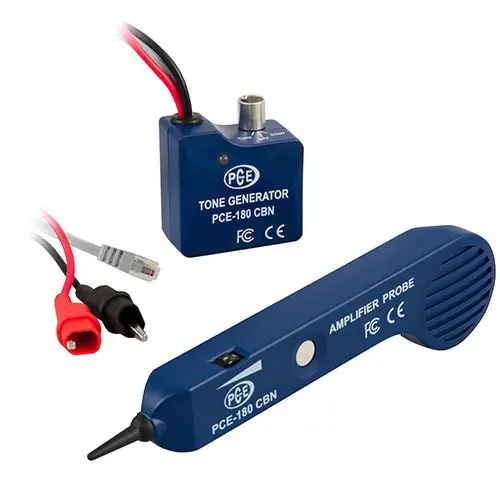

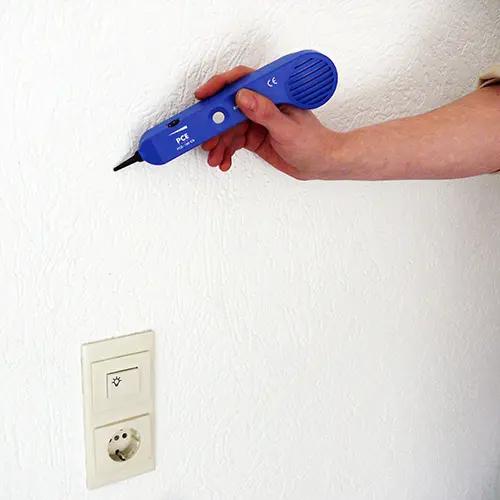

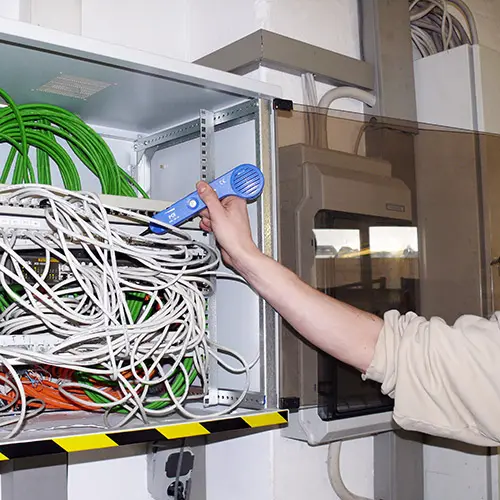

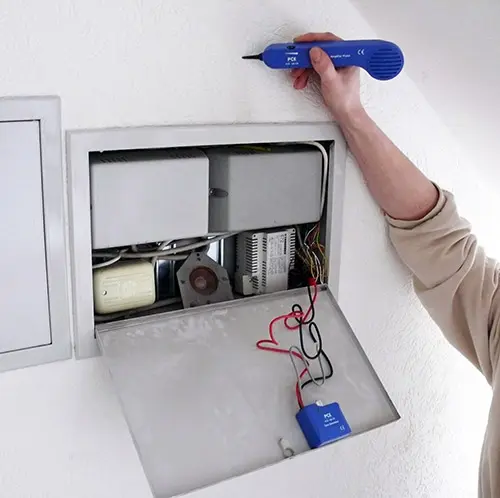

PCE-180 CBN is a handheld, portable, battery-powered wire tracer or cable locator that consists of an amplifier probe and acoustic signal or tone generator. This locating device is designed to detect wires or cables hidden behind walls or insulation, including network and coaxial cables.

- Features a 3-position toggle switch (and 3-color LED) for line polarity, continuity and voltage testing
- Adjustable volume and selection of either pulsing or continuous tones
- Recessed on / off button prevents accidental activation and battery drain
- Comes with red and black test leads with alligator clips
- Includes 2-year warranty against manufacturer defects

Highlights

- Uses an acoustic signal to detect wires and cables, including network and coaxial cables
- Compatible with other signal or tone generators used to detect wires or cables
- Has a standard 4-conductor modular cord and plug
- Contains a built-in headphone jack
- Battery powered

Specification

Detection method: Acoustic signal
Tones: Pulsing or continuous
Connections: RJ-11, alligator clips and headphone jack
Power supply: 2 x 9 V batteries
Certifications: CE, IEC / EN 61010-1:01
Operating conditions: 0 ... +50 °C / +32 ... +122 °F and 5 ... 95% rh
Dimensions: 60 x 65 x 30 mm / 2.36 x 2.56 x 1.18" signal generator and 245 x 60 x 30 mm / 9.65 x 2.36 x 1.18" amplifier probe
Weight: 120 g / 0.26 lb signal generator and 140 g / 0.31 lb amplifier probe

Delivery Scope

1 x PCE-180 CBN wire tracer (includes amplifier probe, tone generator and 2 x test leads with alligator clips)
2 x 9 V batteries
1 x carrying case
1 x user manual
