Wood Moisture Meter PCE-MA 202

Order no.: PCE-MA 202
GTIN (EAN): 4250348715203

US$ 1,254.00
ex. VAT, ex. delivery costs
:
4250348715203
PCE-MA 202
Available in: 1-2 days
Desktop

Description

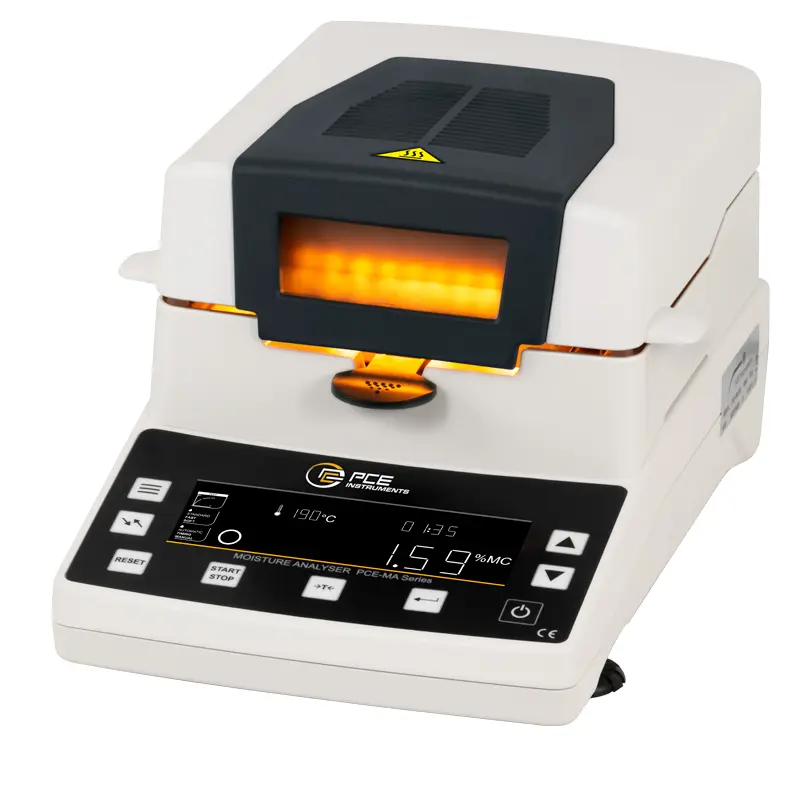

PCE-MA 202 Wood Moisture Meter
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content

The wood moisture meter PCE-MA 202 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the wood moisture meter dries the material to be weighed, and then calculates the moisture content from the weight difference. The wood moisture meter can determine the smallest weight differences thanks to a readability of 0.01 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the wood moisture meter. Accordingly, the wood moisture meter is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the wood moisture meter can be calibrated at any time.


Highlights

- Weighing range: 200 g
- Readability: 10 mg / 0.01 g
- Heating chamber for moisture determination
- RS-232 interface
- Memory for up to 15 drying programs
- Adjustable drying temperature and time
- Ease of use
- Calibration function for readjustment
- 100 g calibration weight included
- Large LCD display with nine membrane keys

Specification


Technical specifications
Weighing range 200 g
Readability 10 mg / 0.01 g
Heating element halogen lamp
Temperature range +40 ... +199 °C
Heating time 1 ... 99 min. adjustable
Humidity measurement range 0 ... 100 %
Readability 0.1 %
Memory 15 drying programs
Interface RS-232
Display LCD, 9 membrane keys
Power supply 220 V / 50 Hz or 110 v / 60 Hz
Dimensions 200 x 180 x 380 mm

Delivery Scope

Delivery contents
1 x PCE-MA 202 wood moisture meter
1 x wind protection shield
1 x sample pans
1 x power supply cord
1 x sample cup holder / handle
1 x 100 g weight in plastic box
1 x user manual
