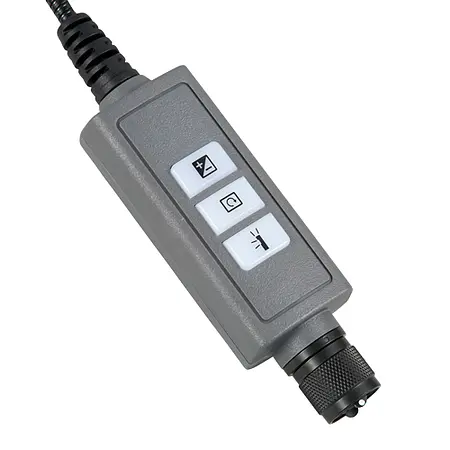

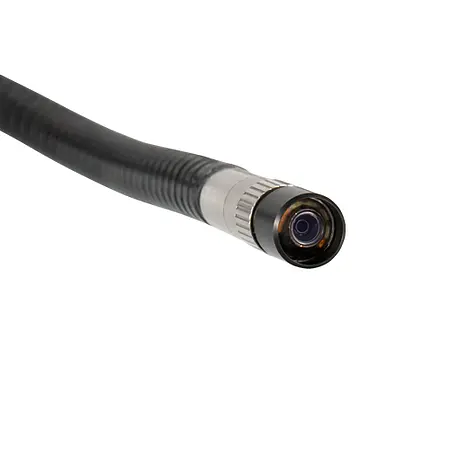

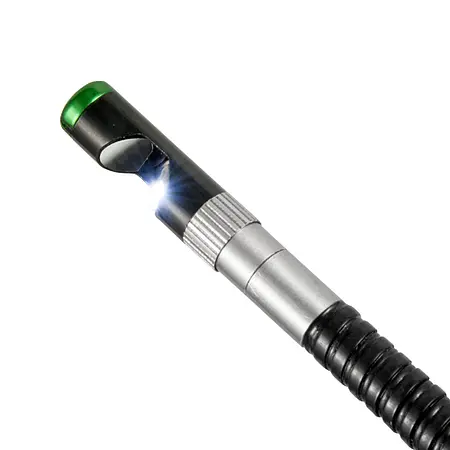

The borescope cable PCE-VE-N-SC1-HR is a semi-rigid, 1 m long borescope cable with HighRes function. The HighRes function offers the user various possibilities in its application. In addition to the double resolution of 640 x 480 pixels compared to the standard borescope cable, the HighRes borescope cable has an image rotation and an automatic dimming function. This feature allows a glare-free image on the borescope monitor when using a mirror. The diameter is 5.5 mm. On the head different mirrors can be screwed on. Furthermore, the cable is semi-rigid. This means that the cable can be formed into a shape, which is then retained until the next shaping. The camera head is splash-proof to IP65.
Camera feature | Front camera (mirror optionally available) |
Cable / head diameter | 5.5 mm (0.216") |
Cable length | 1 m (3.28 ft) |
Cable property | Semi-rigid |
Camera resolution | 640 x 480 pixel |
Protection | IP65 |
