Table Housing PCE-TGH450

Order no.: PCE-TGH450

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

Desktop enclosure for controller, display, paperless recorder / pedestals / 45 x 92 mm panel cutout / stackable

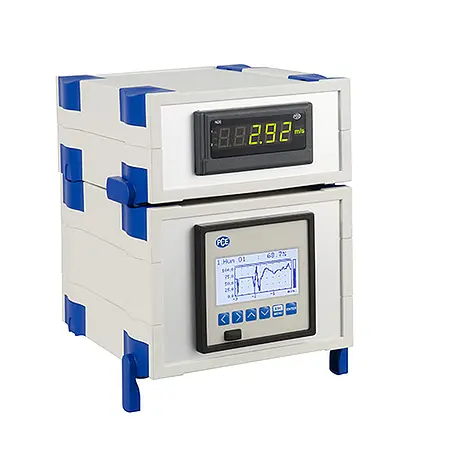

Table housing for controller, display, screen recorder with the control panel cutout 45 x 92 mm. The table housing is supplied with an aluminum panel with a matching cutout. The table housing has mounting feet at the front. This makes it possible to conveniently read the measured values from the built-in mounting devices. Several stacking boxes can be stacked on the upper side without slipping.

Highlights

- 45 x 92 mm cutout
- Plastic housing
- Mounting feet
- Aluminum front panel
- Stacking cavities in the cover
- Easy installation

Specification

Technical specification
Control panel cutout	45 x 92 mm / 1.7 x 3.6 in
External dimensions	178 x 65 x 197 mm / 7 x 2.5 x 7.7 in(W x H x D)
Built-in depth	Max. 186 mm / 7.3 in
Housing material	ABS
Front panel material	Aluminium
Weight	Approx. 300 g / 10.5 oz

Delivery Scope

Delivery
1 x Table housing PCE-TGH 450
