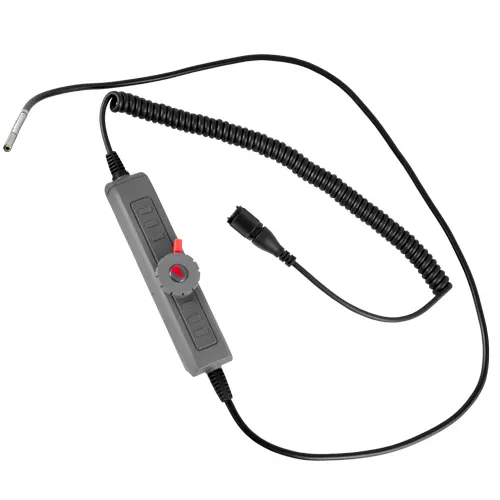

Two-Way Articulating Camera Cable for PCE-VE Series

Order no.: PCE-VE-2W3-HR

GTIN (EAN):

Description

PCE-VE-2W3-HR is a two-way articulating Hyperion camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.

***Attention: NOT compatible with the VE 200 Series!***

Highlights

- 6 mm diameter
- 3 meters long
- 640 x 480 pixel resolution
- IP 67 international / ingress protection rating

Specification

Cable length: 3 m
Functions on the control unit of the cable: Lighting improve, image rotation through 360 ° in 90 ° increments, lighting adjustment for mirror use, camera head lock, keylock
Lighting: 3 white LEDs on the camera head
Length of the camera head: Approx. 20 mm
Material of the camera head: Stainless steel
Diameter of camera head: 6 mm
Resolution: VGA (640 x 480 pixel)
Depth of cut: 10 to 60 mm
Working and storage temperature: -20 ... + 60 ° C
Protection class: IP67
Video output: NTSC
Viewing angle: 135 °
Dimensions of the control unit: 228 x 35 x 53 mm
Weight: Approx. 400 g

Delivery Scope

1 x PCE-VE-2W3-HR two-way articulating Hyperion camera cable
