USB Memory Adapter

Order no.: PCE-USM
GTIN (EAN): 4250348722164
US$ 198.00
ex. VAT, ex. delivery costs
:
4250348722164
PCE-USM
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Data logger adapter RS232 to USB / TXT format / Time - Date Stamp /
Query function / external power / 4GB USB Stick incl.

This RS232 - USB data logger can be connected to the serial Sub-D 9 interface of a device and store the received data on a USB stick in TXT format. The power supply of the RS232 - USB data logger is carried out by an external power adapter which is included. The RS232 - USB data logger can store received data with time and date stamp, orautomatically query data in configurable time intervals.

The query commands and other settings can be easily changed in a .txt format and with the help ofa configuration file,transferred via the USB stick, andplayed on theRS232 - USB data logger. The RS232 - USB data logger can always save the data in the same folder or create a new folder but always after the USB flash drive has been removed from the adapter and is added again.

Highlights

- TXT Format
- Query commands adjustable
- Query cycle adjustable
- Internal clock for time / date stamp
- External power supply
- USB stick incl.

Specification

EntranceSub-D 9 Male
Pin 2 - TxD transmit data
Pin 3 - RxD receive data
Pin 5 - Ground
ExitUSB A socket
Storage formatTXT
Memory functionManual (stores received data)
Automatic (queries data fromitself)
Memory4 GB USB Flash Drive
for up to 64,000,000 Records
(date / time / weight / unit)
Power supply12 V / 1.4 A power adapter included
Dimensions65 x 45 x 25 mm (without USB Stick)
Weight50 g (without power supply)

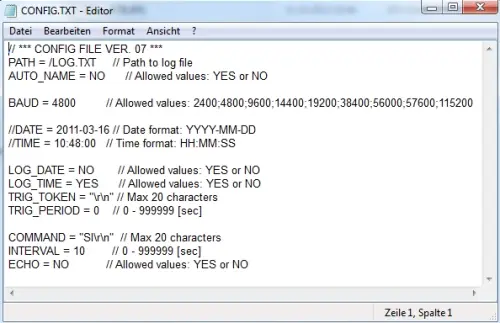

This is the configuration file for the RS232 USB data logger. This file is easily changed in the editor and played on the USB stick (see instructions). After the USB flash driveis put back into theRS232 USB data logger, it takes over the settings.

Delivery Scope

1 x RS232 - USB data logger
1 x 4 GB USB Stick
1 x power supply
1 x user manual
