Compact Balance PCE-MS PP150-1-60x70-M

Order no.: PCE-MS PP150-1-60x70-M
GTIN (EAN): 4250348728975

US$ 536.00
Verification for Trade / conformity assessment
ex. VAT, ex. delivery costs
:
4250348728975
PCE-MS PP150-1-60x70-M
Available in: 10 - 14 days
0.05 kg
Yes
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Compact Balance / Max. capacity 150 kg (330 lb) / Calibration value: 50 g / Incl. verification (conformity assessment)

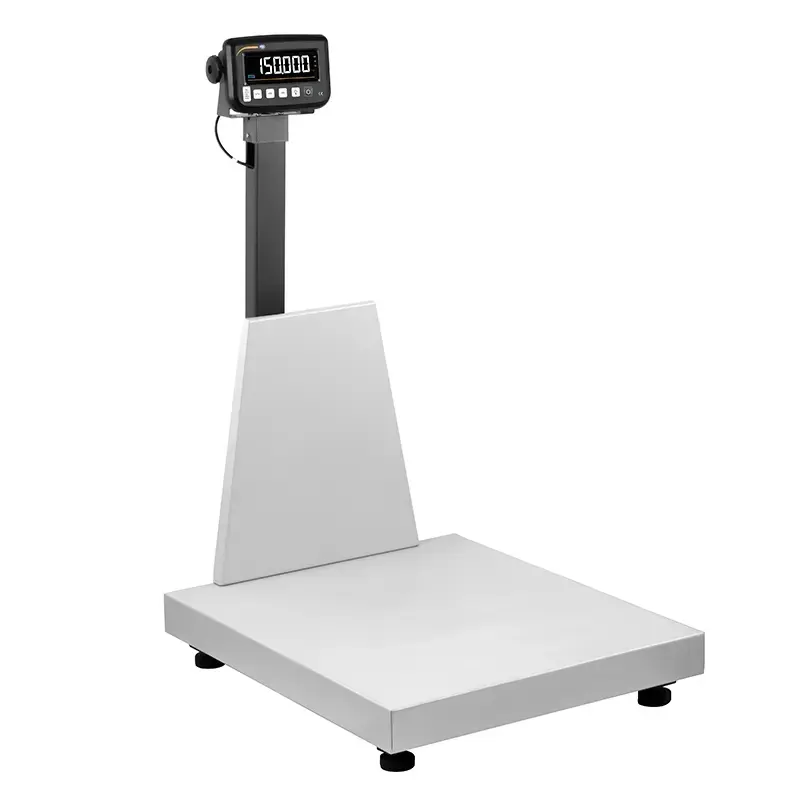

The compacte balance is assessed for compliance for the largest possible geographic area around the intended location of the scale. This conformity assessment for accuracy class M III replaces the first calibration. It is carried out for the location specified by the customer. The compact, calibrated compacte balance is powder-coated and therefore well suited for use under harsh conditions. A special feature is the removable, 46 cm / 18.1" high backrest made of 2 mm / 0.07" thick sheet steel, which makes it easier to weigh or fill sacks and other tipping goods. With the backrest mounted, the compacte balance has a usable platform area of ​​60 x 66 cm / 23.6 x 25.9". Without the backrest, the usable area increases to 60 x 70 cm / 23.6 x 27.5".

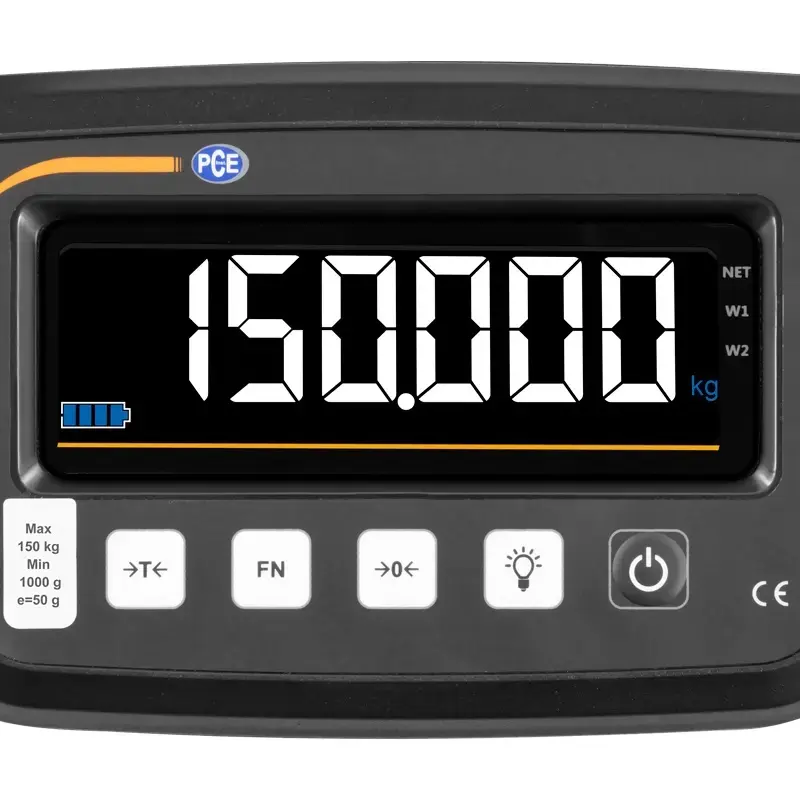

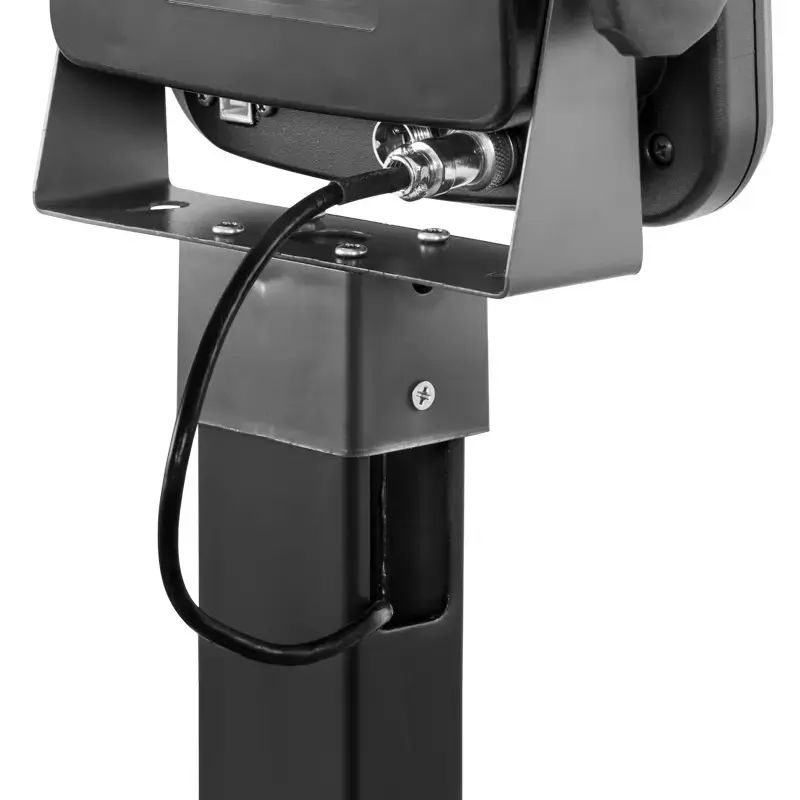

Thanks to the tripod, the compacte balance can be conveniently operated both when used on the floor and on the table. However, this tripod can be removed thanks to screw and plug connections, so that the compacte balance can also be used without a tripod. The cable length between the display and the weighing plate is about 1.5 meters / 4.9 ft. The angle of inclination of the display can be adjusted via the display bracket, so that it can be easily adapted to different working positions and viewing angles. The high-contrast inverted display has a digit height of 28 mm / 1.1", which means that the compacte balance can also be read from a distance. A transparent protective cover protects the plastic display from dirt.

The compacte balance is equipped with an internally installed lead-acid battery, but can also be operated via the external 7.8 volt mains power adapter. In battery mode, an operating time of up to 25 hours can be achieved, which can be significantly extended by using the battery saver function. The compacte balance has a bidirectional / USB-B interface with which weighing values ​​can be passed directly to a printer or computer.

Specification

Scale type
Single-range scale
Weighing range [Max] 150 kg / 330 lb
Resolution [d] 50 g / 1.7 oz
Weighing unit kg
Calibration value [e]
50 g / 1.7 oz
Verification class [e]
M III
Minimum load [min] 1 kg / 2.2 lb
Taring range multiple tare over the entire weighing range, automatic and manual tare deletion possible
Weighing plate [WxD] 600 x 700 mm / 23.6 x 27.5" / usable area with backrest 600 x 660 mm/ 23.6 x 25.9"
Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 0.59 x 1.1"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 820 g / 28.9 oz
external power supply 7.8 V / 1.2 A AC / 110 V - 230 V
Battery life
up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 200 kg / 440 lb / IP 65
Operating temperature   -10 ... + 40 °C / 14 ... 104 °F
Weight 29.5 kg / 65 lb

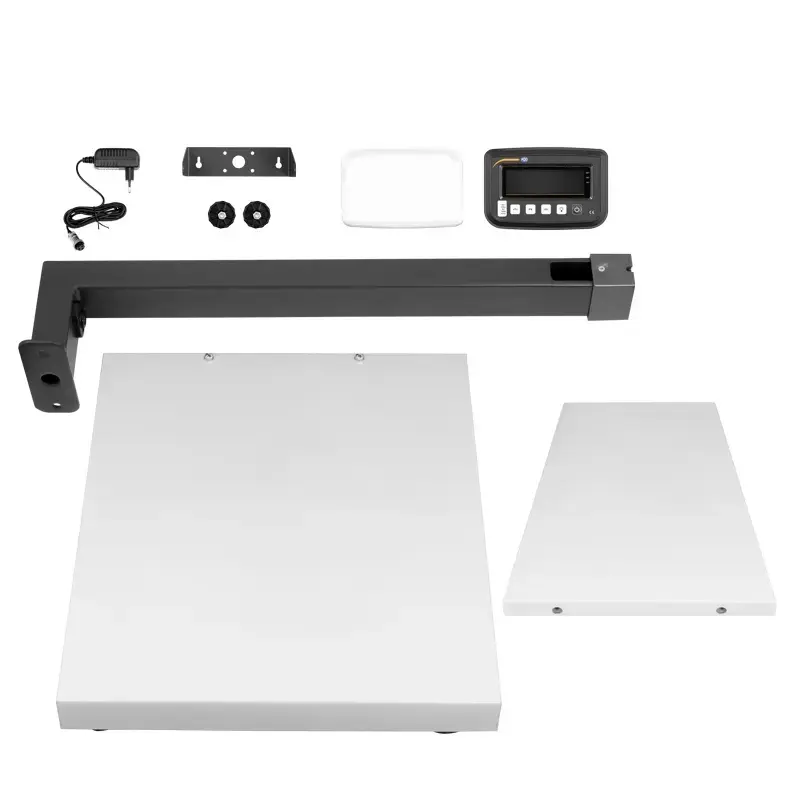

Delivery Scope

1 x Compact Balance PCE-MS PP150-1-60x70-M
1 x Mains power adapter
1 x Instruction manual
incl. verification (declaration of conformity)

The place of installation of the scales with Postcode (ZIP) / Town / Country must be specified
