Crane Scale PCE-CS 10000N

Order no.: PCE-CS 10000N
GTIN (EAN): 4250348714084
US$ 1,452.00
ex. VAT, ex. delivery costs
:
4250348714084
PCE-CS 10000N
Available in: 1-2 days
20 t
5 kg

Description

Crane Scale
10 Ton, 10000 kg, 22046 lb weighing capacity / Displays measurement values in kilograms (kg) or pounds (lbs) / Includes hook, shackle and remote control

PCE-CS 10000N is a digital battery-powered heavy-duty industrial crane, lifter, suspended or hanging scale, dynamometer, electronic balance or weighing hook that displays measurement values in kilograms (kg) or pounds (lbs). The scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.

Designed for industrial use, this robust hanging crane scale is backed by a two-year warranty against manufacturer defects.


Highlights

- Maximum weighing capacity: 10000 kg / 22046 lbs ≈ 10 Tons
- Resolution: 5 kg
- Tare range: 100% full scale
- Displays measurement values in kilograms (kg) or pounds (lbs)
- Comes factory calibrated (see accessories for optional ISO calibration)

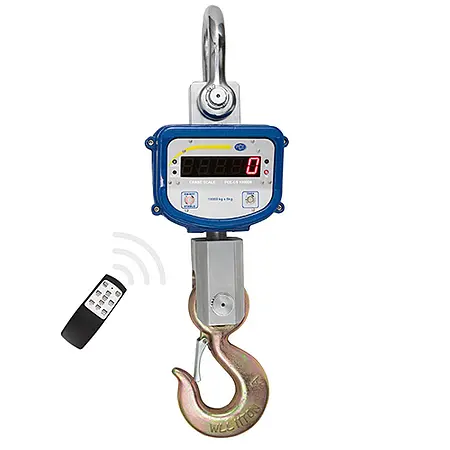

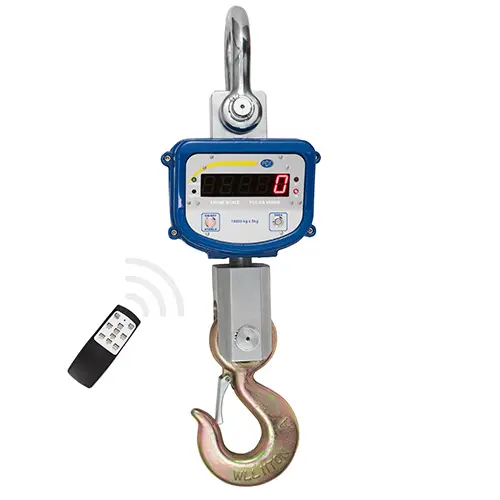

- Includes hook, shackle and remote control
- Features zero, tare, hold, sum / accumulation, battery voltage indication and adjustable brightness
  functions

Specification


Maximum capacity10000 kg / 22046 lbs ≈ 10 Tons
Minimum weight100 kg / 220.5 lbs
Resolution5 kg
StandardOIML class III
Zero range4 % full scale (FS)
Tare range100 % FS
Settling time≤ 10 seconds
Overload indication100 % FS + 9e
Max. safety load125 % FS
Ultimate load400 % FS

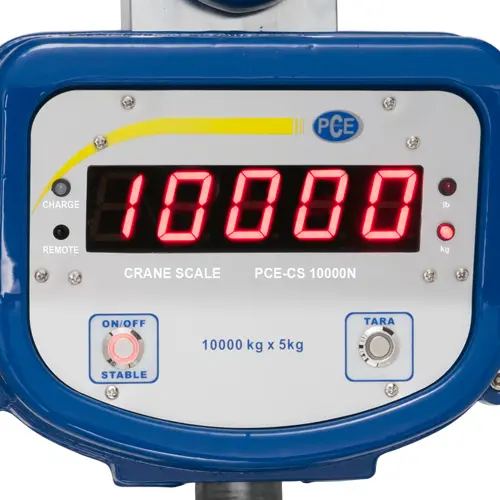

Display5-digit LCD/LED, 30 mm / 1.18" character height
Battery6 V / 7 Ah fully-sealed lead-acid battery
Battery life≥ 50 hours
Battery charger9 V DC / 1000 mA
Remote control range15 m / 49.2'
Remote control battery   2 x 1.5 V AAA batteries
Operating temperature-10 ... +40 °C / +14 ... +104 °F
Operating humidity≤ 85 % RH under +20 °C / +68 °F
Dimensions264 x 206 x 745 mm / 10.4 x 8.1 x 29.4"
Weight30 kg / 66.2 lbs

Delivery Scope

1 x PCE-CS-10000N crane scale with weighing hook, shackle and battery
1 x battery charger
1 x remote control with batteries
1 x user manual
