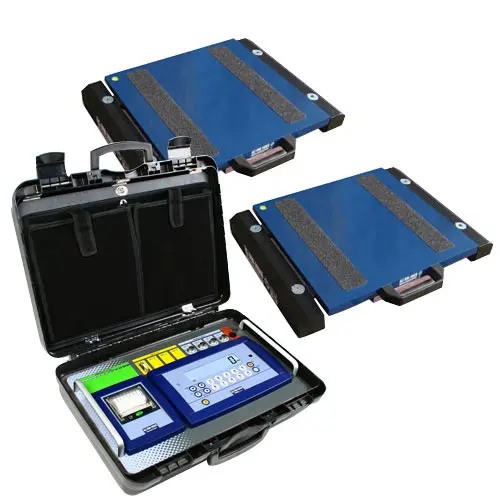

This portable floor scale consists of two weighing platforms and a carrying case with a built-in display and printer. Featuring connections for up to four weighing platforms (additional weighing platforms sold separately - see accessories), this floor scale calculates the total weight, wheel load and axle load of a vehicle. The floor scale also has a sum function for calculating vehicle weight plus trailer.
The load cell of the floor scale has an IP65 ingress protection rating and is suitable for outdoor use. The display of the floor scale is located inside the carrying case along with a printer. The digit height on the display is 25 mm / 0.98". Printouts include the time and date.
| Specifications of the floor scale | |
| Vehicle scale platform | |
| Weighing range per platform (wheel load) | 8000 kg / 17636 lbs / 8.8 T |
| Readability | 5 kg / 11 lb |
| Repeatability | 10 kg / 22 lb |
| Dimensions per platform | 300 x 400 x 58 mm / 11.8 x 15.7 x 2.3" |
| Protection class of the load cells | IP65 |
| Housing | robust aluminum housing |
| Connection cable length | ca. 10 m / 32.8 ft |
| Weight per platform | ca. 14.5 kg / 32 lbs |
| Overall dimensions | 400 x 410 x 58 mm / 15.7 x 16.1 x 2.3" |
| Vehicle scale display | |
| Display | LCD display with backlight |
| Digit height | 25 mm / 0.98" |
| Power supply | rechargeable battery |
| Working time | ca. 10 hours |
| Charging time | ca. 8 hours |
| Connection possibility | up to 4 weighing platforms |
| Internal printer | all weight values including time and date |
| Weight | ca. 5 kg / 11 lb |
| Dimensions | 325 x 460 x 170 mm / 12.8 x 18.1 x 6.7" |
