Hanging Scale PCE-DDM 5WI-ICA Incl. ISO Calibration

Name: Hanging Scale PCE-DDM 5WI-ICA Incl. ISO Calibration
Brand: PCE Instruments
SKU: 5948620
Price: 1724 USD
Availability: InStock

Order no.: PCE-DDM 5WI-ICA

GTIN (EAN):

Variants

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

ISO Calibration Certificate CAL-P-5T

US$ 333.00

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

US$ 1,881.00

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

US$ 1,798.00

Description

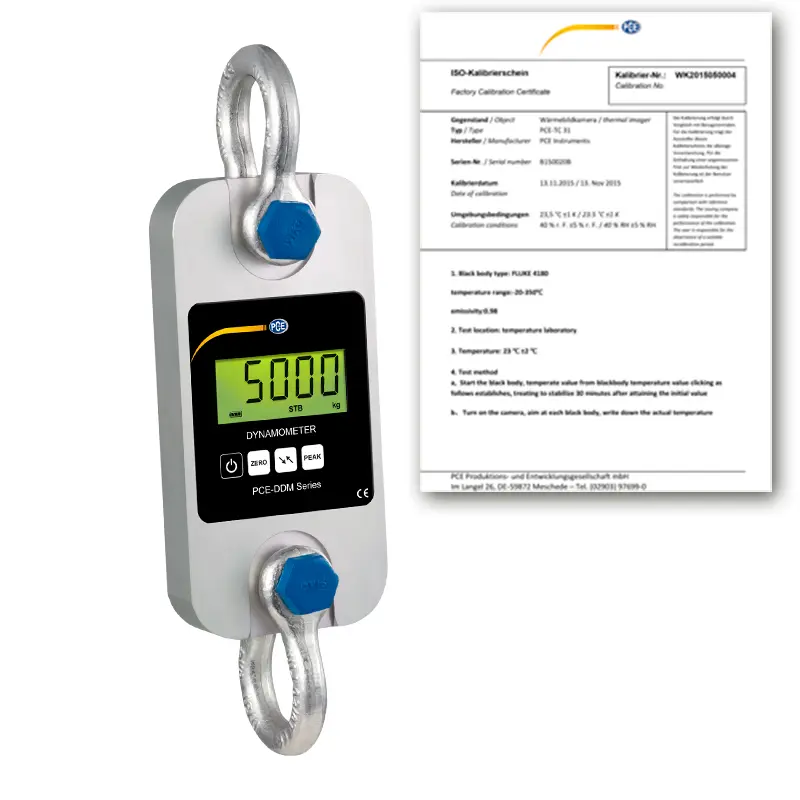

Hanging Scale incl. ISO calibration certificate
Max. capacity up to 5 tons / Peak hold, sum and tare functions / Includes shackles, protective carrying case and two-year warranty against manufacturer defects

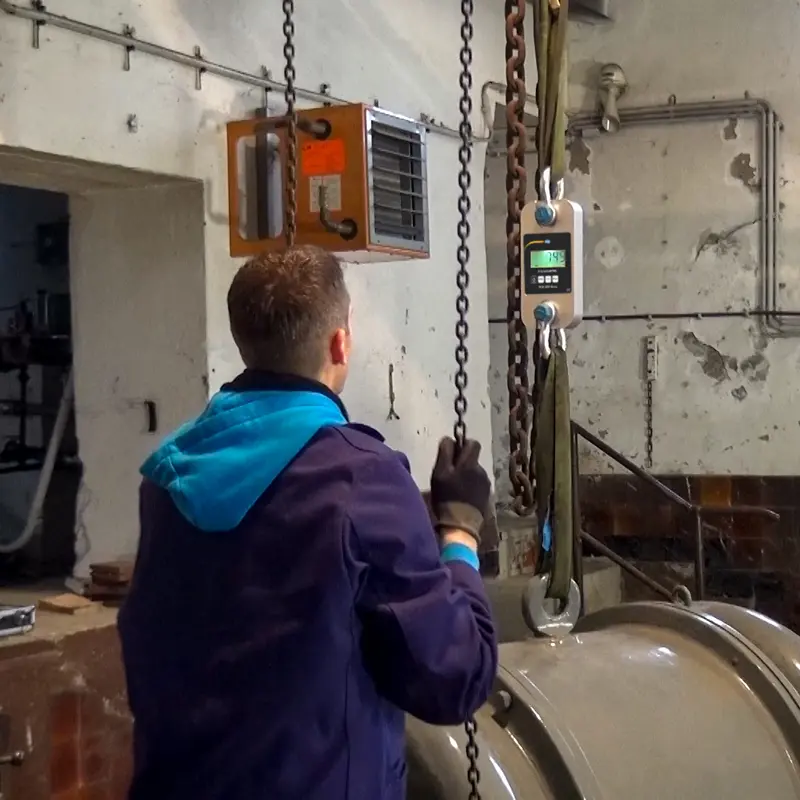

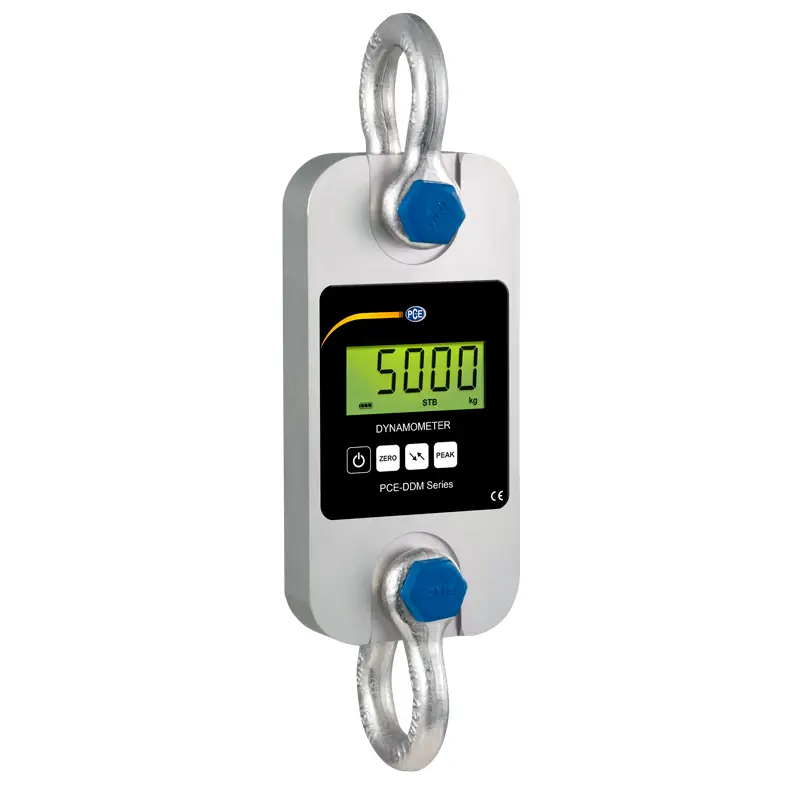

PCE-DDM 5WI is a rugged hanging scale designed to weigh large hanging loads. PCE-DDM 5WI is also a durable digital dynamometer specially crafted to measure strong tensile forces. This high-capacity device is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. Each PCE-DDM 5WI is manufacturer calibrated, but can be certified to ISO standards for an additional fee (see accessories for details).

Despite its high capacity and rugged durability, the PCE-DDM 5WI is a compact and portable device with a low net weight. The PCE-DDM 5WI has many useful practical features including peak hold, tare, sum and the ability to select different units of measurement such as kg / t / lbs / N / kN.

Please note that this device is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FM series force gauges (visit similar items tab for details).

Highlights

- High capacity up to 5 t / 11023 lbs / 5000 kg / 50 kN
- Heavy duty, rugged and durable yet compact and portable
- Selectable units of measurement: kg / t / lb / N / kN
- Peak hold, sum and tare functions
- Long battery life - approx. 50 hours of continuous use at full charge
- Includes shackles, protective carrying case and two-year warranty against manufacturer defects
- Manufacturer calibrated, but can be certified to ISO standards for an additional fee
(see accessories for details)

Specification


Maximum capacity	5 t / 11023 lbs / 5000 kg / 50 kN
Resolution	4 lbs / 2 kg / 20 N
Minimum capacity	88 lbs / 40 kg
Device weight (with shackles)	6.6 lbs / 3 kg / (13 lbs / 6 kg)
Accuracy	± 0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 0.9" / 22 mm digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature range	-10° C ... +40° C / +14° F ... +104° F
Power supply	3 x 1.5 V AA batteries
Battery life	Approx. 50 hours of continuous use at full charge

Technical drawing

Technische Zeichnungen der Zugmesslasche / Kraftmesslasche PCE-DDM

A	B	C	D	Ø E	H	Material
285 mm 11.2"	123 mm 4.8"	57 mm 2.2"	210 mm 8.3"	58 mm 2.3"	405 mm 15.9"	Aluminum

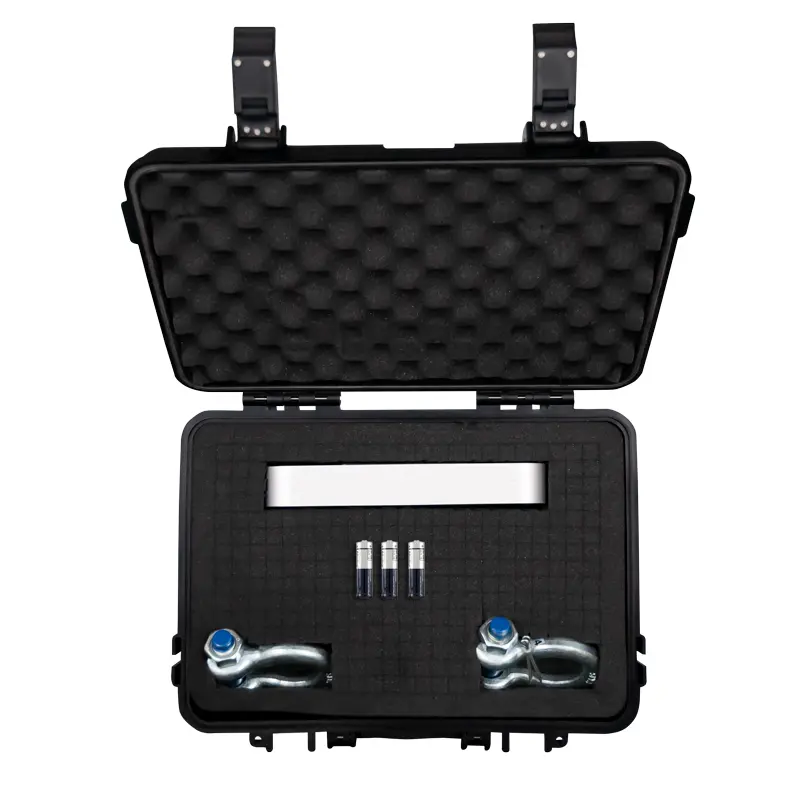

Delivery Scope

1 x PCE-DDM 5WI-ICA hanging scale
2 x shackles
3 x 1.5 V AA batteries
1 x user manual
1 x protective carrying case
1 x ISO calibration certificate

Note: This model does not come with a remote control. If a remote control is desired, please see the PCE-DDM 5 (visit similar items for details).
