Laboratory Balance for Paper Basis Weight PCE-DMS 200

Name: Laboratory Balance for Paper Basis Weight PCE-DMS 200
Brand: PCE Instruments
SKU: 2130720
Price: 322 USD
Availability: InStock

Order no.: PCE-DMS 200

GTIN (EAN): 4250348700728

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

GSM Balance Sample Cutter MPC-3

US$ 159.00

ISO Calibration Certificate for PCE-DMS Series

US$ 153.00

Description

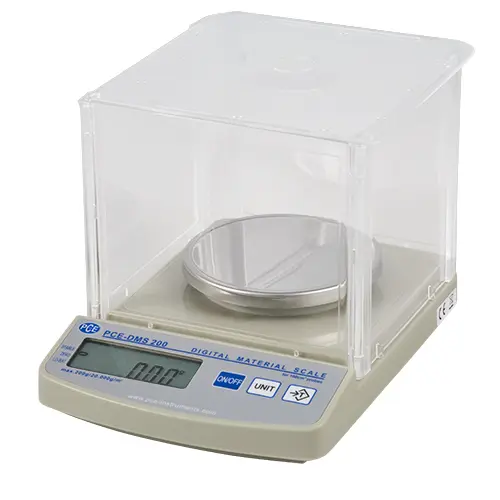

PCE-DMS 200 Laboratory Balance for Paper Basis Weight

10 cm round pan for weighing 11 cm circle cut samples

PCE-DMS 200 is a laboratory balance for paper basis weight used to accurately determine the GSM basis weight (in relation to a square meter of material) of paper, cardboard, fabric, textiles and more directly in g, g/m², oz or oz/yd². Weighing units can be changed with just the push of a button.

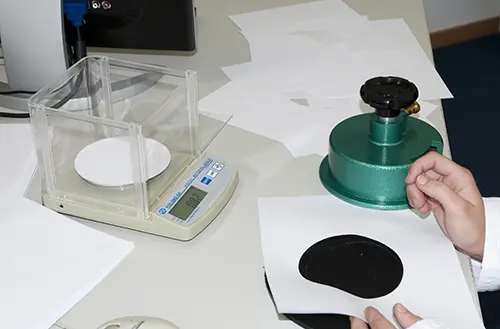

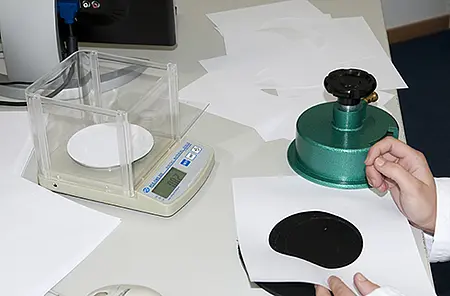

The PCE-DMS 200 paper basis weight scale is used primarily by paper and textile production companies. The paper and textile industries perform similar quality control testing by weighing a 11 cm round circular sample of paper or fabric. The PCE-DMS 200 paper basis weight scale makes this test process quick and easy, especially when using the optional 11 cm circle sample cutter accessory (see accessories tab for details).

Highlights

- 10 cm round pan for weighing 11 cm circle cut samples
- Weighing units can be changed with just the push of a button
- Easy-to-read 15 mm (0.6") backlit LCD display
- Automatically powers off (saves battery life / function can be disabled)
- Automatic calibration function (using external weight - not included)
- Optional ISO calibration certificate (see accessories tab for details)

Specification


Weighing ranges	0 ... 200 g, 0 ... 20,000 g/m², 0 ... 7.05 oz or 0 ... 589.87 oz/yd²
Readability	1 g/m² or 0.01 g
Repeatability	0.02 g
Linearity	± 0.02 g
Stabilization time	3 seconds
Calibration	Automatic function (using external weight - not included)
Display	15 mm (0.6") LCD / backlit
Power supply	230 V / 50 Hz (via 12 V net adaptor) or 6 x AA batteries
Housing	ABS plastic
Wind shield	Plastic / Approx. 145 x 145 x 120 mm (5.7 x 5.7 x 4.7")
Pan size	Round, 10 cm (Approx. 4") diameter
Overall dimensions	Approx. 145 x 210 x 40 mm (5.7 x 8.3 x 1.6")
Net weight	Approx. 1 kg (2.3 lb)
