Laboratory Scale PCE-DMS 1100-ICA Incl. ISO Calibration Certificate

Order no.: PCE-DMS 1100-ICA
GTIN (EAN): 4250348725776
US$ 616.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348725776
PCE-DMS 1100-ICA
Available in: 10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

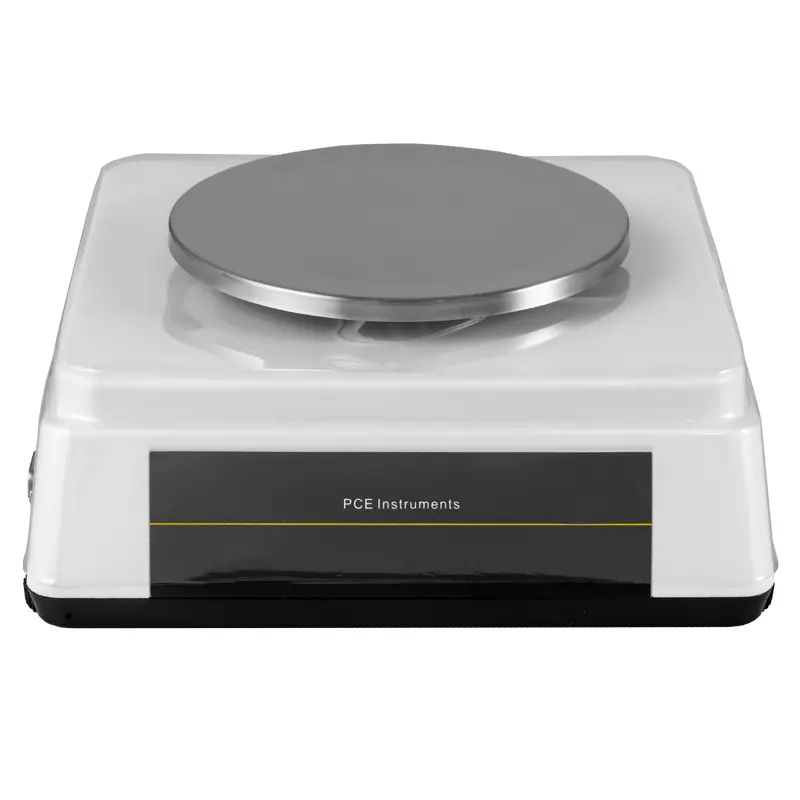

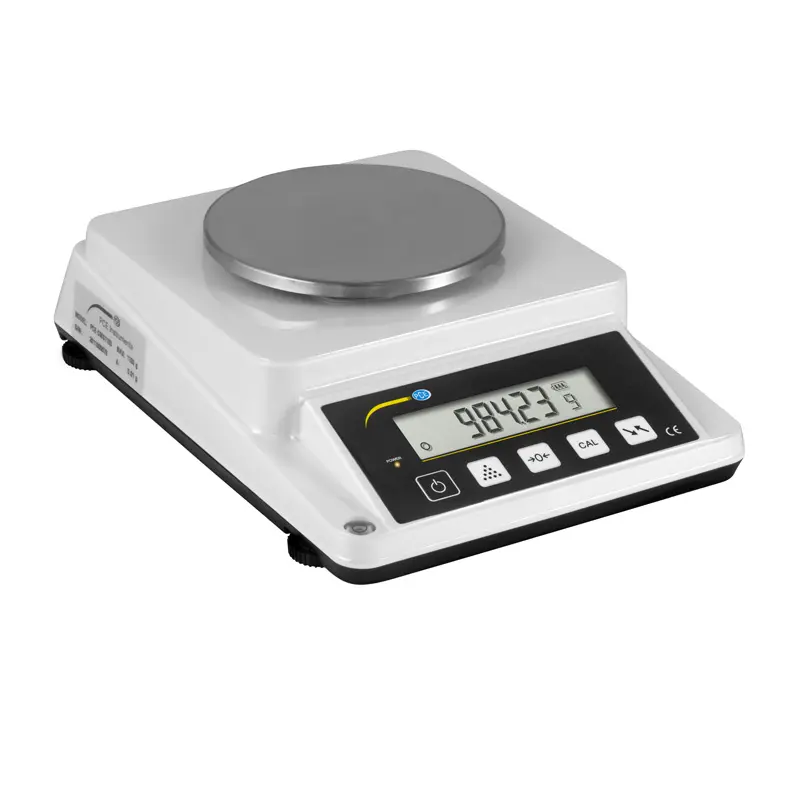

Laboratory scale PCE-DMS 1100-ICA incl. ISO calibration certificate
Paper scale with direct display in g / m² Paper scale with RS-232 interface / Backlight / Piece counting function Measurement of basis weight / Fabric balance / Also suitable for mobile use

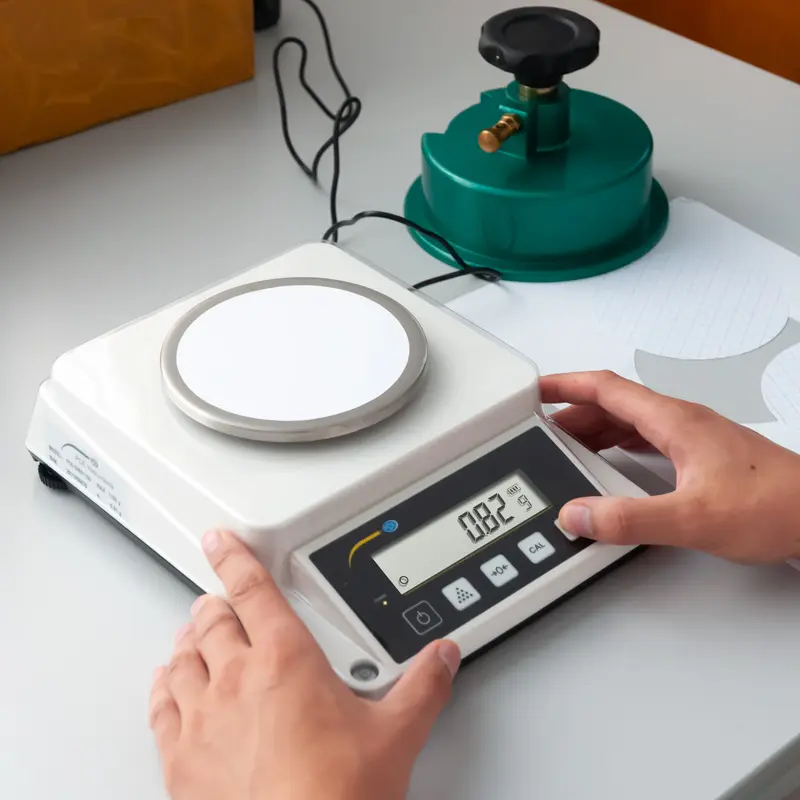

The paper scale PCE-DMS 1100 was specially designed for measuring the basis weight. Thanks to this paper scale, basis weight measurements can be carried out and evaluated within a very short time. With this paper scale, you can also determine, for example, the grammage of paper, cardboard or various textiles exactly. Weighing up to 1100 g at a resolution of 0.01 g can be carried out depending on the paper balance.

In addition to the basis weight measurement, the paper scales can also transfer the measured data to a PC. This is possible with the help of the installed RS-232 interface. The included power supply allows stationary use of the paper scales. Alternatively, the paper scale can also be used for mobile use. For this 3 x 1.5V AA batteries can be used. The optionally available paper sample level sampler ensures that the same samples are always used for basis weight determination.

Highlights

- High precision

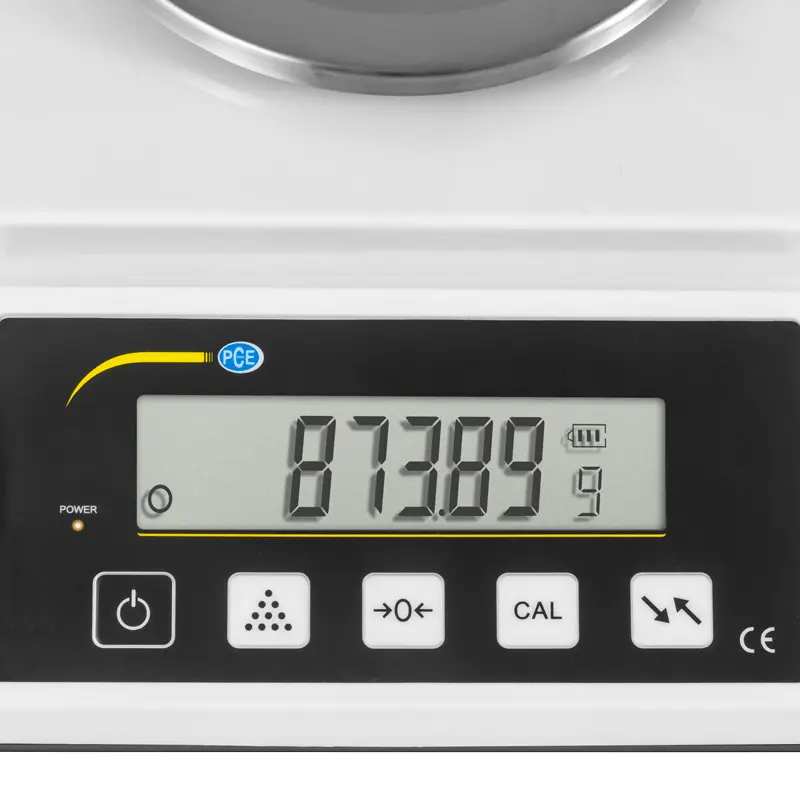

- Display with backlight
- RS-232 interface
- Piece counting function, weight per unit area
- Battery operation for mobile use

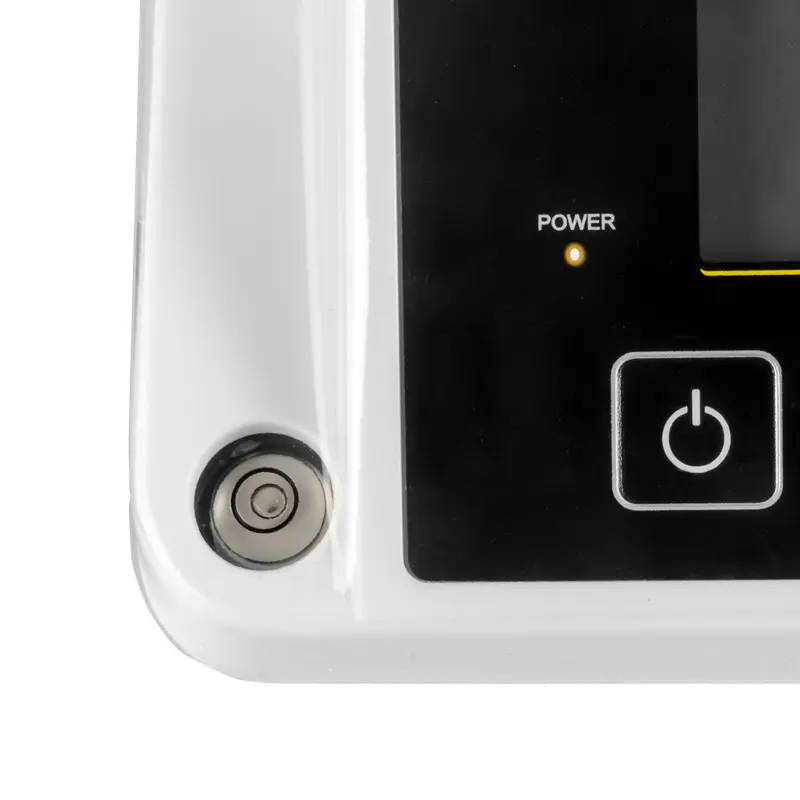

- Alignment of the balance with dragonfly

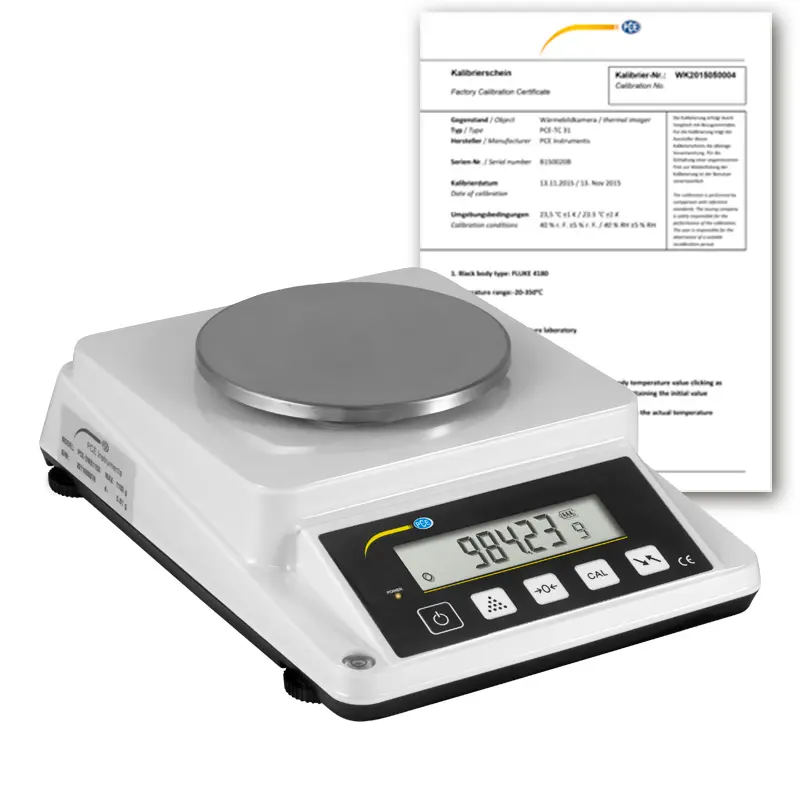

- Incl. ISO calibration certificate

Specification

Measuring range 0 ... 1100 g / 0 ... 110,000 g / m²
Resolution 0.01 g / 1 g / m²
Repeatability ± 0.02 g
Linearity ± 0.03 g
Stabilization period <3 s
Operating conditions 17.5 ... 22.5°C / 63.5 ... 72.5°F, 85% rh non-condensing
Interface Serial RS232
Power supply battery 3 x 1.5V AA
Power supply power supply Primary: 100 ... 240 V, 50/60 Hz
  Secondary: 6V, 500-mA
Dimensions of the support surface         270 x 200 x 80 mm / 10.6 x 7.9 x 3.1
Weight 2 kg / 4.4

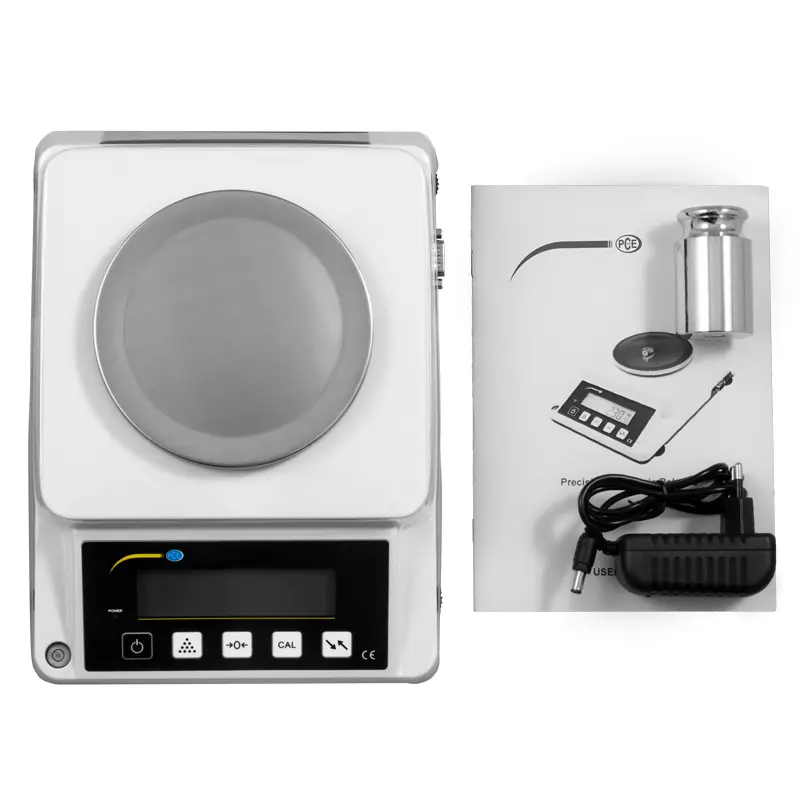

Delivery Scope

1 x Laboratory Scale PCE-DMS 1100
1 x Test weight
1 x Power supply
1 x User manual
1 x ISO calibration certificate
