Legal for Trade Balance PCE-SD 30C

Order no.: PCE-SD 30C
GTIN (EAN): 4250348712264

US$ 851.00
Verification for Trade / conformity assessment
ex. VAT, ex. delivery costs
:
4250348712264
PCE-SD 30C
Available in: up to 10 working days
Benchtop / Platform
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Legal for Trade Balance / platform 400 x 500 mm or 500 x 600 mm  / bi-directional RS- 232 interface /
item counter / Summation function / RS-485, analogue outputs 4-20 mA, 0 - 10 V optional
The calibratable counting scale is a solid calibratable platform scale that is reasonably priced. The calibration of the counting scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable counting scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable counting scale also has pedestals that can be alternated in their height, assuring a firm stand. The navigation display of the counting scale is placed on a stand mounted within a reachable height and fixed to the counting scale.


In order to assure an ideal readability of the display at all time, the display can be alternated in its angle. Functions that the calibratable counting scale features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable counting scale are: e.g. analogue output 4 ... 20 mA or 0 ...  10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.

Highlights

- Calibratable (delivery incl. calibration)
- Bi-directional RS-232 interface
- Unit counter
- Summation function
- Max. / min. display
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / net function
- Tare data storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contacts optional
- Analogue outputs optional (4-20 mA / 0-10 V)

Specification

Edition Measurement range Accuracy Calibration value minimal load* platform size

PCE-SD 30C

30 kg 10 g 10 g 200 g

400 x 500 mm




* the minimal load is defined here as the load above which the calibration authorities test their accuracy. The calibratable scale shows even lower weights, but these are not allowed to be used for custody transfer.
Calibration Class M III (is delivered calibrated)
Unit Counterthrough counting by reference value
Tare functionMultiple tare function for whole measurement range
InterfaceRS-232 bi-directional
Description of interface
RS-485, LAN and USB optional
DisplayLED with 20 mm digit height
Power Supply12 V / 1.4 A incl. adapter
IP CodeIP 54
Operational temperature- 10 °C ... + 40 °C

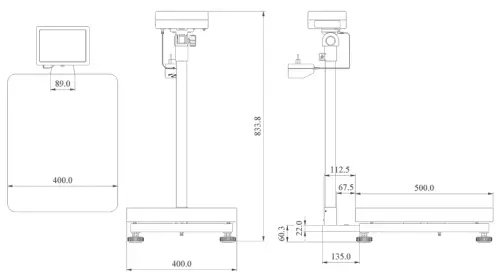

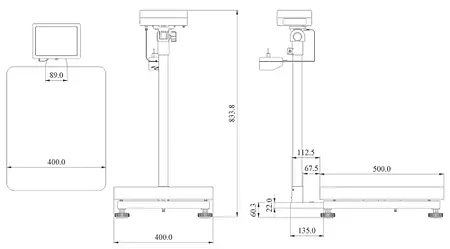

Diameters400 x 620 x 850 - 870 mm
Weightapprox. 12 kg

Delivery Scope

1 x Legal for Trade Balance PCE-SD 30C incl. calibration
1 x adapter
1 x instruction manual

Downloads
