Legal for Trade Balance PCE-SD 30SST C

Order no.: PCE-SD 30SST C
GTIN (EAN): 4250348712486

US$ 1,307.00
Verification for Trade / conformity assessment
ex. VAT, ex. delivery costs
:
4250348712486
PCE-SD 30SST C
Available in: up to 10 working days
Benchtop / Platform

Description

Legal for Trade Balance made entirely of stainless steel / weighing range up to 300 kg / IP67 - IP65 protection class / summation function / threshold-function / statistics function /
interface RS-232, RS-485, USB, LAN, Analogue 4-20 mA, 0-10 V, OC optional

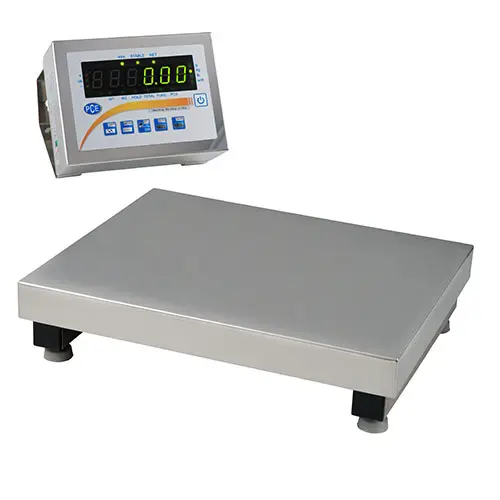

The waterproof animal weighing scale PCE-SD SST featuring a separate display can be MIII calibrated and will be delivered calibrated. The load cells of the waterproof animal weighing scale are IP67 protected, while the display device is made of an IP65 protected enclosure. Thus the waterproof animal weighing scale proves to be ideal for high-moisture locations or such locations that require a high hygienic standard. With the appropriate equipment that is optionally purchasable, you can also use the waterproof animal weighing scale on ships at sea.

Standard functions of the waterproof animal weighing scale are: summation function, counting function, statistics function, mixing on formula, percentage weighing function, animal weighing function, alarm on trespassing thresholds etc. Due to its high IP protection the waterproof animal weighing scale does not feature any interface. But optionally interfaces can be purchased for the waterproof animal weighing scale, e.g. RS-232, RS-485, USB, LAN, OC contactors, analogue interfaces 4-20 mA or 0-10 V.

Highlights

- Calibrated according to calibration class MIII
- Completely made of stainless steel IP67-IP65
- Unit Counter
- Summation function
- MAX. / MIN. indication
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / Net display
- Tare storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contactors
- Analogue output optional 4-20 mA / 0-10 V

Specification

Technical specifications of the Waterproof Animal Weighing Scale PCE-SD SST Series

Model

weighing range

resolution

calibration value

Min.*

platform size

PCE-SD 30SST C

30 kg

10 g

10 g

200 g

400 x 500 mm


* The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.
Calibration ClassM III (is delivered calibrated)
Unit Counter Functioncounting by reference values
Tare functionmultiple taring covering the whole measurement range
Interfaceoptional bi-directional RS-232, USB, LAN
datasheet on interface
as well as analogue output 4-20 mA, 0-10, OC
DisplayLED with 20 mm digit height
Cable Lengthfrom platform to display
Power Source~230V, 5Hz, 8VA (schuko plug)
Protection ClassIP 67 cell / IP65 display
Operational Temperature-10 °C ... +40 °C
Weightplatform 400 x 500 x 120 mm / 17 kg
platform 600 x 500 x 135 mm / 25 kg

Delivery Scope

1 x Legal for Trade Balance PCE-SD 30SST C
1 x display device
1 x instruction manual
