- Key input simulation in active cursor position
- Storage option as a TXT file
- Connection via RS232 / USB / LAN
- Time and date stamp
- Statistics function Basic = PC balance software / 1 license for using only one balance

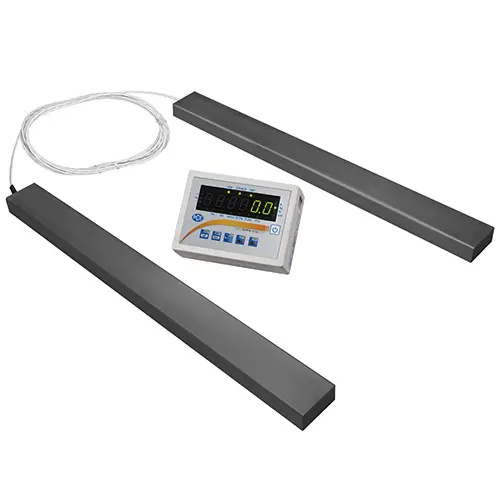

Legal for Trade Scale up to 300 kg / Resolution from 0.1 kg
/ Robust industrial design / Summing function / Counting function / Checkweighing function
/ RS-232 interface /
Optional 4-20 mA analogue output or LAN interface
|
|||||||||||||||
* The minimum load is the load from which the calibration authority checks the accuracy. The calibrated balance bars also indicate smaller weights, but these may not be used in legal calculations. |
|||||||||||||||
Calibration | Calibratable to class M III (to be calibrated) | ||||||||||||||
Tare range | Multiple tare over the entire weighing range | ||||||||||||||
Settling time | <3 s | ||||||||||||||
Display | LED with 20 mm digit height | ||||||||||||||
Weighing units | kg / piece / lb | ||||||||||||||
Interface | bi-directional RS-232 optional USB or LAN interface |
||||||||||||||
Operating temperature | -10 ... +40 °C | ||||||||||||||
Protection | IP 54 | ||||||||||||||
Power supply | ~230V, 50Hz, 8VA | ||||||||||||||
If other dimensions, cable lengths or tapped holes are required, we can also realize these with our calibrated load beam. Please contact us. |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
PCE-SOFT-Procell is a software package that runs in the background and is used to transmit the weight data from the scale or balance to a program where keyboard input is possible — such as Microsoft Excel, Word, UPS, DHL or SAP — as keyboard input is simulated by the software. (Note: If you only have a USB interface or port on your computer, you must use an RS-232 to USB adapter.)
