- Key input simulation in active cursor position
- Storage option as a TXT file
- Connection via RS232 / USB / LAN
- Time and date stamp
- Statistics function Basic = PC balance software / 1 license for using only one balance

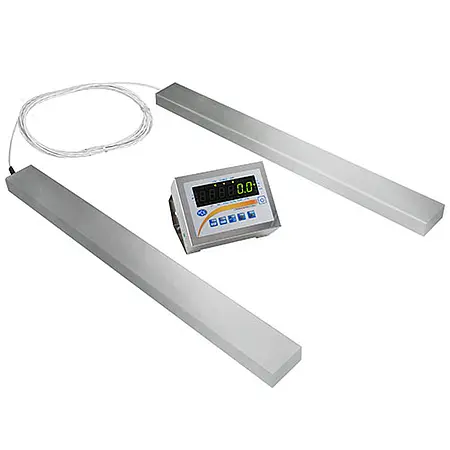

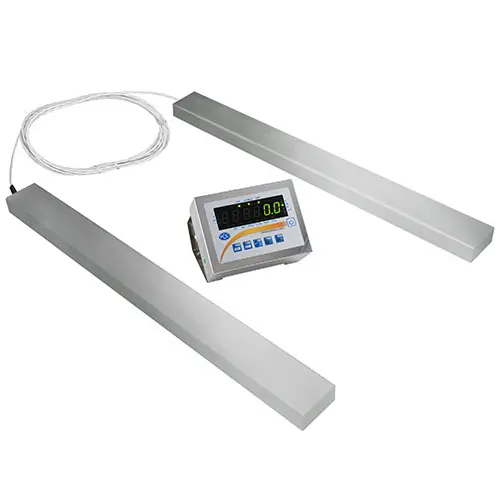

Legal for Trade Scale up to 6 t / Resolution from 0.1 kg
/ Flexible use /
Large range of functions / IP68 - 65 protection / Optionally with control interfaces
|
|||||||||||||||
* The minimum load is the load from which the calibration authority checks the accuracy. The calibrated stainless steel balance bars also indicate smaller weights, but these may not be used in legal calculations. |
|||||||||||||||
Calibration | Calibratable to class M III (to be calibrated) | ||||||||||||||
Tare range | Multiple tare over the entire weighing range | ||||||||||||||
Settling time | <3 s | ||||||||||||||
Display | LED with 20 mm digit height | ||||||||||||||
Weighing units | kg / piece / lb | ||||||||||||||
Interface | optional bi-directional RS-232, USB or LAN interface, as well as analogue output 4-20 mA, 0-10 V, OC |
||||||||||||||
Operating temperature | -10 ... +40 °C | ||||||||||||||
Protection | IP68 cells / IP65 display | ||||||||||||||
Power supply | ~230V, 50Hz, 8VA | ||||||||||||||
If other dimensions, cable lengths or tapped holes are required, we can also realize these with our calibrated load beam. Please contact us. |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
PCE-SOFT-Procell is a software package that runs in the background and is used to transmit the weight data from the scale or balance to a program where keyboard input is possible — such as Microsoft Excel, Word, UPS, DHL or SAP — as keyboard input is simulated by the software. (Note: If you only have a USB interface or port on your computer, you must use an RS-232 to USB adapter.)
