Multifunction Moisture Analyzer PCE-MA 202

Order no.: PCE-MA 202
GTIN (EAN): 4250348715203

US$ 1,254.00
ex. VAT, ex. delivery costs
:
4250348715203
PCE-MA 202
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

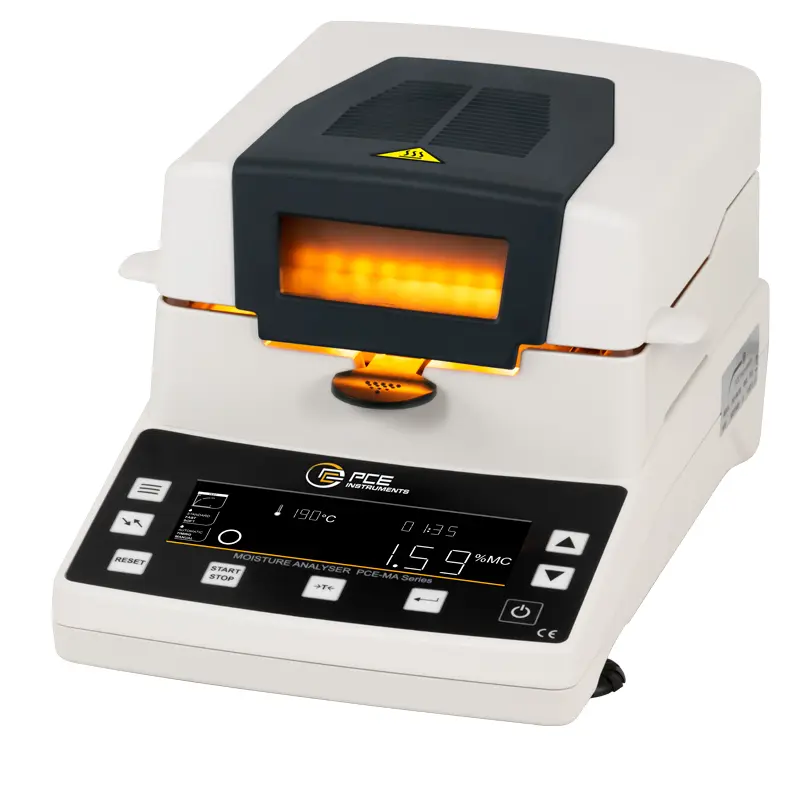

PCE-MA 202 Moisture Analyzer
Oven-drying moisture balance for weighing and halogen-heating samples to determine moisture content

PCE-MA 202 is an oven-drying moisture analyzer for weighing and heating material samples to determine moisture content. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the moisture analyzer or moisture balance dries the sample to be weighed, and then calculates the moisture content from the weight difference. The moisture analyzer can determine the smallest weight differences thanks to a readout, readability or resolution of 10 mg / 0.01 g / 0.1 %. The results are displayed on the large, easy-to-read LCD screen.

Up to 15 different drying programs can be stored in the memory of the moisture analyzer. Accordingly, the moisture analyzer is suitable for determining the moisture content of everything from food, biomass, pellets, pastes, animal feed, nuts, seeds, beans, lentils and legumes to soil, sand, ceramic clay, resin and brick materials. With the included 100 g weight, the moisture analyzer can be calibrated quickly and easily at any time.


Highlights

- Testing or weighing sample capacity: 200 g
- Readout, readability or resolution: 10 mg / 0.01 g / 0.1 %
- Halogen-heated oven or chamber for moisture determination
- RS-232 interface
- Memory for up to 15 drying programs
- Adjustable drying temperature and time
- Easy to use
- Calibration function for readjustment
- 100 g calibration weight included
- Large LCD screen with nine membrane keys

Specification


Testing or weighing sample capacity 200 g
Readout, readability or resolution 10 mg / 0.01 g / 0.1 %
Heating element Halogen lamp
Temperature range +40 ... +199 °C
Heating time 1 ... 99 min. adjustable
Moisture content measurement range 0 ... 100 %
Memory 15 drying programs
Interface RS-232 port
Display LCD, 9 membrane keys
Power supply 220 V / 50 Hz or 110 v / 60 Hz
Dimensions 200 x 180 x 380 mm / 7.87 x 7.09 x 14.96"
Weight Approx. 4.4 kg / 9.71 lbs

Delivery Scope

1 x PCE-MA 202 moisture analyzer
1 x wind protection shield
1 x sample pans
1 x power supply cord
1 x sample cup holder / handle
1 x 100 g weight in plastic box
1 x user manual
