NTEP Certified Scale PCE-MS PC150-1-65x95-M

Order no.: PCE-MS PC150-1-65x95-M
GTIN (EAN): 4250348729217
US$ 602.00
Verification for Trade / conformity assessment
ex. VAT, ex. delivery costs
:
4250348729217
PCE-MS PC150-1-65x95-M
Available in: 1-2 days
0.05 kg
Yes

Description

NTEP Certified Scale / Max. capacity 150 kg / Verification value: 50 g / Incl. verification (conformity assessment)

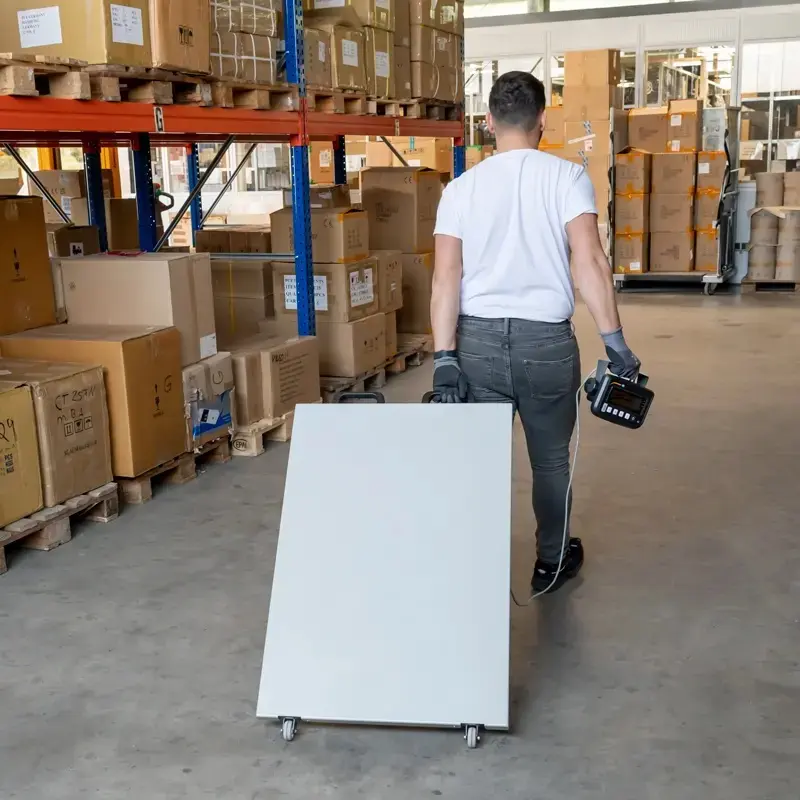

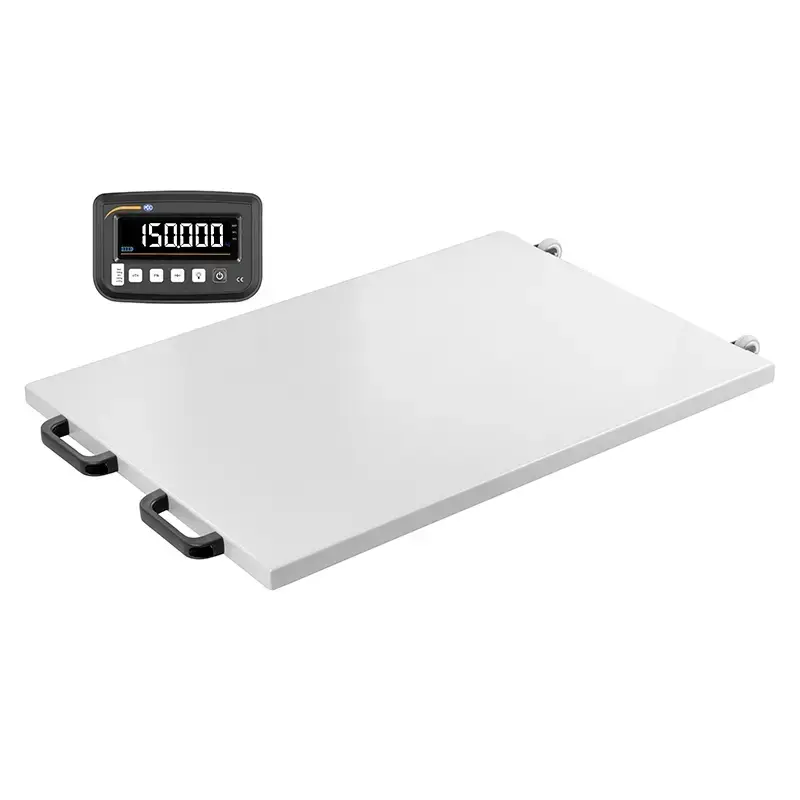

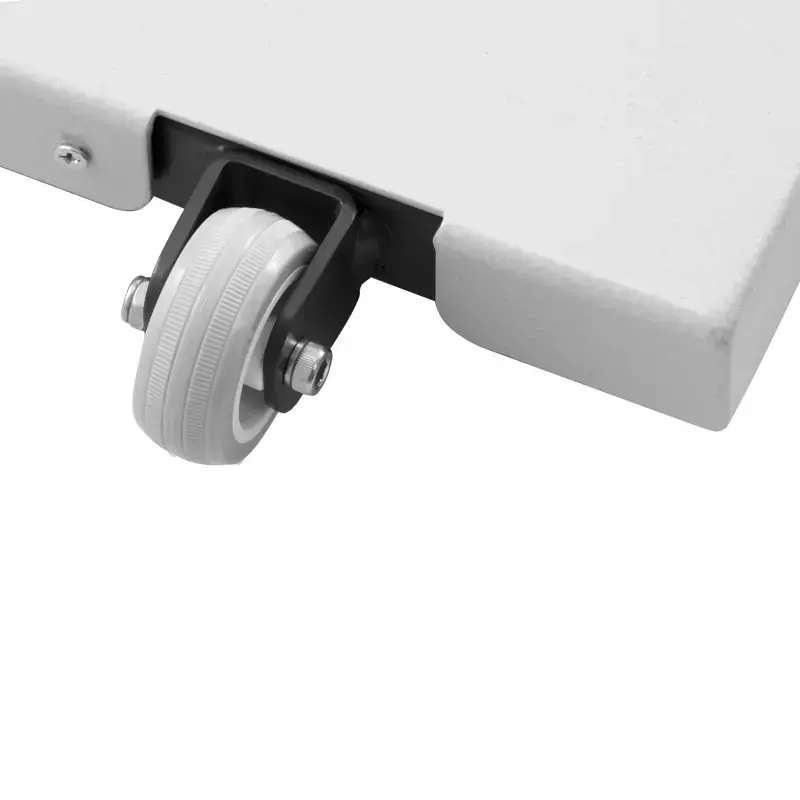

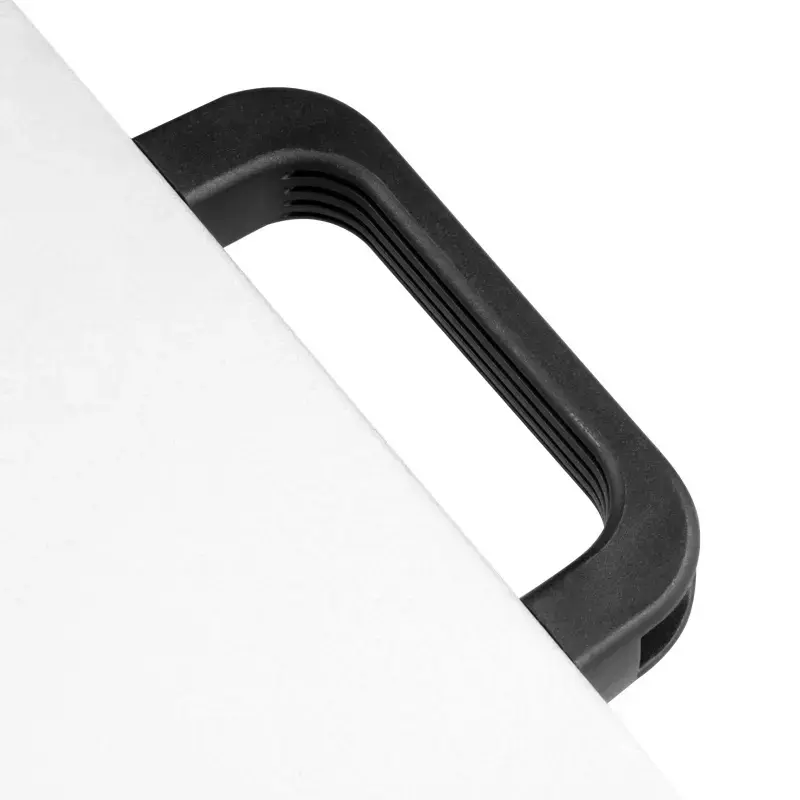

With a usable area of ​​65 x 95 cm, the NTEP certified scale is one of the largest mobile platform scales. Thanks to the construction with 4 load cells, the NTEP certified scale is also particularly flat. For the comfortable transport of the large platform, both transport rollers and handles are mounted that allow the NTEP certified scale to be pulled behind you.

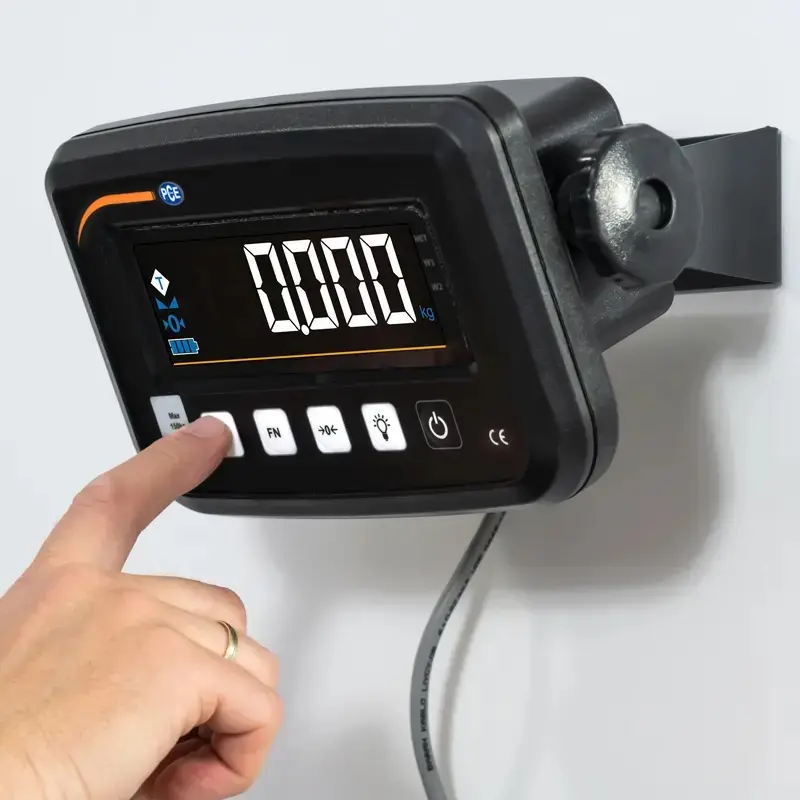

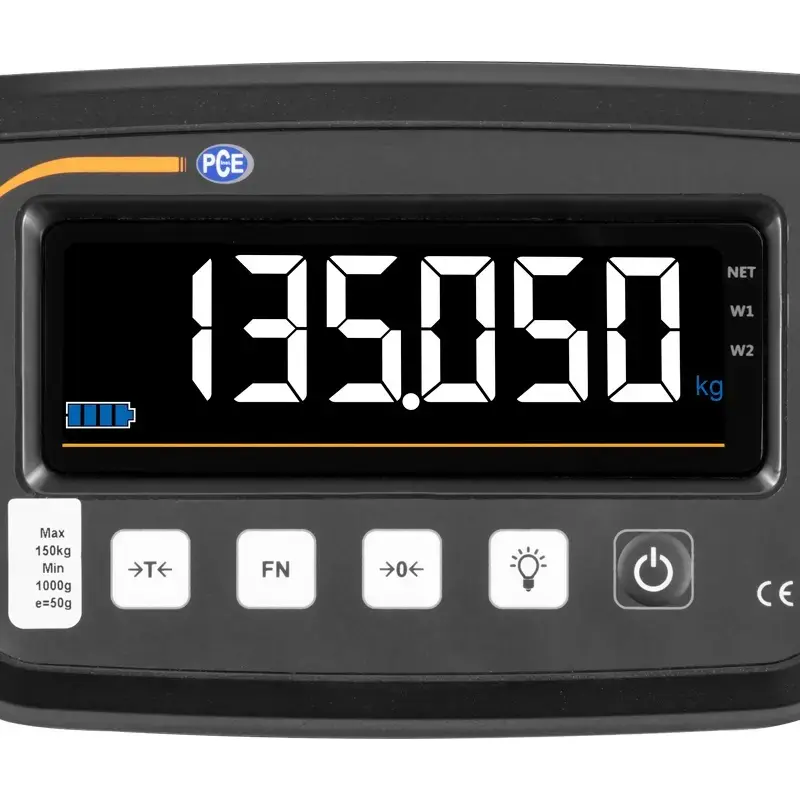

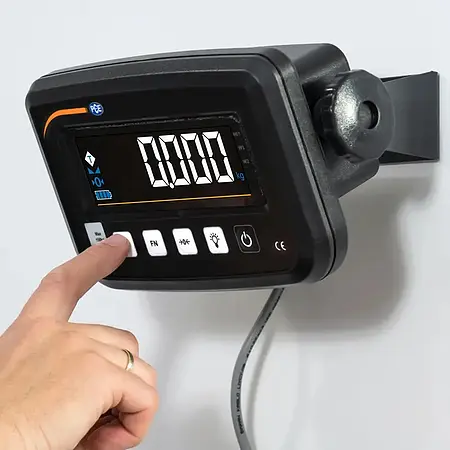

The NTEP certified scale has a display with an inverted display whose digit size is 15 x 28 mm. The weighing platform and the display unit are connected to each other via a cable approx. 1.8 m long. The battery built into the display allows a service life of up to 25 hours in continuous operation.

The NTEP certified scale is delivered with a conformity assessment. The conformity assessment replaces the first verification. The conformity assessment is carried out in the largest possible geographical zone around the planned installation site of the scale and ensures compliance with the strict calibration error limits within this zone.

Specification

Scale type single-range scale
Weighing range [Max] 150 kg / 330 lb
Resolution [d] 50 g / 1.76 oz
Weighing unit kg
Verification value [e] 50 g / 1.76 oz
Verification class [e] M III
Minimum load [Min] 1 kg / 2.2 lb
Taring range multiple tare over the entire weighing range, automatic and manual tare deletion possible
Weighing plate [WxD] 650 x 950 mm / 25.6 x 37.4"

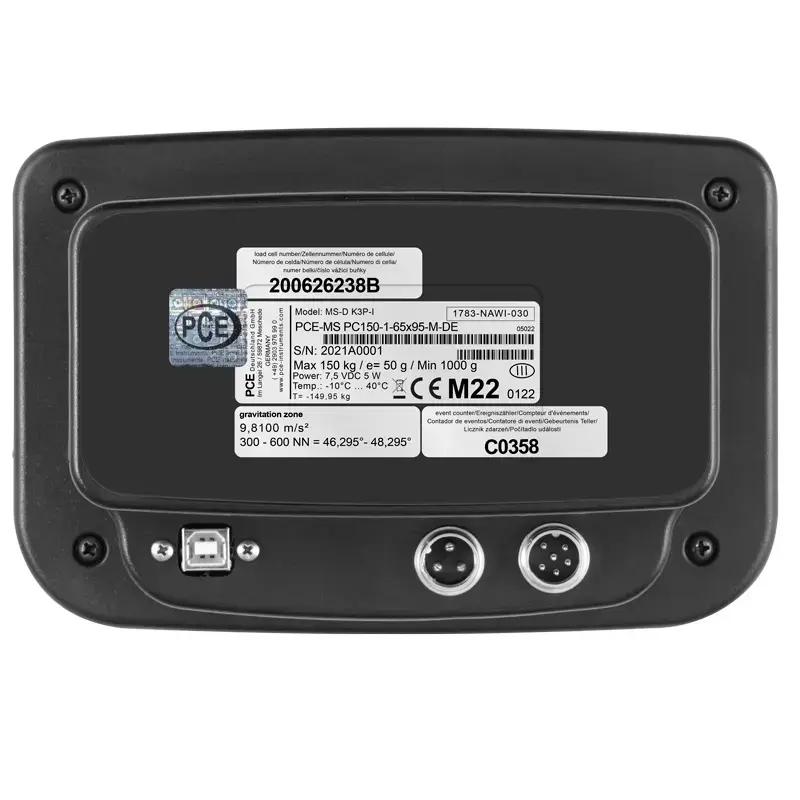

Interface USB-B bidirectional
Display LCD, white on black
Digit size [WxH] 15 x 28 mm / 5.9 x 11.0"
Power supply internal lead battery 6 V / 4.5 Ah / 101 x 70 x 50 mm / 3.9 x 2.7 x 1.9" / 820 g / 28.9 oz
external power supply 7.8 V / 1.2 A AC / 110 V - 230 V
Battery life
up to 25 hours (continuous operation)
Battery saving mode yes after 30 seconds without use (can be deactivated)
Load cell 4x 50 kg / 110 lb
Operating temperature   -10 ... +40 °C / 14 ... 104 °F
Weight 23 kg / 50.7 lb

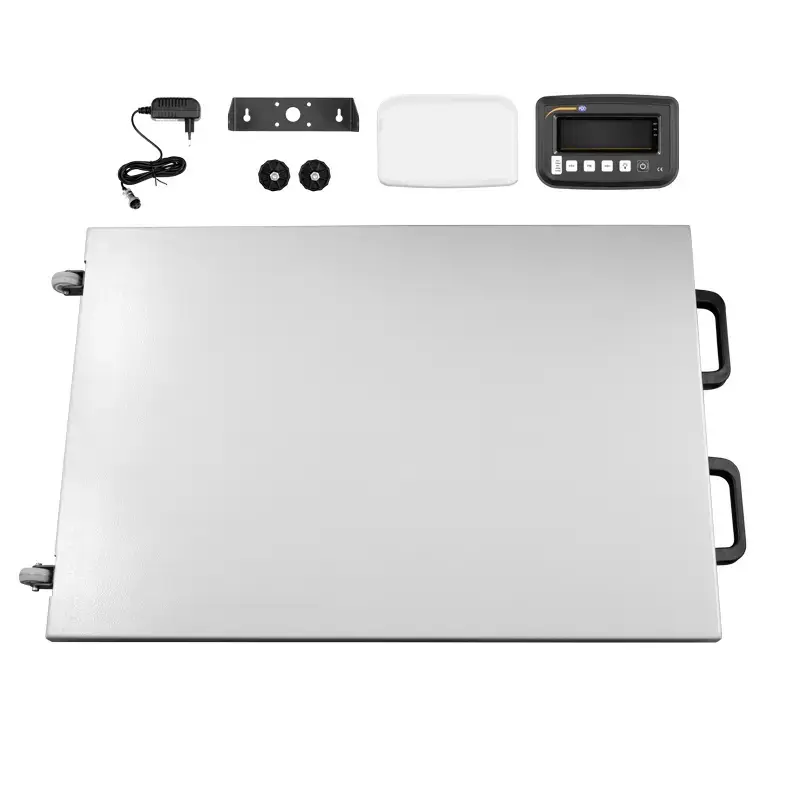

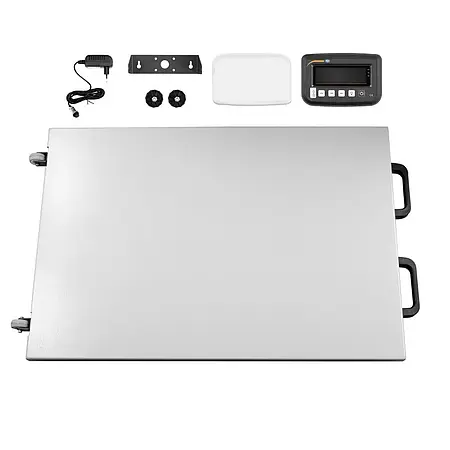

Delivery Scope

1 x NTEP Certified Scale PCE-MS PC150-1-65x95-M
1 x Mains power adapter
1 x Instruction Manual
incl. verification (declaration of conformity)

The place of installation of the scales with Postcode (ZIP), Town, Country must be specified
