PCE-SW 1500N Pallet Beams
Portable adjustable industrial pallet scale with 500 kg / 3306 lb / 1.65 T weighing capacity

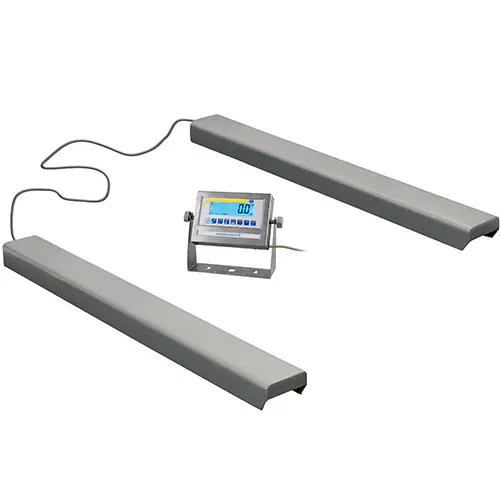

PCE-SW 1500N is a portable battery-powered industrial floor scale or pallet scale featuring two heavy-duty parallel pallet beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the pallet beams, allowing for wall mounting.
| Weighing range | 1500 kg / 3306 lb (=1.65 T) |
| Resolution | 0.5 kg |
| Accuracy | ±2 kg |
| Tare range | Multiple tare across entire weighing range |
| Display | LCD with 25 mm / 1" digit height |
| Cable length to display | ca. 5 m / 16 ft |
| Interface | Bi-directional RS-232 |
| Calibration | Multi-point calibration possible |
| Power supply | 6V battery installed in the display (BAT-6V-4.5Ah) |
| Housing | Scale: painted steel / Display: stainless steel |
| Protection | IP 54 |
| Environment | 0 ... +40 °C / +32 ... +104 °F / 10 ... 80% r.H. |
| Weight | ca. 55 kg / 121.3 lb |
