Description

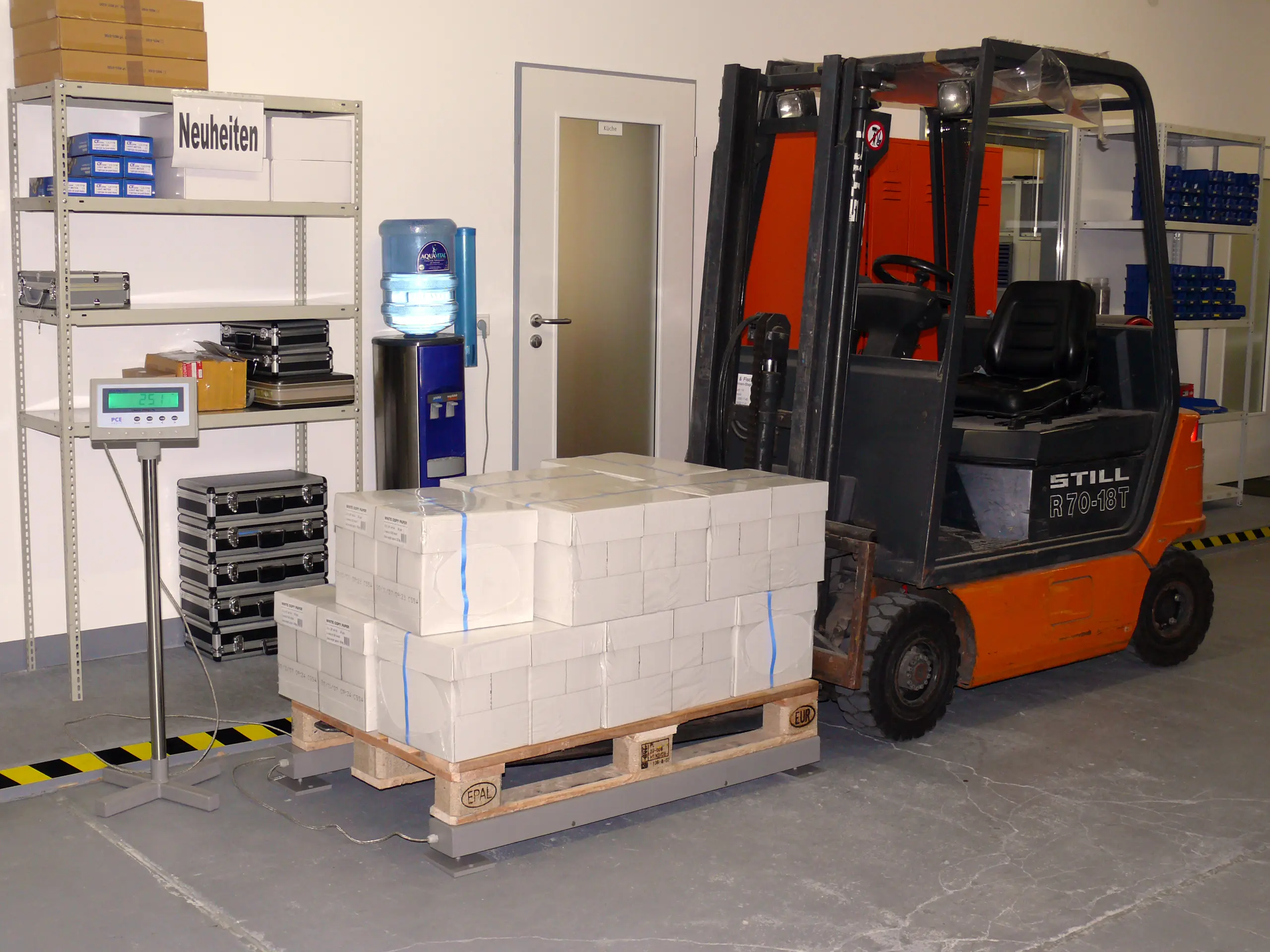

PCE-SW 3000N is a portable battery-powered industrial pallet scale or floor scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the weighing beams, allowing for wall mounting.
Highlights
- Bi-directional RS-232 interface for PC or printer connection
- Multiple TARE for whole weighing range
- Threshold, sum-up and counting functions
- 6V rechargeable battery inside display
- Ingress protection rating: IP 54
- Ideal for use in warehouse, storage facility, shipping, receiving, loading dock, logistical, supply chain, retail, inventory and stock room applications
- Software, USB to RS-232 adapter and ISO calibration certificate sold separately - see accessories for details
Specification
Weighing capacity: 3000 kg / 6613 lb (=3.3 T)
Weighing units: kilograms (kg) or pounds (lbs)
Resolution: 1 kg
Accuracy: ± 4 kg
Multiple TARE for whole measurement range
Threshold, sum-up and counting functions
Display: LCD with 25 mm / 1" digit height
Cable length to display: 5 m / 16 ft
Bi-directional RS-232 interface for PC or printer connection
6V rechargeable battery inside display
Ingress protection rating: IP 54
Operating temperature: 0 ... +40 °C / +32 ... +104 °F
Operating relative humidity (RH): 10 ... 80% RH
Length x width of weighing beams: 1200 x 120 mm / 47.24 x 4.72"
Cable length between weighing beams: 4 m / 13 ft
Weight: Approx. 55 kg / 121.3 lb
Delivery Scope
1 x PCE-SW 3000N industrial pallet scale (includes 2 x weighing beams and 1 x display)
1 x battery charger
1 x user manual
