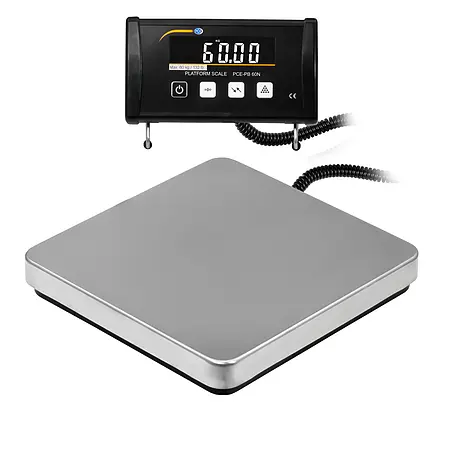

The
USB platform scale of the PCE-PB N series is a versatile platform
scale. The functions of the USB platform scale are very extensive, but
one function is particularly interesting for shipping. It is the
bidirectional USB interface of the platform scales that enables control
by the PC. However, the USB platform scales of the PCE-PB N series can
be used with the optional, inexpensive "ProCell" software. This software
simulates keyboard input, similar to a scanner. With the help of this
software, the platform scale can then transfer the weight value into
active fields.

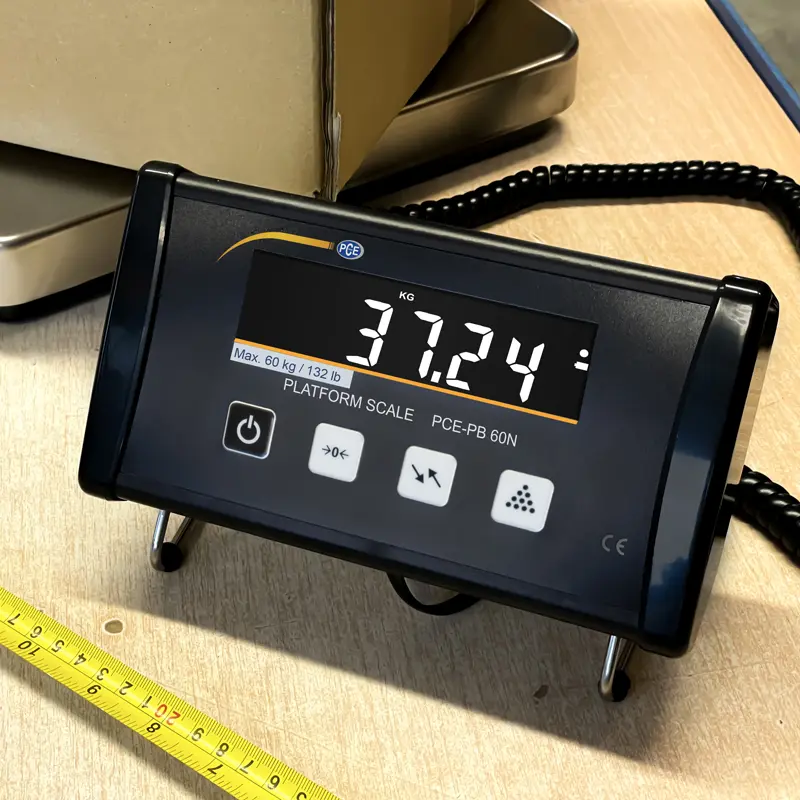

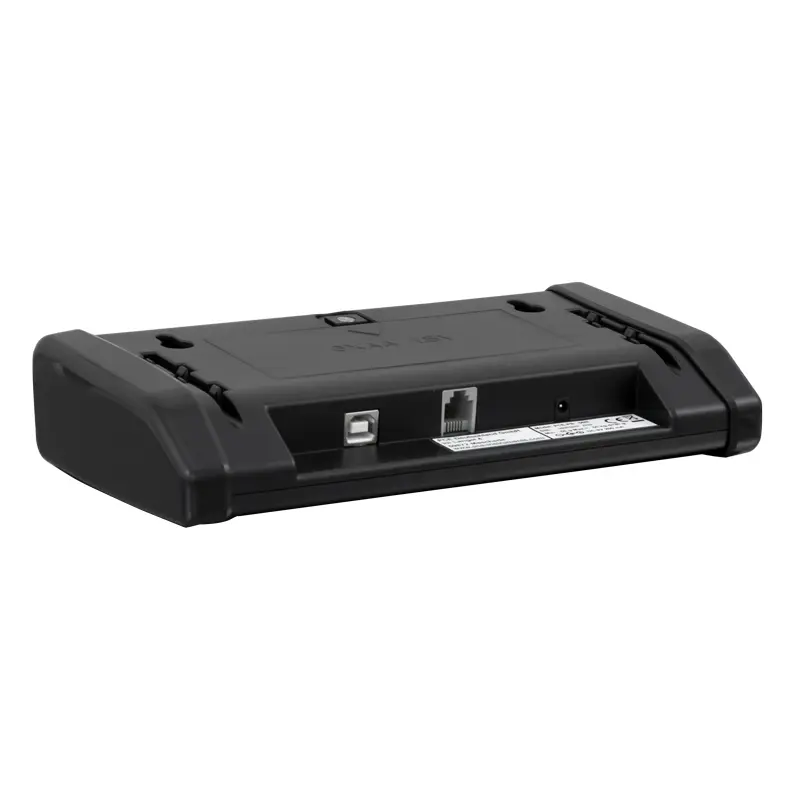

Another advantage of this platform scale is the

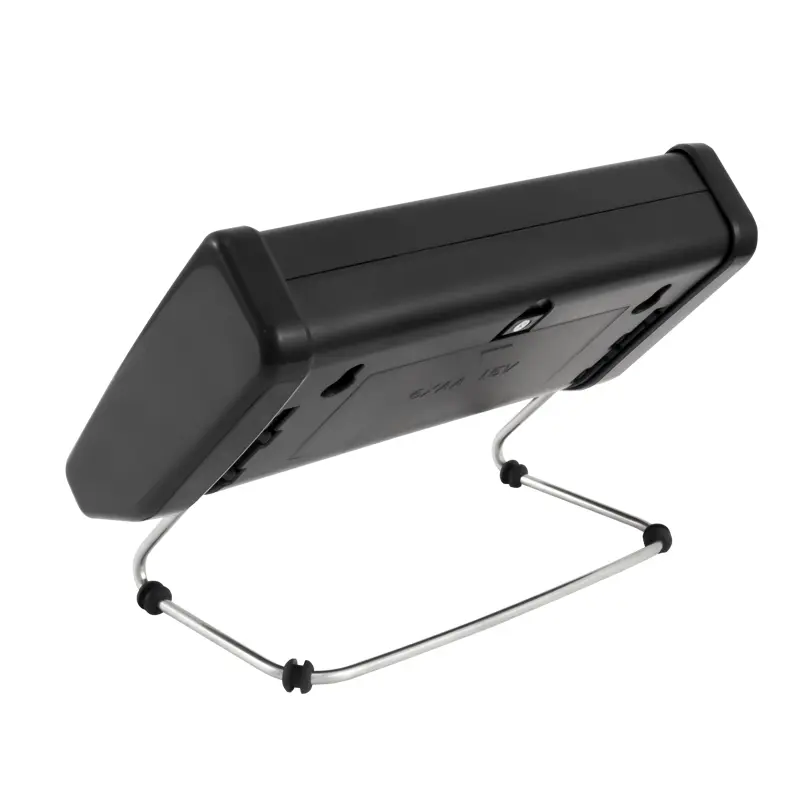

wired display. The display is supplied with a stand, but it is also
suitable for wall mounting. Other interesting functions of the platform

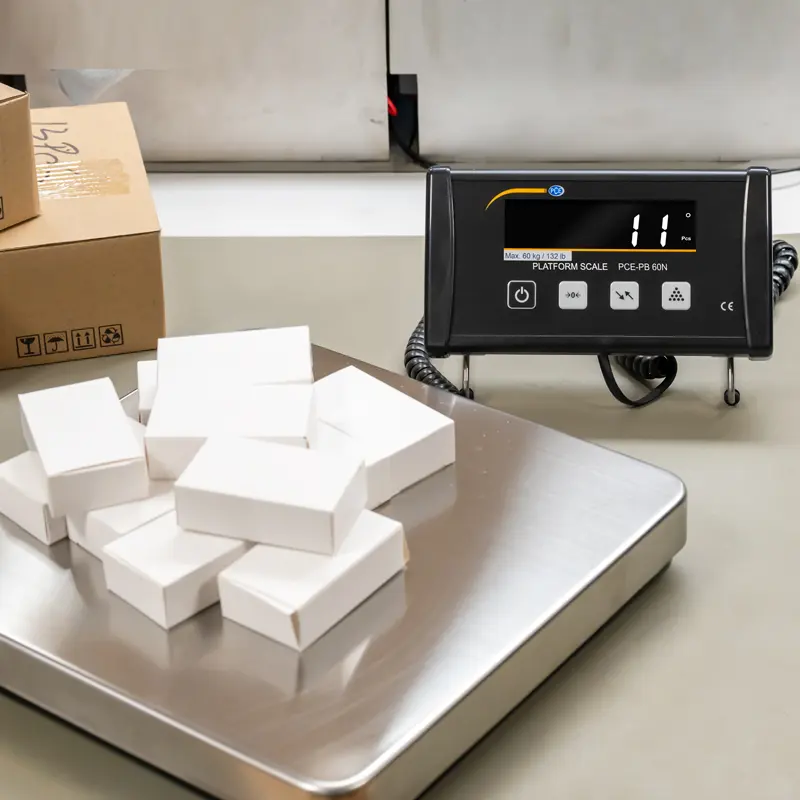

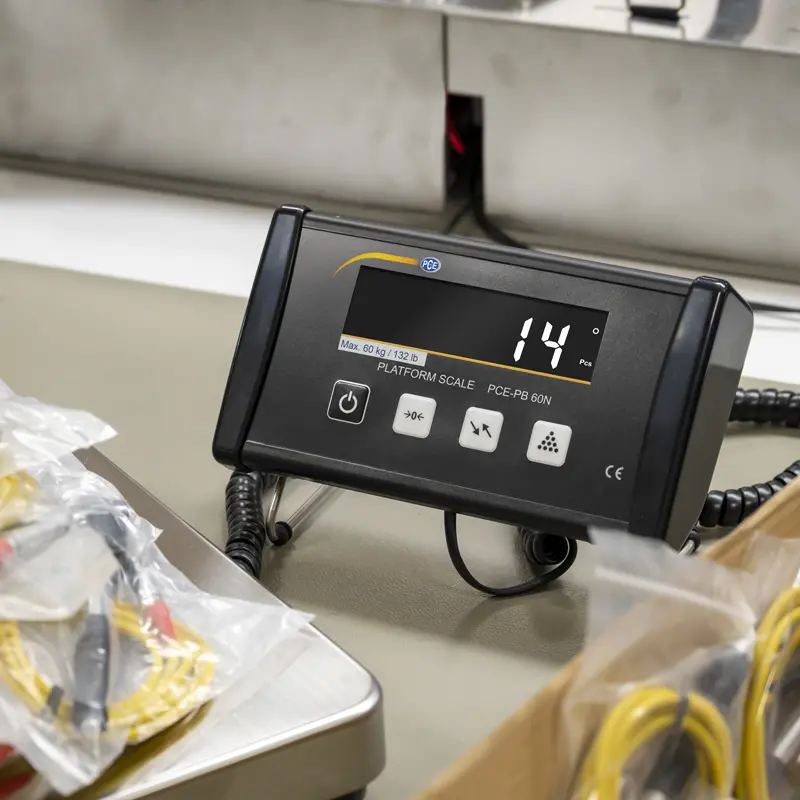

scales are the piece counting function, PEAK hold function, function for
level control, measuring units such as kg / lb / N (Newton) / g,
adjustable background lighting, adjustable automatic switch-off and the
option to operate the scales with power pack or batteries.
Weighing range (Max) | 60 kg / 132 lbs | ||
Minimum load (Min) | 60 g / 2.1 oz | ||
Readability (d) | 20 g / 1.7 oz | ||
Possible measuring tolerance | ± 80 g / 2.8 oz | ||
Weighing plate (L x W x H) | 300 x 300 x 45 mm / 11 x 11 x 1.7" | ||

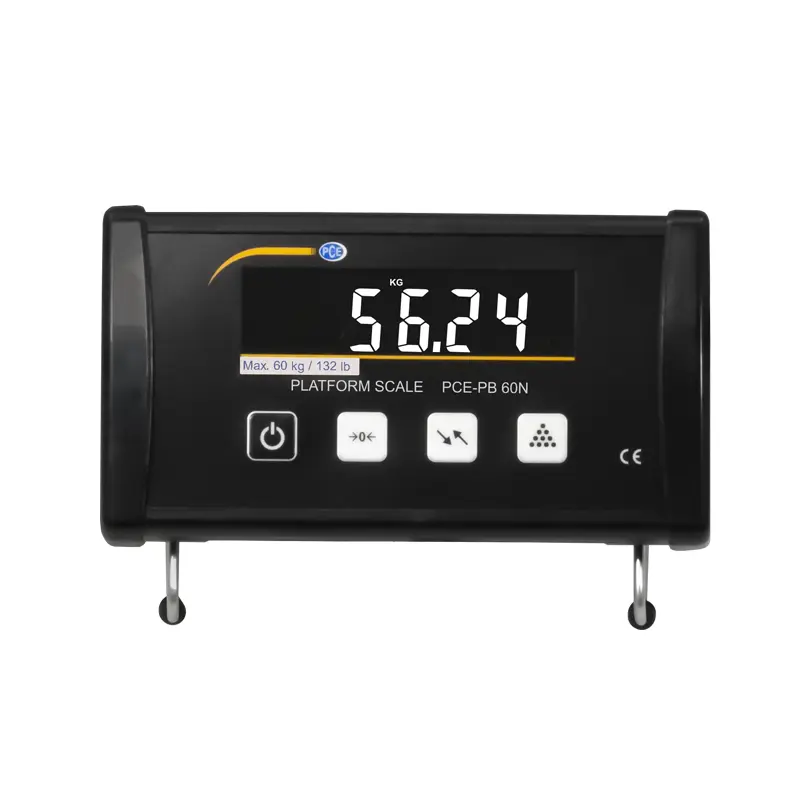

Display | LCD 20 mm / 0.78" digit height (illuminated) | ||
Display cable | 90 cm/ 35" spiral cable extendable to approx. 1.5 m / 60" (Plug connection on the display) | ||
Measurement units | kg / g / lb / N (Newton) | ||
Functions | - PEAK Hold Function (maximum value display) - multiple tare over the full measuring range - level control (auto tare OFF function) - piece counting function (min.1 pc) - animal weighing function - adjustable filters for fast response time - adjustable shutdown and lighting | ||
Interface | USB bidirectional (query with Sx + CR + LF) | ||
Working temperature | +5 ... +35 °C / 41 ... 95 °F / max. 85% r.H. | ||

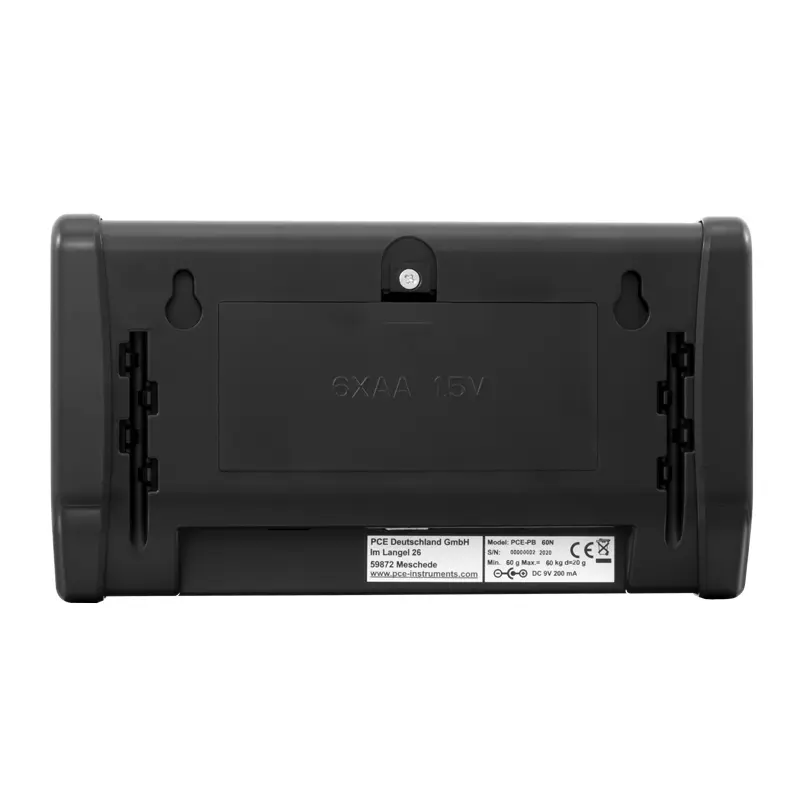

Power supply | DC9V / 200 mA power supply unit or 6 x AA 1.5V batteries | ||
Dead weight | ca. 4 kg / 8.8 lbs | ||
Recommended calibration weight | M1 class (freely selectable) |
