Quadrant Scale for Paper Basis Weight PCE-DMS 200-ICA incl. ISO Certificate

Name: Quadrant Scale for Paper Basis Weight PCE-DMS 200-ICA incl. ISO Certificate
Brand: PCE Instruments
SKU: 5945588
Price: 466 USD
Availability: InStock

Order no.: PCE-DMS 200-ICA

GTIN (EAN): 4250348725783

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

GSM Balance Sample Cutter MPC-3

US$ 159.00

ISO Calibration Certificate for PCE-DMS Series

US$ 153.00

Description

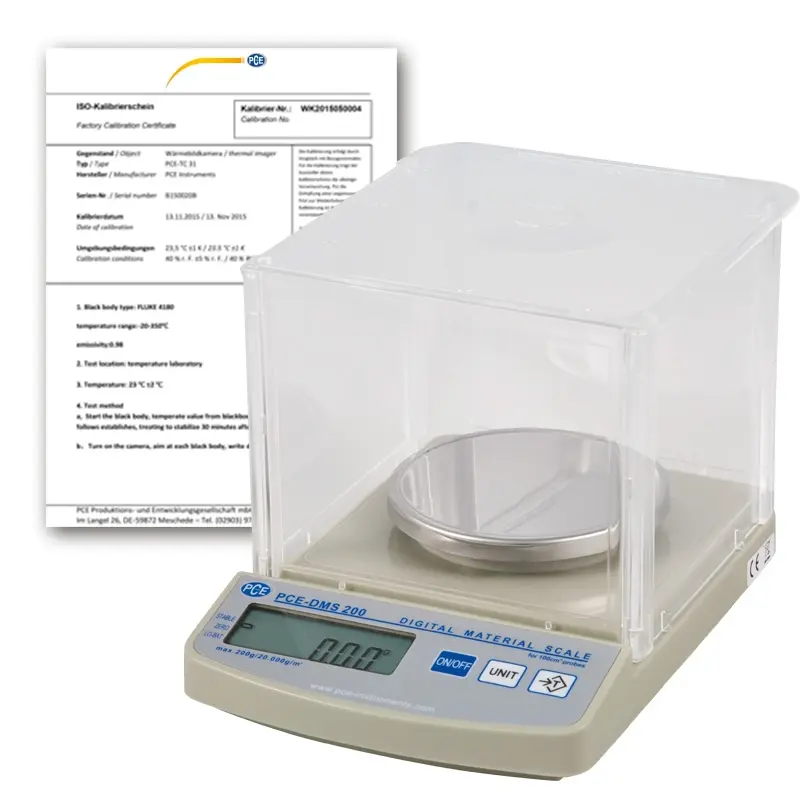

Quadrant Scale for Paper Basis WeightPCE-DMS 200-ICA incl. ISO calibration certificate

10 cm round pan for weighing up to 13 cm circle cut samples

The PCE-DMS 200 is a quadrant scale for paper basis weight used to accurately determine the basis weight (in relation to a square meter of material) of paper, cardboard, fabric, textiles and more directly in g, g/m², oz or oz/yd². Weighing units can be changed with just the push of a button.

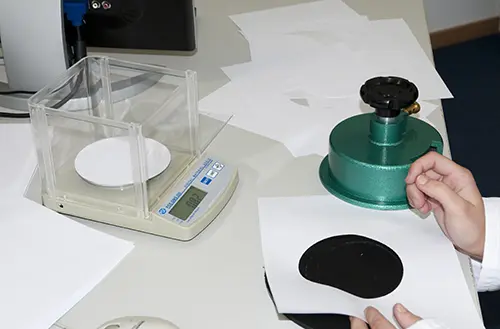

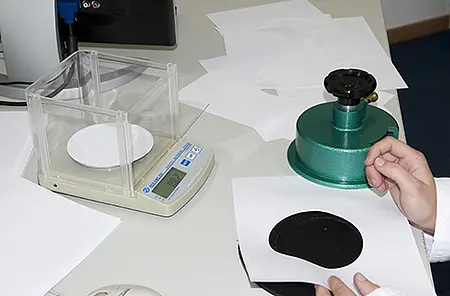

The paper basis weight scale is used primarily by paper and textile production companies. The paper and textile industries perform similar quality control testing by weighing a 11 cm or less round circular sample of paper or fabric. The paper basis weight scale makes this test process quick and easy, especially when using the optional 11 cm circle sample cutter accessory (see accessories tab for details).

Highlights

- 10 cm round pan for weighing 11 cm circle cut samples
- Weighing units can be changed with just the push of a button
- Easy-to-read 15 mm (0.6") backlit LCD display
- Automatically powers off (saves battery life / function can be disabled)
- Automatic calibration function (using external weight - not included)
- Optional ISO calibration certificate (see accessories tab for details)
- Incl. ISO calibration certificate

Specification


Weighing ranges	0 ... 200 g, 0 ... 20,000 g/m², 0 ... 7.05 oz or 0 ... 589.87 oz/yd²
Readability	1 g/m² or 0.01 g
Repeatability	0.02 g
Linearity	± 0.02 g
Stabilization time	3 seconds
Calibration	Automatic function (using external weight - not included)
Display	15 mm (0.6") LCD / backlit
Power supply	230 V / 50 Hz (via 12 V net adaptor) or 6 x AA batteries
Housing	ABS plastic
Wind shield	Plastic / Approx. 145 x 145 x 120 mm (5.7 x 5.7 x 4.7")
Pan size	Round, 10 cm (Approx. 4") diameter
Overall dimensions	Approx. 145 x 210 x 40 mm (5.7 x 8.3 x 1.6")
Net weight	Approx. 1 kg (2.3 lb)

Delivery Scope

1 x Quadrant Scale for Paper Basis Weight PCE-DMS 200
1 x Wind screen
1 x Power supply
6 x AA batteries
1 x User manual
1 x ISO calibration certificate
