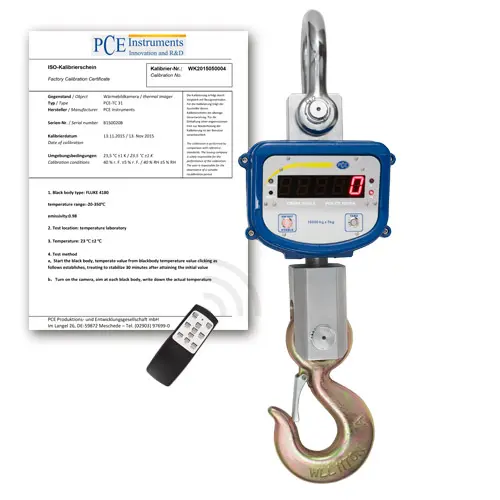

Suspended Scale incl. ISO Calibration Certificate
10 Ton, 10000 kg, 22046 lb weighing capacity / Displays measurement values in kilograms (kg) or pounds (lbs) / Includes hook, shackle and remote control

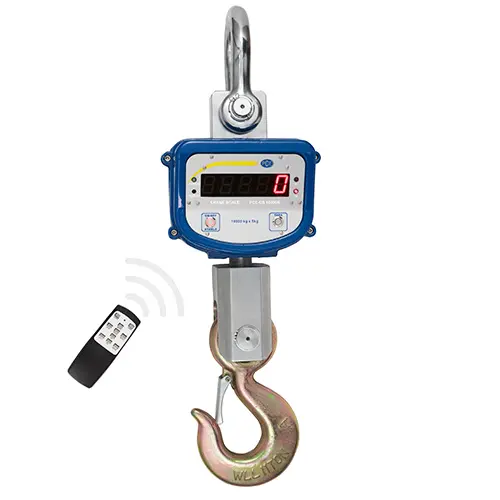

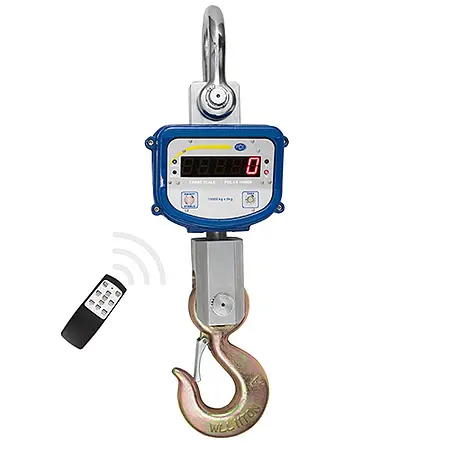

PCE-CS 10000N-ICA is a digital battery-powered heavy-duty industrial crane, lifter, suspended or hanging scale, dynamometer, electronic balance or weighing hook that displays measurement values in kilograms (kg) or pounds (lbs). The scale includes a hook, shackle, remote control and ISO calibration certificate.
Designed for industrial use, this robust hanging Suspended Scale is backed by a two-year warranty against manufacturer defects.
| Maximum capacity | 10000 kg / 22046 lbs ≈ 10 Tons |
| Minimum weight | 100 kg / 220.5 lbs |
| Resolution | 5 kg |
| Standard | OIML class III |
| Zero range | 4 % full scale (FS) |
| Tare range | 100 % FS |
| Settling time | ≤ 10 seconds |
| Overload indication | 100 % FS + 9e |
| Max. safety load | 125 % FS |
| Ultimate load | 400 % FS |

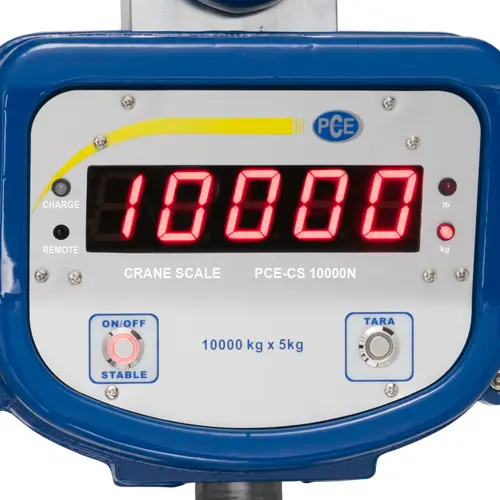

| Display | 5-digit LCD/LED, 30 mm / 1.18" character height |
| Battery | 6 V / 7 Ah fully-sealed lead-acid battery |
| Battery life | ≥ 50 hours |
| Battery charger | 9 V DC / 1000 mA |
| Remote control range | 15 m / 49.2' |
| Remote control battery | 2 x 1.5 V AAA batteries |
| Operating temperature | -10 ... +40 °C / +14 ... +104 °F |
| Operating humidity | ≤ 85 % RH under +20 °C / +68 °F |
| Dimensions | 264 x 206 x 745 mm / 10.4 x 8.1 x 29.4" |
| Weight | 30 kg / 66.2 lbs |
1 x PCE-CS-10000N-ICA Suspended Scale with weighing hook, shackle and battery
1 x battery charger
1 x remote control with batteries
1 x ISO calibration certificate
1 x user manual
Calibration certificates are issued specifically for the customer and are excluded from the right of return.
