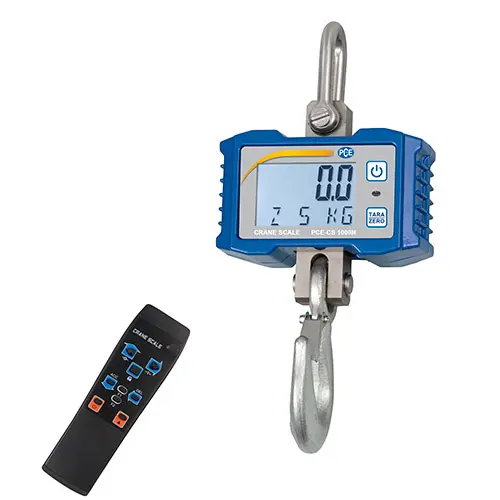

PCE-CS 1000N is a digital, electronic, battery-powered Suspended Scale that displays measurement values in kilograms (kg), pounds (lbs) and freely adjustable units. The scale comes factory calibrated and includes a hook, shackle and remote control. For an additional fee, the scale can be calibrated according to ISO standards.
The robust aluminum housing of this Suspended Scale allows weighing in even the harshest indoor industrial environments. The Suspended Scale is operated with three commercially available 1.5 V AA batteries, allowing for a continuous operating time of approx. 65 hours. The display of the Suspended Scale is a backlit LCD screen featuring large, easy-to-read digits. The timing of the backlight of the Suspended Scale's display can be adjusted to extend the operating time.
Other functions of the Suspended Scale are: gross / net weighing, sum function, data hold function, zero function, power-saving automatic shutdown and the possibility to display a measuring unit that is freely adjustable by the user. This means that the user can store a conversion factor in the Suspended Scale, so that the weighed product is not in kg or lbs, but in another measurement such as meters (e.g., 1 kg = 1.25 m). In addition, the Suspended Scale features a linear calibration to ensure high accuracy.
Maximum weighing | 1000 kg / 2200 lbs ≈ 1 Ton |
Resolution | 0.2 kg / 0.4 l |
Tare range | 100% full scale |
Accuracy | ± 1% of the measuring range |
Minimum load | 10 kg / 23 lbs |
Measuring units | kg / lb |
Response time | Less than 1 second |
Safety load | 150% (do not exceed) |
Functions | Zero, tare, data hold, power-saving |
automatic shutdown and timed backlighting | |
Display | LCD with backlight, 20 mm / |
0.79 in. digit height | |
Power supply | 3 x 1.5 V AA batteries (operating time up to 65 hours), |
2 x AA batteries (remote) | |
Operating conditions | -10° C ... +40° C / +14° F ... +104° F |

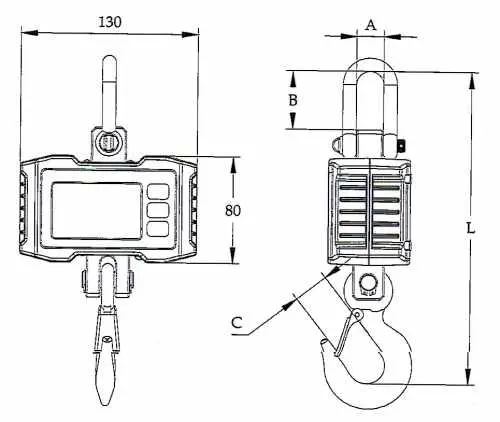

Overall dimensions | See table above |
L | 230 mm / 9.1 in |
A | 20 mm / 0.8 in |
B | 43 mm / 1.7 in |
C | 27 mm / 1.1 in |
Approx. weight | 1.4 kg / 3.1 lbs |
1 x PCE-CS 1000N Suspended Scale
1 x hook
1 x shackle
1 x remote control with batteries
3 x 1.5 V AA batteries for scale
1 x user manual
