Suspended Scale PCE-CSI 15

Order no.: PCE-CSI 15
GTIN (EAN): 4250348727268
US$ 2,831.00
Wireless
ex. VAT, ex. delivery costs
:
4250348727268
PCE-CSI 15
Available in: min. 4 weeks

Accessory

Calibration certificate for tensile or compressive force up to max 1000kN / 100t
Calibration certificate for tensile or compressive force up to max 1000kN / 100t
US$ 1,080.00

Description

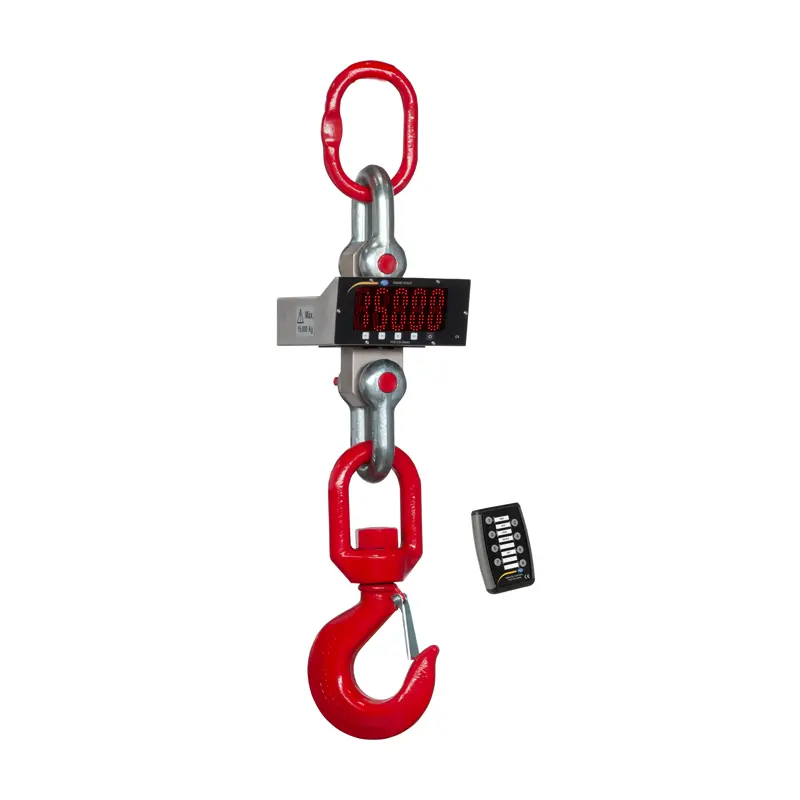

Suspended Scale PCE-CSI 15
Weighing range 15 t / Control via remote control / Display with 75 mm digit height
Hold, tare and totalizing function / Integrated 7 Ah battery / Operating time ≥ 40 h

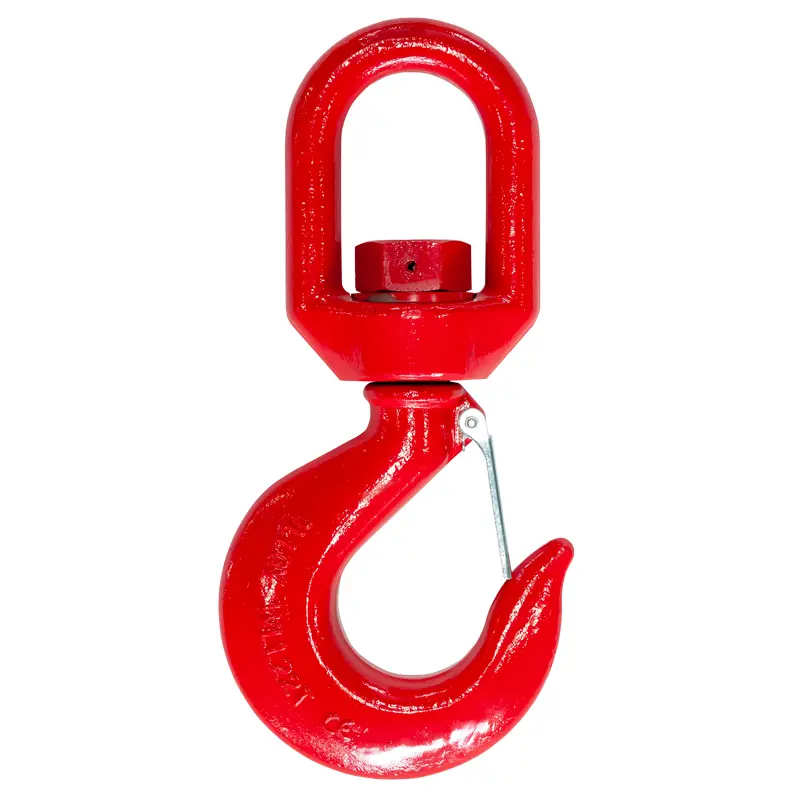

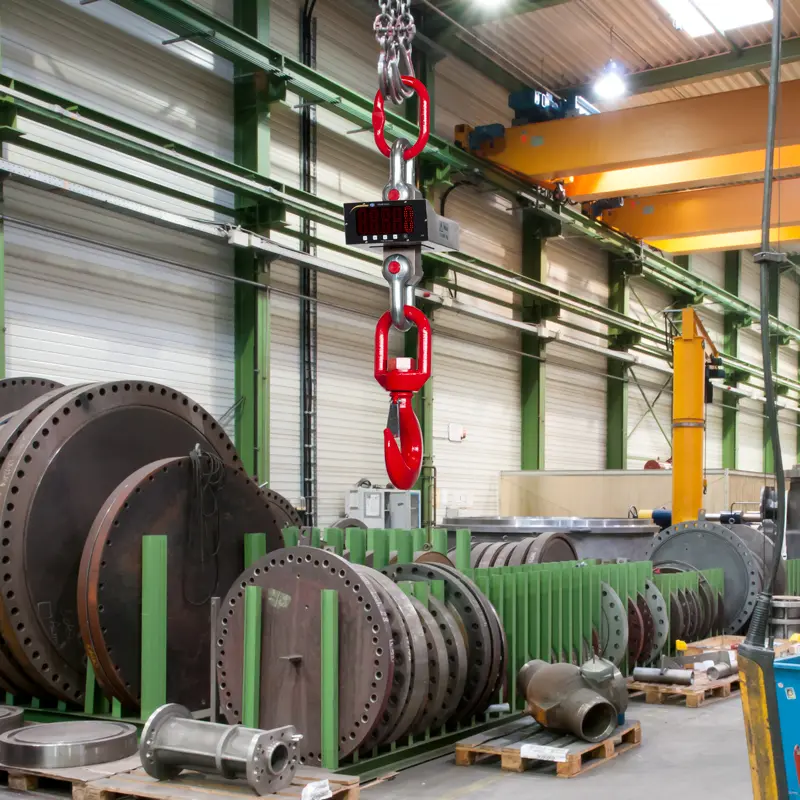

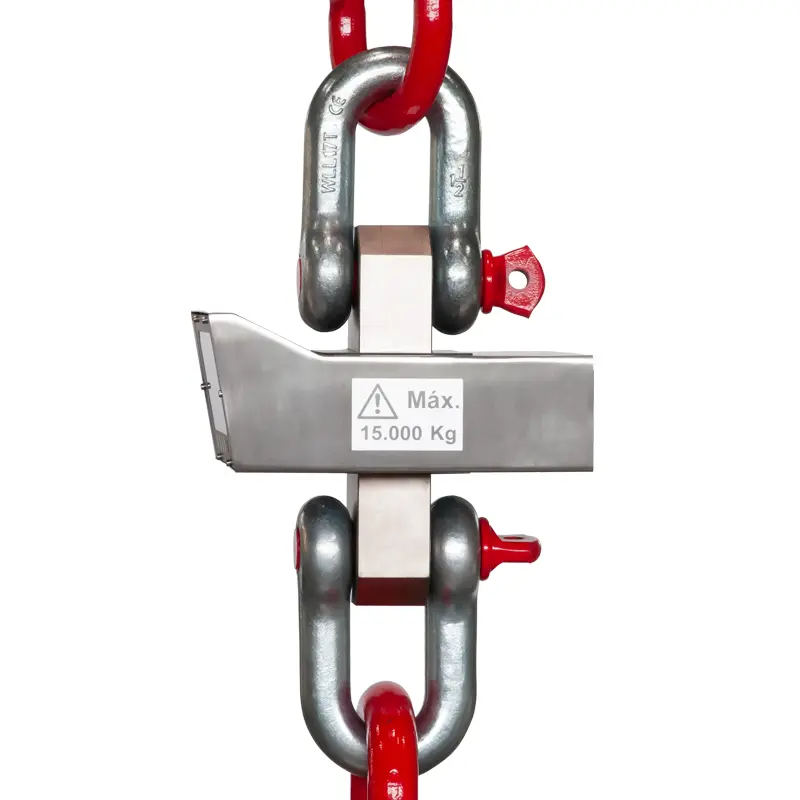

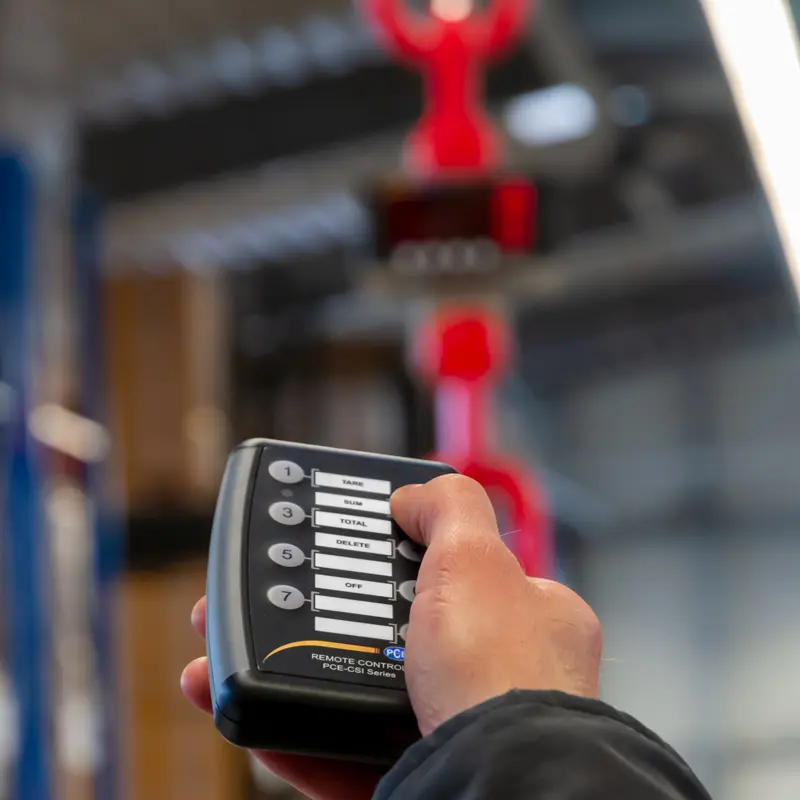

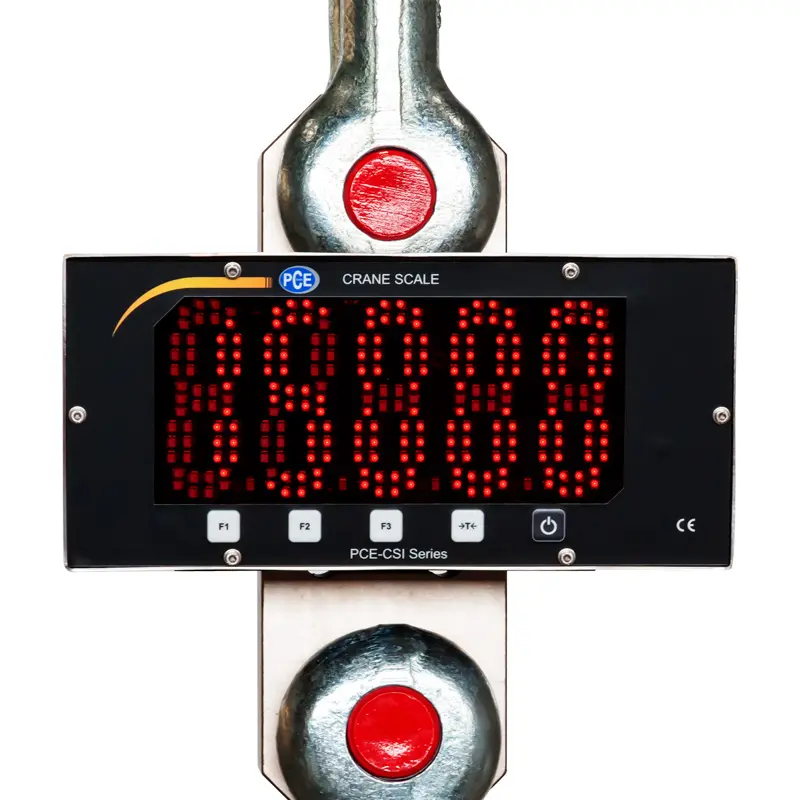

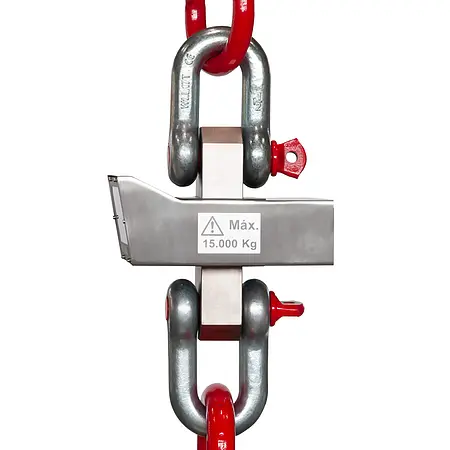

The suspended scale was developed for in-house weighing of up to 15 t. The suspended scale has a massive shackle on the top and a rotatable hook with a safety catch on the underside. The suspended scale is operated using the infrared remote control supplied. The 5-digit LED display has a digit height of approx. 75 mm, so that the readings can be read from a distance without any problems. The integrated battery of the suspended scale ensures an operating time of over 40 hours. The battery level can be checked at any time. If it is low, the display of the suspended scale also starts to flash, so that it is easy for the operator to see when the battery needs to be charged.

The suspended scale also offers other useful functions. The tare function enables weights to be tared (e.g. slings such as ropes, chains, etc.). If the weight of the objects to be tared is known, this can also be entered manually in advance. Another useful function of the suspended scale is the totalizing function. Several weights can be added and the sum read out. The display hold function can also be used to freeze measured values ​​on the display.

Highlights

- Weighing range: 15,000 kg / 33,069 lb
- Resolution: 5 kg / 11 lb
- Minimum load: 100 kg / 220 lb
- Control via remote control
- Up to 40 hours of operation
- Tare, hold and totaling functions
- 5-digit display with 75 mm / 2.9" digit height
- Easy handling

Specification

Weighing range15,000 kg / 33,069 lb
Minimum load100 kg / 220 lb
Resolution5 kg / 11 lb
StandardsOIML class III
Zero range4 % of the weighing range
Tare range100 % of the weighing range
Settling time≤ 10 seconds
Overload display100 % of the weighing range + 9e
Max. safety load125 % of the weighing range
Maximum load400 % of the weighing range
Display5-digit LCD/LED,  75 mm / 2.9" digit height
Batteryfully sealed lead battery, 6 V / 7 Ah
Operating time≥ 40 hours
Power supply
9 V DC / 1000 mA
Remote control range15 m / 49 ft
Power supply remote control
2 x 1.5 V AAA batteries
Operating temperature-20 °C to 70 °C / -4 °F to 158 °F
Operating humidity≤ 85 % RH at below +20 °C / 68 °F
Weight44 kg / 97 lb
Dimensions
A 1050 mm / 41.3"
B 360 mm / 14.1"
C 635 mm / 25.0"
D 775 mm / 30.5"
Shackle 7.235 kg / 15.95 lb
Ring 3.50 kg / 7.71 lb
Hook 21.4 kg / 47.17 lb
Weight 44 kg / 97.00 lb

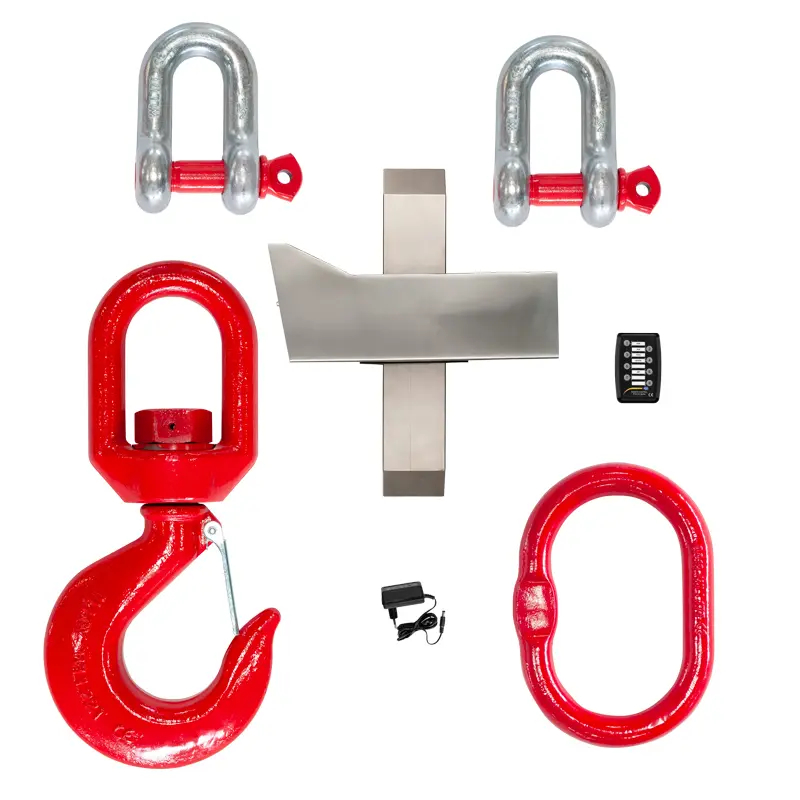

Delivery Scope

1 x Suspended Scale PCE-CSI 15 (including battery, hook and shackle)
1 x Charger
1 x Remote control
1 x 2 x 1.5 V AAA batteries
1 x Instruction manual
