Trade Approved Scale PCE-SD 3000F SST

Order no.: PCE-SD 3000F SST
GTIN (EAN): 4250348712400
US$ 7,693.00
Verification for Trade / conformity assessment
ex. VAT, ex. delivery costs
:
4250348712400
PCE-SD 3000F SST
Available in: up to 10 working days
1 kg
–
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

USB Memory Adapter
USB Memory Adapter
US$ 198.00
Additional date and time function
Additional date and time function
US$ 43.00
Adaptor RS-232 to USB
Adaptor RS232 to USB
US$ 43.00
Analog output / analog interface 4-20mA
Analog output / analog interface 4-20mA
US$ 178.00
LAN interface
LAN interface
US$ 198.00
Analog output / analog interface 0-10V
Analog output / analog interface 0-10V
US$ 178.00
Additional RS-232 interface
Additional RS-232 interface
US$ 46.00
RS485 interface AF-RS485-PCE
RS485 interface AF-RS485-PCE
US$ 92.00
USB interface AF-USB-S
USB interface AF-USB-S
US$ 119.00
USB-cable PCE-USB
USB cable PCE-USB
US$ 22.00
PCE-SOFT-SC-Basic
Scale Software PCE-SOFT-SC-Basic
US$ 237.00
Scale software PCE-SOFT-SC-Pro
Scale Software PCE-SOFT-SC-Pro
US$ 272.00
Scale software PCE-SOFT-SC-3XPro
Scale Software PCE-SOFT-SC-3XPro
US$ 511.00
Stand for PCE-SD Series
Stand for PCE-SD Series
US$ 237.00
Two additional function ranges for PCE-SD Series
Two additional function ranges for PCE-SD Series
US$ 79.00
RS232 Cable
RS232 Cable
US$ 37.00
Limit weighing including control interface
Limit weighing including control interface
US$ 79.00
Signal lights for Balances
Signal lights for Balances
US$ 660.00

Description

Calibrated Trade Approved Scale up to 3t / Resolution 1 kg / IP68 - IP65 / Piece counting function / Summing function / RS-232 interface / Removable weighing plate

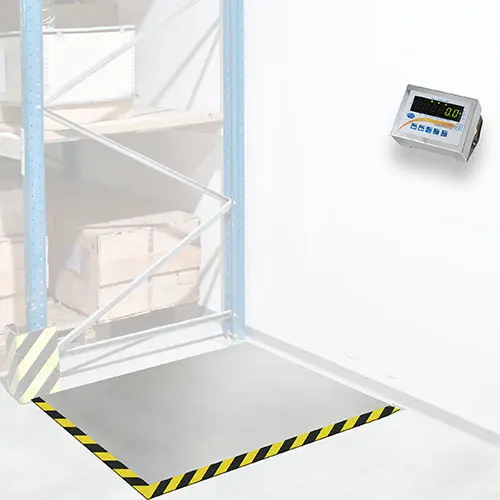

The trade approved scale is installed in the floor to obtain a flat surface. As a result, the trade approved scale can be easily loaded with all kinds of conveyors. The trade approved scale has a weighing platform bolted to the frame, which can be used as required. Optionally, it is possible to provide the trade approved scale with a damper which makes it easier to lift the weighing surface. The cells of the trade approved scale are IP68 protected and the display IP65. Due to the high protection class, the trade approved scale has no interfaces. These interfaces, such as RS-232, RS-485, USB, LAN, 4-20mA, 0-10V or floating contacts can be installed at our factory. Subsequent installation is not possible. This allows the trade approved scale to monitor or control production processes.

Highlights

- Piece counting function
- Percent% comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value storable
- Tolerance determination Weight min / ok / max
- Sum up several weighings
- Statistics function
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA

Specification

Model

Weighing range

Resolution

Min.*

Dimensions

Weight

PCE-SD 3000F SST

3,000 kg

1 kg

20 kg

1500 x 1500 mm

210 kg
* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable stainless steel floor installation scale also indicates smaller weights, but these may not be used in legal traffic.
Calibration calibratable according to class M III (delivered calibrated)
Tare range multiple tare over the full weighing area
Settling time <4 s
Display LED with 20 mm digit height
Cable length plugged in 5 m
Weighing units kg / piece / lb
Interface optional bi-directional RS-232, USB, LAN
Interface description
e.g. 4-20 mA, 0-10V, OC switching contacts
Weighing plate Smooth stainless steel (unscrewable)
Operating temperature -10 °C ... +40 °C / 14 ... 104 °F
Power supply ~230V 50Hz 8VA  (safety plug)
Protection cell IP 68 / display IP65
For the installation of the stainless steel installation scale you need the dimensions of the foundations as well as the frame, which are located behind the buttons sketch

Delivery Scope

1 x Trade Approved Scale PCE-SD 3000 SST
1 x Display
4 x Floor fixing plates
1 x User manual
