Analog output / analog interface 4-20mA

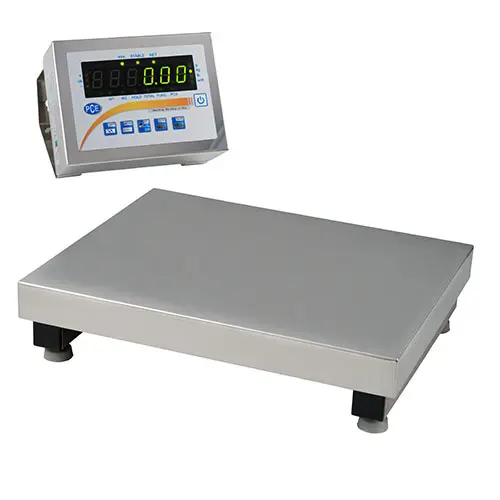

The water resistant trade approved scale featuring a separate display can be MIII calibrated and will be delivered calibrated. The load cells of the trade approved scale are IP67 protected, while the display device is made of an IP65 protected enclosure. Thus the trade approved scale proves to be ideal for high-moisture locations or such locations that require a high hygienic standard. With the appropriate equipment that is optionally purchasable, you can also use the trade approved scale on ships at sea.
Standard functions of the water resistant trade approved scale are: summation function, counting function, statistics function, mixing on formula, percentage weighing function, animal weighing function, alarm on trespassing thresholds etc. Due to its high IP protection the trade approved scale does not feature any interface. But optionally interfaces can be purchased for the trade approved scale, e.g. RS-232, RS-485, USB, LAN, OC contactors, analogue interfaces 4-20 mA or 0-10 V.
| |||||||||||||||||||||||||||||||
* The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer. | |||||||||||||||||||||||||||||||
Calibration Class | M III (is delivered calibrated) | ||||||||||||||||||||||||||||||
Unit Counter Function | counting by reference values | ||||||||||||||||||||||||||||||
Tare function | multiple taring covering the whole measurement range | ||||||||||||||||||||||||||||||
Interface | optional
bi-directional RS-232, USB, LAN datasheet on interface as well as analogue output 4-20 mA, 0-10, OC | ||||||||||||||||||||||||||||||
Display | LED with 20 mm digit height | ||||||||||||||||||||||||||||||
Cable Length | from platform to display | ||||||||||||||||||||||||||||||
Power Source | ~230V, 50Hz, 8VA (schuko plug) | ||||||||||||||||||||||||||||||
Protection Class | IP 67 cell / IP65 display | ||||||||||||||||||||||||||||||
Operational Temperature | -10 °C ... +40 °C | ||||||||||||||||||||||||||||||
Weight | platform
400 x 500 x 120 mm / 17 kg platform 600 x 500 x 135 mm / 25 kg |
ex. VAT, ex. delivery costs
Analog output / analog interface 4-20mA
ex. VAT, ex. delivery costs
Analog output / analog interface 0-10V
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
Do you want toequipyour scale with abattery?(Retrofittingthe battery is not possible).The scalewill then receivea6V/12Ahbatterywith12Vpower connectorand apower-savingLCDdisplayto be able toworkas long as possiblewith the battery.The working timeof the batteryis approximately50 hours,andcan be rechargeddirectly onthe scale.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
This function divides the weighing area into two-areas, this allows a higher resolution in the lower weighing range.
Only for scales up to 3 t.
ex. VAT, ex. delivery costs
The serial RS-232 cable is about 2 m long and has the right pinout 2-3 / 3-2 / 5-5 which is necessary for bidirectional communication of the scale with the PC.
