Calibratable Trade Approved scale up to 6,000 kg / Resolution from 0.1 kg
/
Summing function / Tare weight storable / Piece counting function
/ Limit value weighing
Optional: analog output 4-20 mA, 0-10 V, OC switch contacts, RS-232, USB, LAN

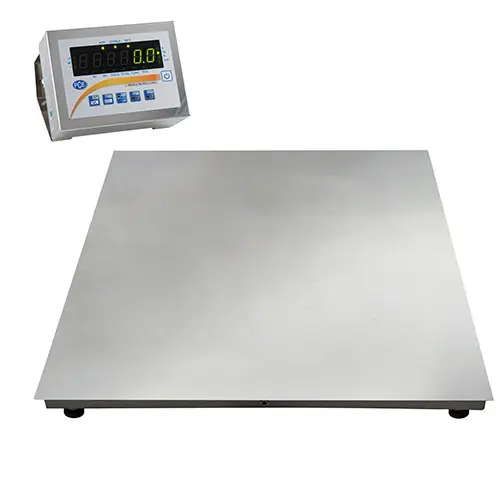

The trade approved scale is made entirely of high quality, acid resistant stainless steel. The weighing cells installed in the trade approved scale have a protection class of IP68. The weighing surface of the trade approved scale is smooth and has no screw connections or recesses so that the cleaning of the stainless steel trade approved scale can be done quickly and reliably. The platform size of the trade approved scale is available in different dimensions depending on the measuring range.
The functions of the trade approved scale are summing function, counting function, statistical function, animal weighing function, percentage weighing function, recipe weighing function, multiple tare, storable tare value, gross - net weighing and adjustable weight limits MIN / MAX / OK. Furthermore, the trade approved scale can be provided with interfaces, which can be used to monitor and control tasks. We offer bidirectional RS-232, USB, LAN, 4-20 mA analog interface, 0-10 V analogue interface and passive 3 floating contacts / OC. In industry special sizes or functions of the trade approved scale may be in demand. For such applications we also offer individual solutions such as Level controls with SMS notification.
|
||||||||||||||
* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor scale also indicates smaller weights, but these may not be used in legal traffic. | ||||||||||||||
Calibration | calibratable according to class M III (calibrated) | |||||||||||||
Tare range | multiple tare over the full range | |||||||||||||
Settling time | <4 s | |||||||||||||
Display | LED with 20 mm digit height (on the 3 m cable) | |||||||||||||
Weighing units | kg / piece / lb | |||||||||||||
Interface | optional bidirectional RS-232, USB, LAN as well as 4-20 mA, 0-10V, OC |
|||||||||||||
Ramp | optional, see accessories | |||||||||||||
Operating temperature | -10 °C ... +40 °C | |||||||||||||
Power supply | ~230V 50Hz 8VA (safety plug) | |||||||||||||
Protection | IP68 cells / IP65 display |
