PCE-WWSB8-S Vehicle Weighing Pads
Portable platform scale with display and printer / Designed for weighing trucks and other vehicles / Sum function for calculating vehicle weight plus trailer

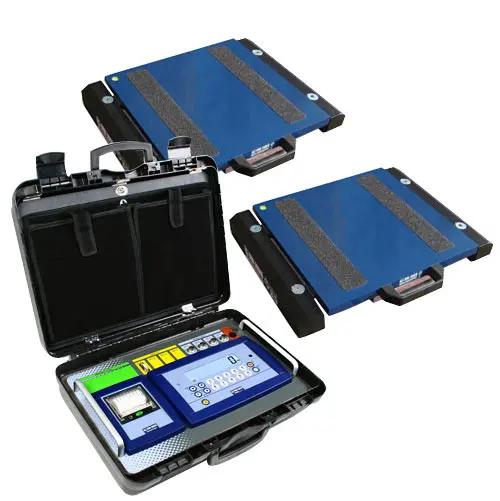

PCE-WWSB8-S are vehicle weighing pads, portable weighbridge or floor scale consisting of two weighing platforms and a carrying case with a built-in display and printer. Featuring connections for up to four weighing platforms (additional weighing platforms sold separately - see accessories), this floor scale calculates the total weight, wheel load and axle load of a vehicle. The floor scale also has a sum function for calculating vehicle weight plus trailer.
The load cell of the floor scale has an IP65 ingress protection rating and is suitable for outdoor use. The display of the floor scale is located inside the carrying case along with a printer. The digit height on the display is 25 mm / 0.98". Printouts include the time and date.
|
Platform specifications |
|
| Weighing per platform (wheel load) |
8000 kg / 17636 lbs / 8.8 T |
| Readability |
5 kg |
| Repeatability |
10 kg |
| Dimensions per platform | 300 x 400 x 58 mm / 11.8 x 15.7 x 2.3" |
| Protection class of load cells | IP65 |
| Housing | Heavy-duty aluminum |
| Connection cable length | 10 m / 32.8' |
| Weight per platform | 14.5 kg / 31.97 lbs |
| Overall dimensions | 400 x 410 x 58 mm / 15.7 x 16.1 x 2.3" |
|
Display specifications |
|
| Display | LCD with backlight |
| Digit height | 25 mm / 0.98" |
| Power supply | Rechargeable battery |
| Operating time | Approx. 10 hours of continuous use at full charge |
| Charging time | Approx. 8 hours |
|
Connections |
Up to 4 weighing platforms |
| Printouts | All weight values including time and date |
| Weight | 5 kg / 11.1 lbs |
| Dimensions | 325 x 460 x 170 mm / 12.8 x 18.1 x 6.7" |
