Weighbridge PCE-RS 2000

Order no.: PCE-RS 2000
GTIN (EAN): 4250348714688
US$ 1,320.00
ex. VAT, ex. delivery costs
:
4250348714688
PCE-RS 2000
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

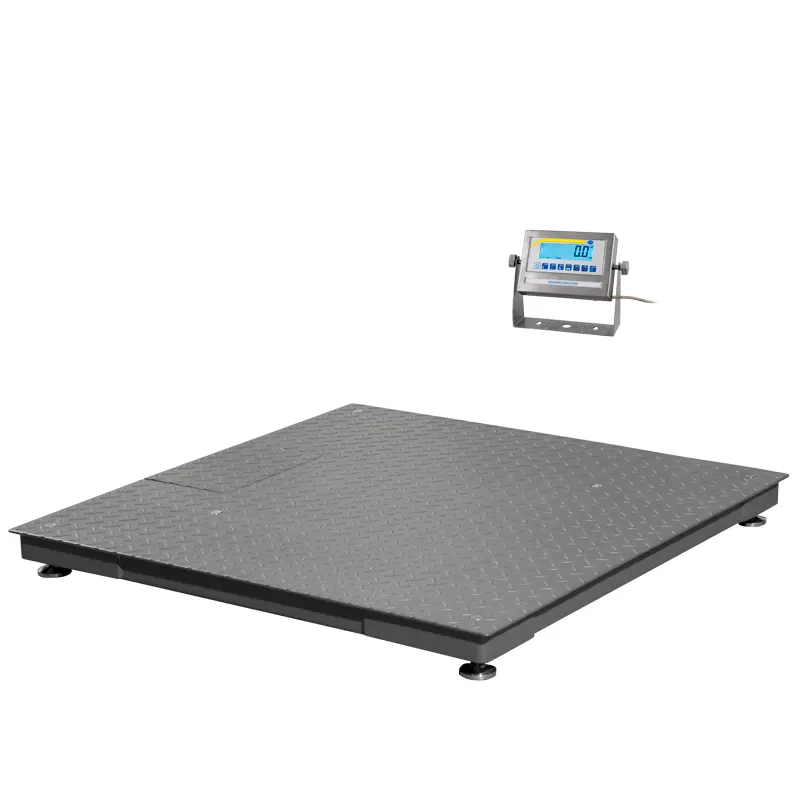

Weighbridge painted steel / platform size 1200 x 1200 mm / up to 2,000 kg /
4 switching outputs / 4 ... 20 mA analog output / table or panel mounting

Theweighbridge PCE-RS 2000 is designed for stationary use. The robust construction makes weighbridgethis  particularly well suited for weighing large objects. The weighbridge is made of painted steel. Weighing data can be easily read thanks to its external display (with 4 m length cable). Functions of the weighbridge are a summing function, a piece counting and check weighing. The weighbridge is delivered with a bi-directional RS-232 interface and with optional PC software can show the measured valuesin Excel. The indicator of the weighbridge can be placed on a table or an optional tripod.

Highlights

- Weighing range: 2,000 kg
- Resolution: 0.5 kg
- Bidirectional RS-232 interface
- Indicator in stainless steel IP 54
- LC Display with 25 mm digit height
- Cable tothe display about 5 m (connector)
- Summing function
- Parts counting function
- Checkweighing functionMIN / OK / MAX
- Analog Output 4...20 mA optional

Specification

Weighing range2,000 kg
Resolution0.5 kg
Measurement uncertainty± 2 kg
Tare ranover the entire weighing range

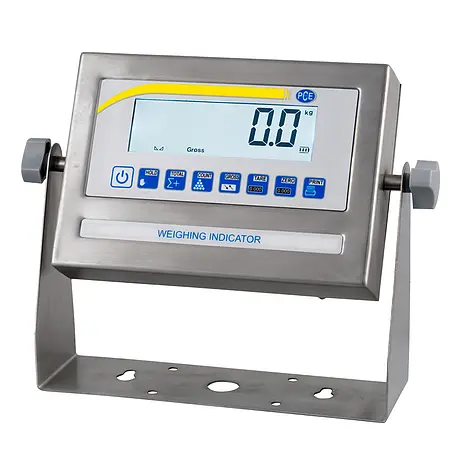

DisplayLCD, height 25 mm,backlit

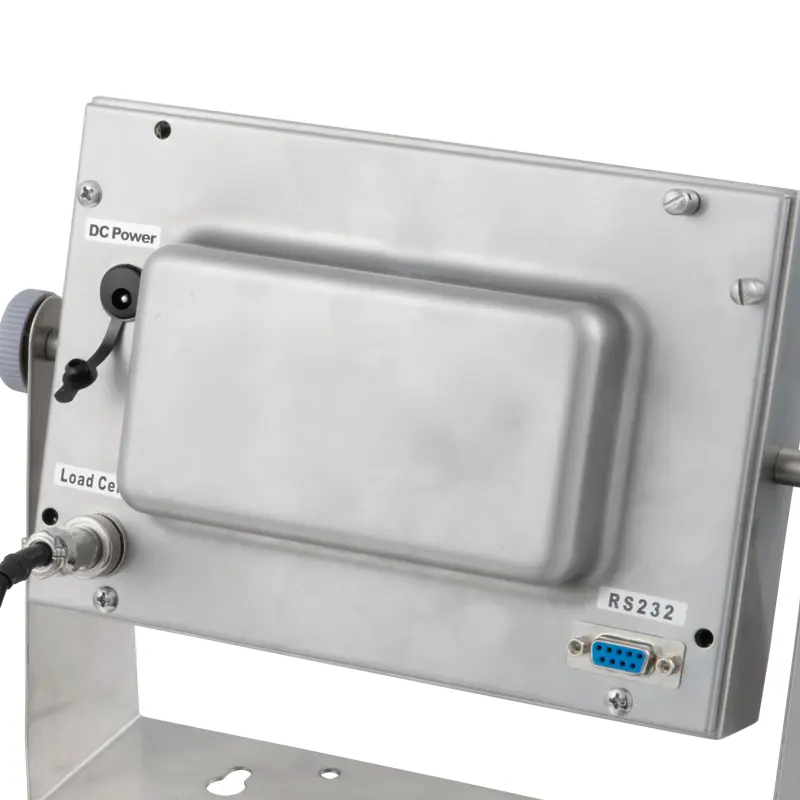

Interfaces1x bidirectional RS-232 interface
1x analog output 4...20 mA optional
CalibrationInput / multi-point adjustment possible
Operating temperature-10 ... +40 °C / max. 85 % RH
Power supply12 V / 1000 mA AC adapter (battery not possible)
Dimensions weighing platform1200 x 1200 x 100 mm
Weightca. 85 kg

Delivery Scope

1 x WeighbridgePCE-RS 2000
1 x Display
1 x 230 V AC adapter (110 V AC for USA)
1 x User manual
