Weighing Platform PCE-ERS 100

Order no.: PCE-ERS 100
GTIN (EAN): 4250348734174
US$ 303.00
ex. VAT, ex. delivery costs
:
4250348734174
PCE-ERS 100
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Weighing Platform / max. weighing range up to 100 kg / control function / weighing surface of 230 x 230 mm / battery and mains operation

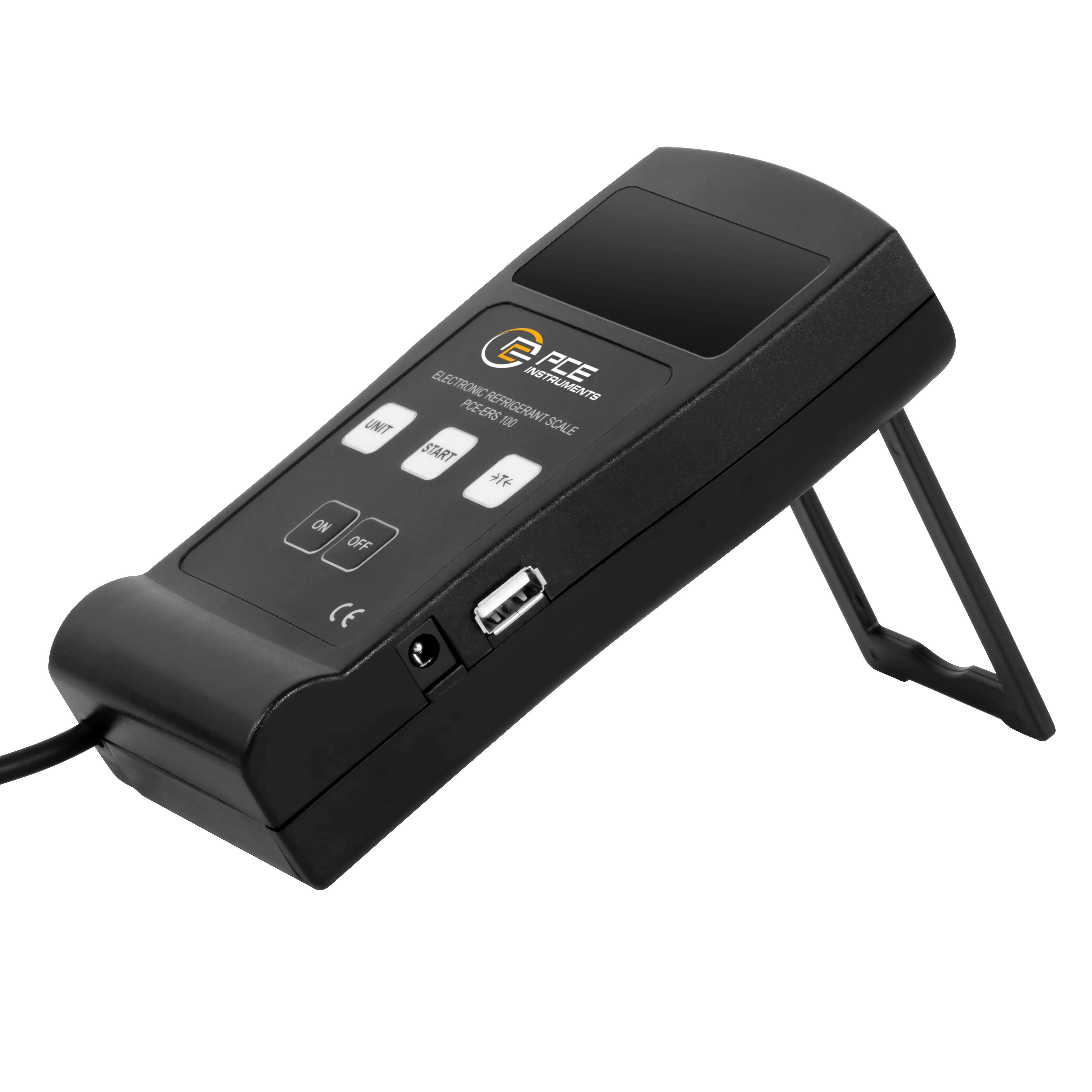

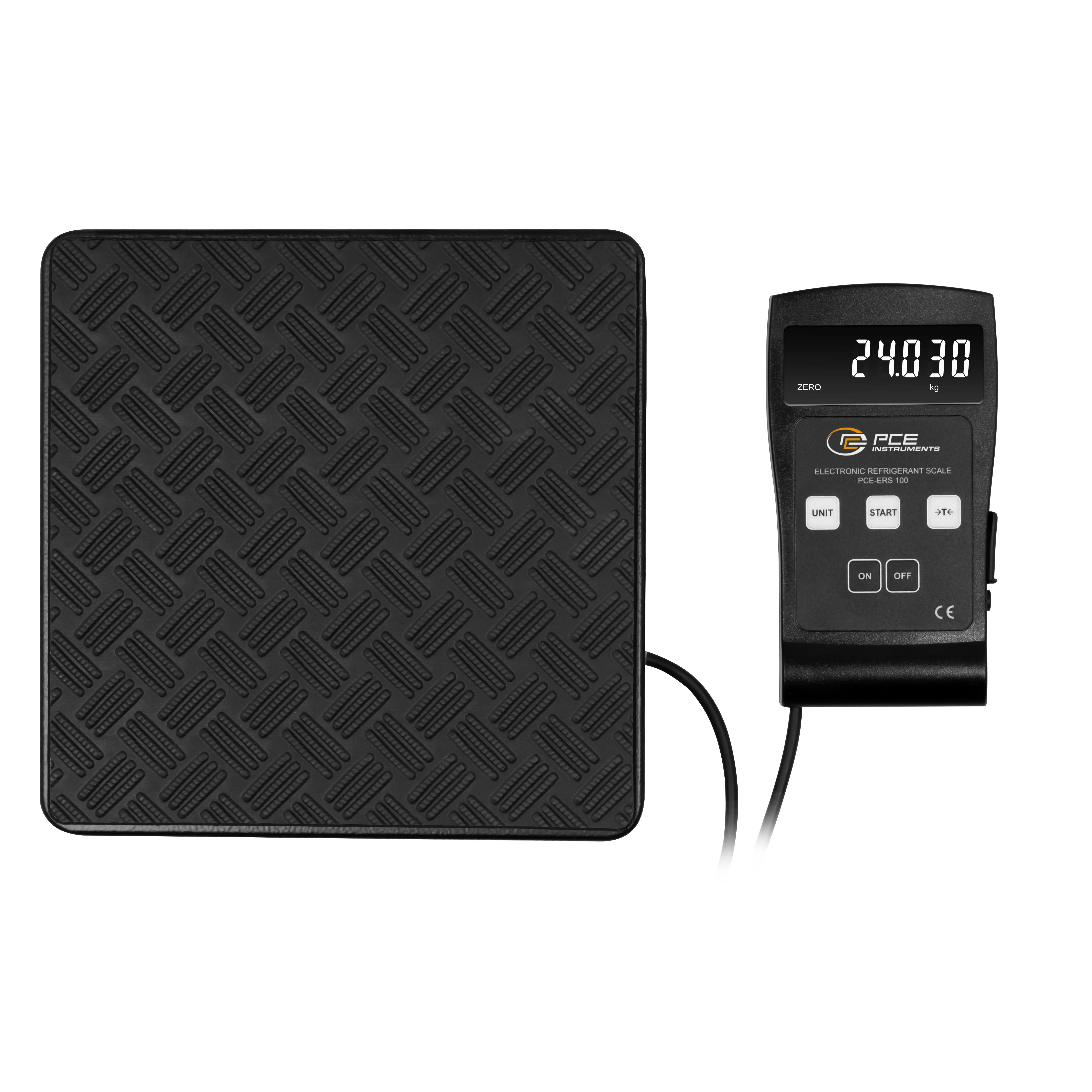

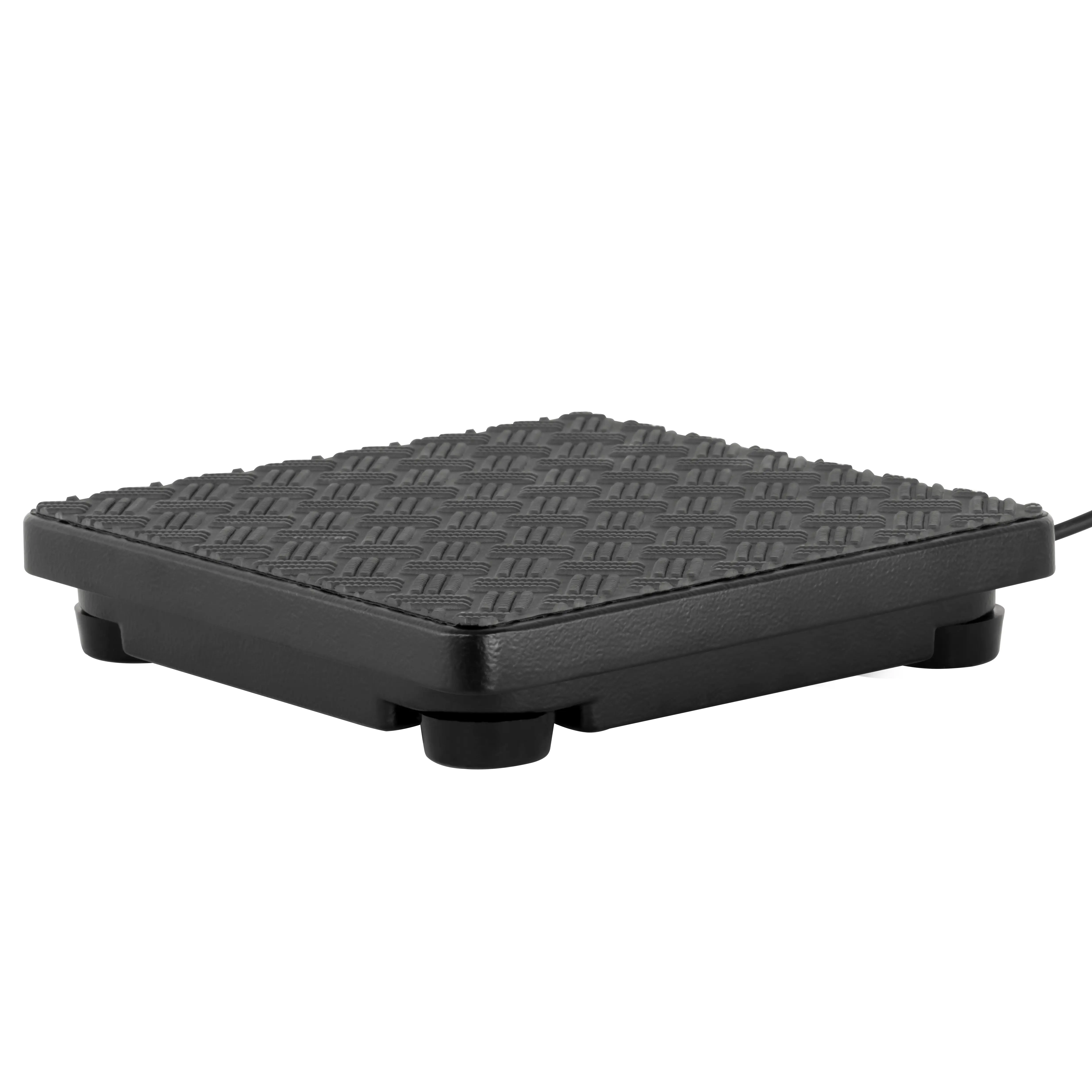

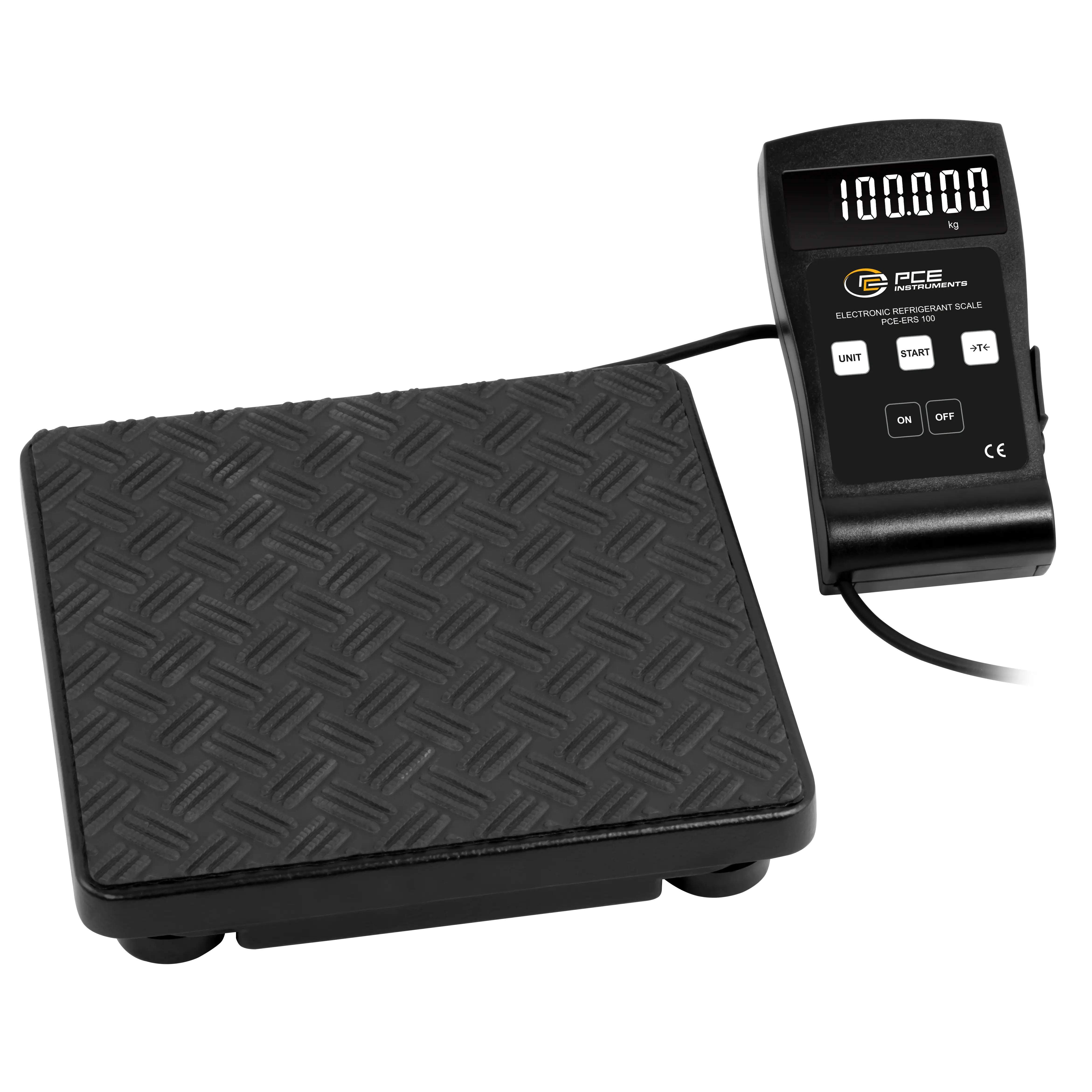

Our Weighing Platform are the ideal solution for precisely filling and emptying refrigerant cylinders. The Weighing Platform offer a measurement range of 0.01 ... 100 kg with a resolution of 0.01 kg, enabling precise measurements. The 230 x 230 mm platform of the Weighing Platform is equipped with a non-slip rubber coating, which ensures that the bottles can be placed safely. The external control unit makes the Weighing Platform ideal for flexible, mobile use. The control function makes it possible to set a weight at which the scales emit an audible alarm.

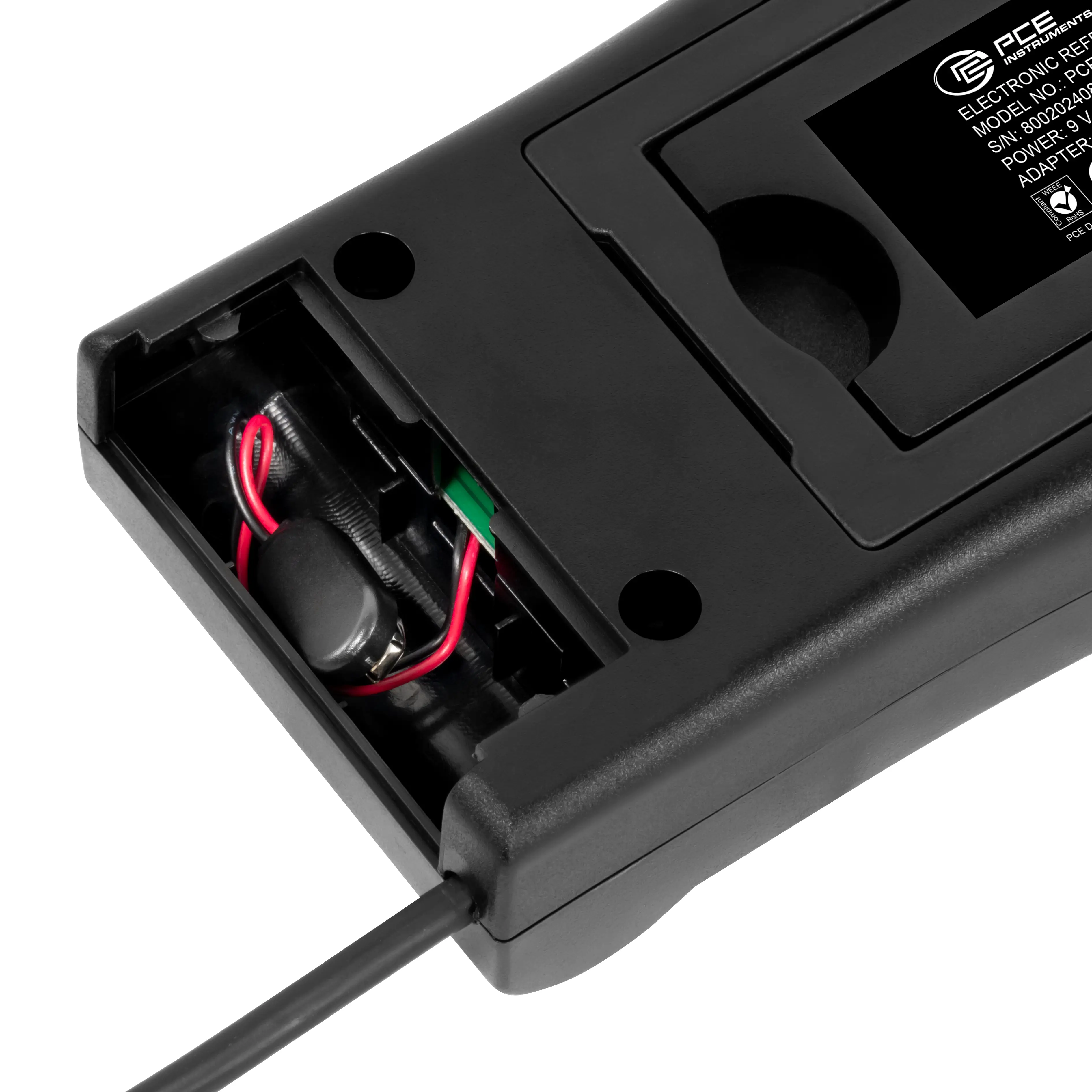

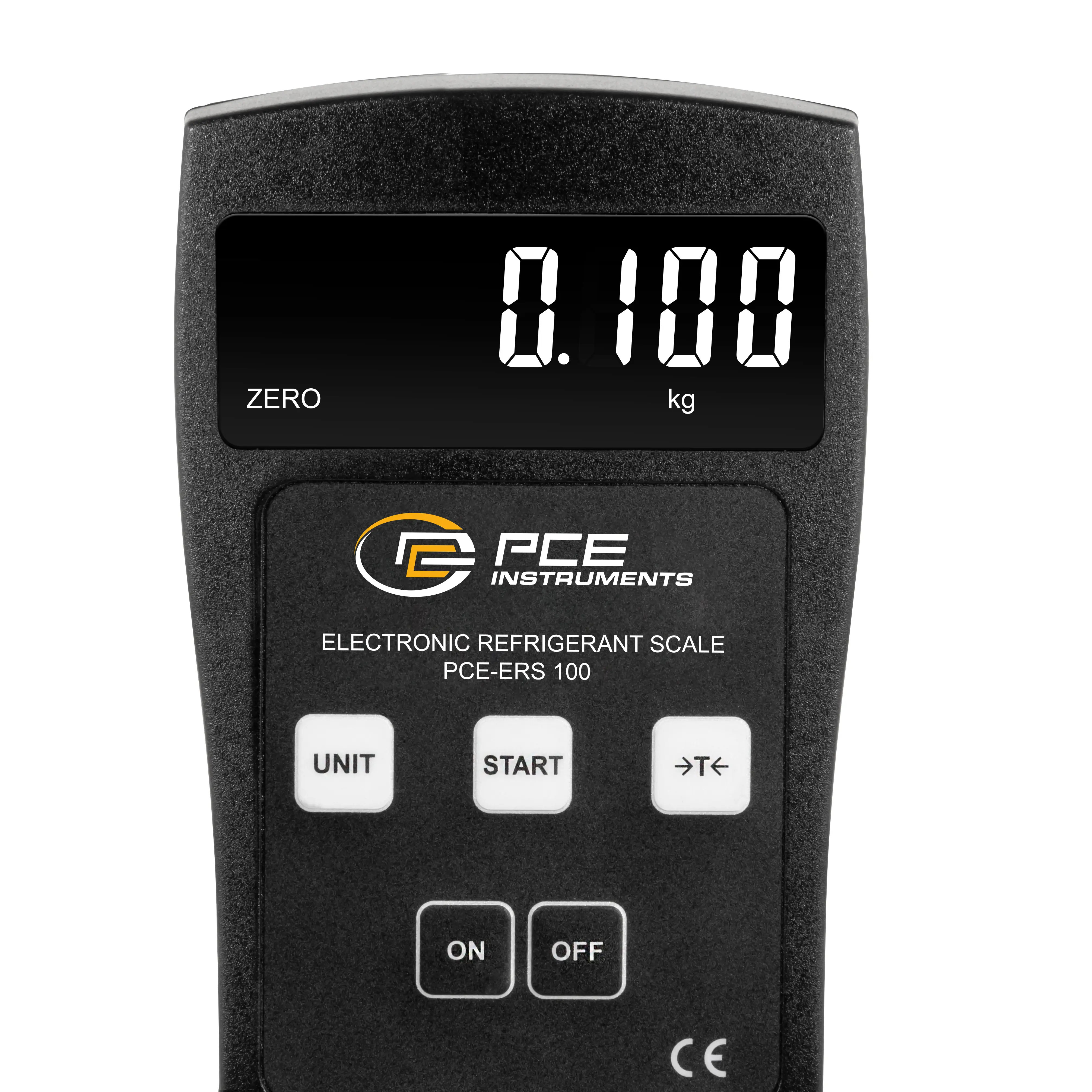

Measurements can be carried out in various units such as kg, g, lb, oz and lb/oz. The practical tare function allows the tare weight to be hidden so that only the actual change in weight is measured. A backlit display makes them easy to use even in poor lighting conditions. The scales can be operated either with a 9 V block battery or via the mains and have an automatic power off function to extend the battery life. The Weighing Platform are supplied in a practical carrying case.


Highlights

- weighing range up to 100 kg
- control function
- units: kg, g, lb, oz, Ib/oz
- automatic power off
- weighing surface of 230 x 230 mm

Specification

Weighing range
Measurement range up to [Max]  100 kg
Resolution [d]  0,01 kg
Accuracy  ±0.01 kg

General technical data
Units  Ib/oz, kg, g, lb, oz
Display type  LCD
Display size  2,8 Inch

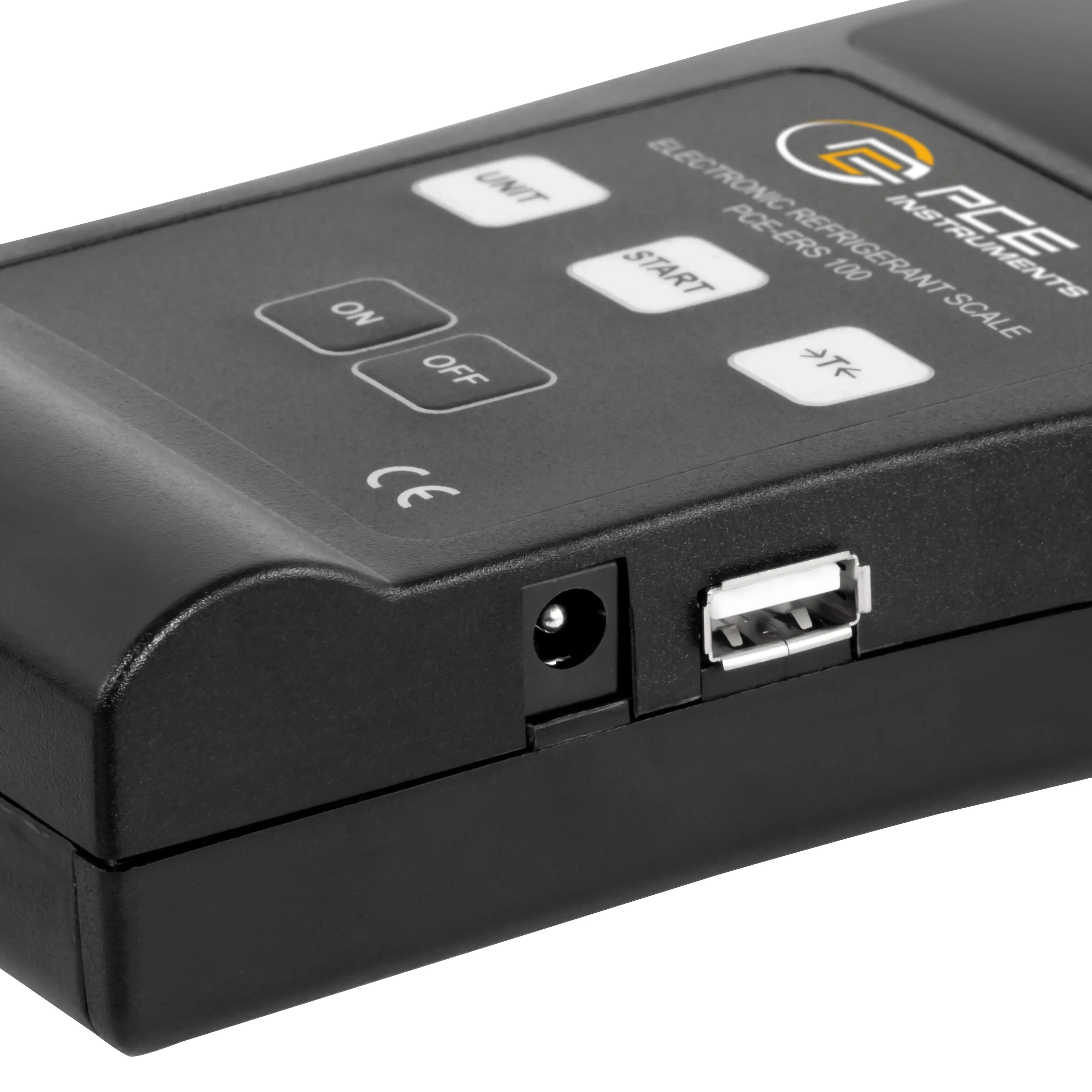

Interface  USB
Operating time  60 h
Automatic power-off  15 min
Cable length  1,3 m
Alarm  Acoustic
Scale type  Single-range scales
Minimum load [min]  0,01 kg
Menu language  English, English (GB)
Protection class (device)  IP40
Power supply  6 V DC, 200 mA
Weight  2061 g
Other dimensions  Display: 160 x 85 x 38
Operating conditions  0 ... 40 °C , 0 ... 90 % RH
Storage conditions  0 ... 40 °C , 0 ... 90 % RH
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Dimensions ( L x W x H )  230 x 230 x 45 mm

Delivery Scope

1 x Weighing Platform PCE-ERS 100
1 x 9 V block battery

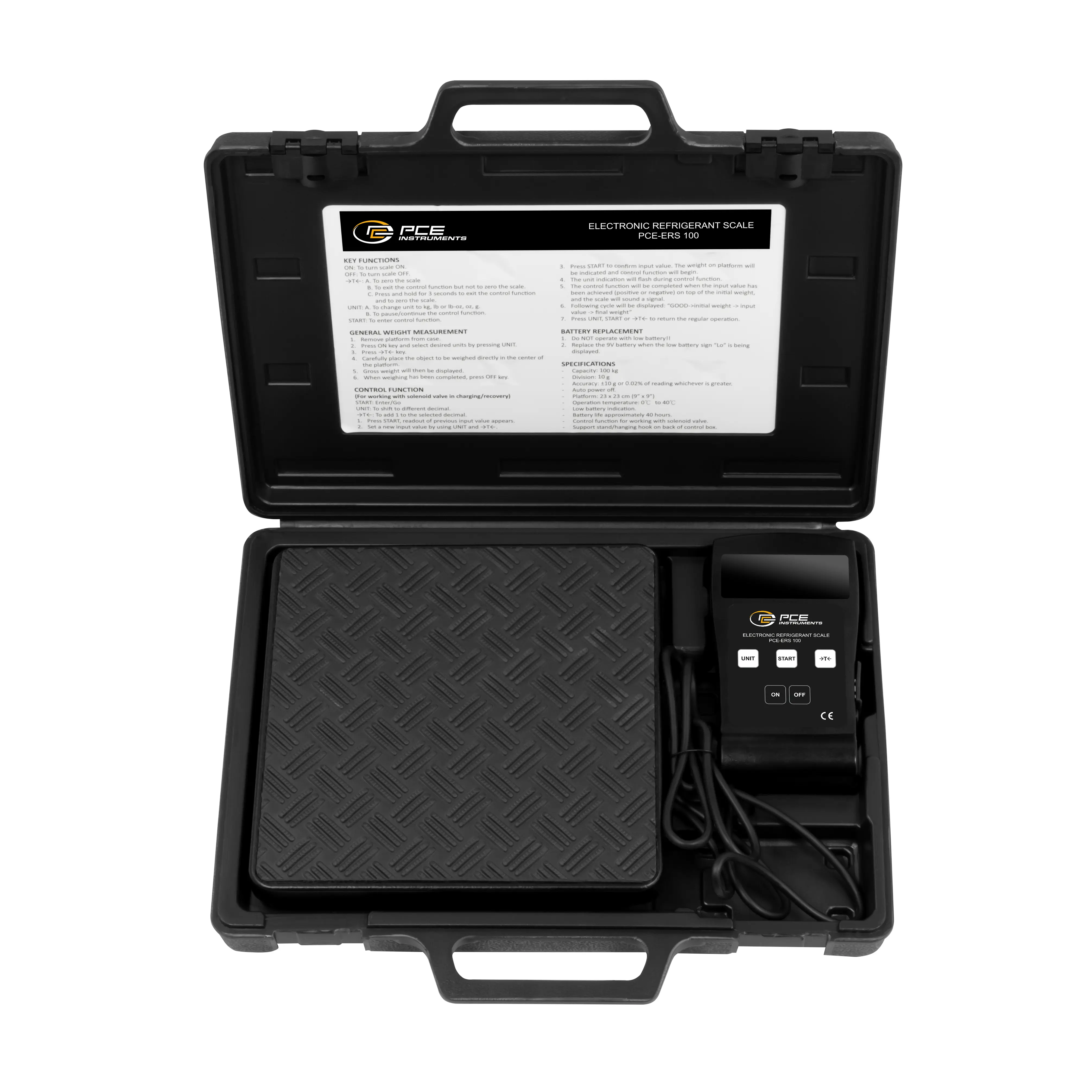

1 x carrying case
1 x quick start guide
