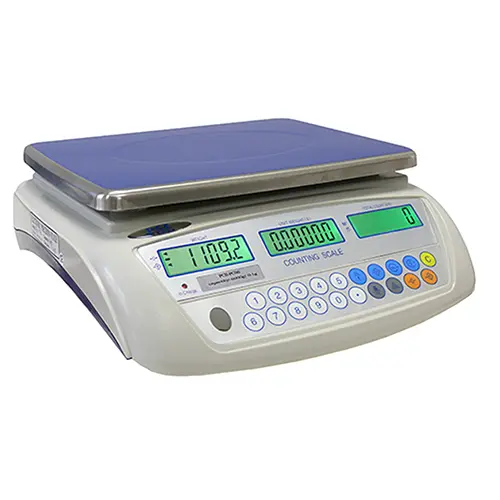

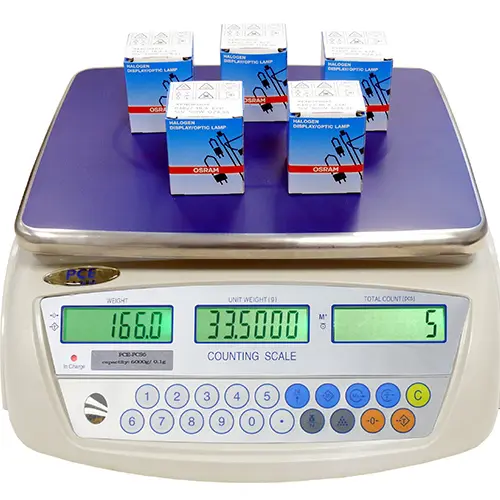

Weighing Platform PCE-PCS 6

Order no.: PCE-PCS 6
GTIN (EAN): 4250348701190

US$ 482.00
ex. VAT, ex. delivery costs
:
4250348701190
PCE-PCS 6
Available in: 1-2 days

Description

Inventory Scale PCE-PCS 6
Two models of inventory scale for piece counting function (6 kg and 30 kg) / high resolution / RS-232 interface / powered by an internal accumulator

Inventory scale is designed for professional counting and weighing. Both memory cells and the possibility of being powered by an accumulator turn this inventory scale in an irreplaceable device. This inventory scale is the ideal instrument to determine the amount of pieces accurately, for instance while carrying out inventories. When piece counting function is active, the single weight of a piece is determined by the scale, but if value is known, it can be entered via the keyboard. If a number of pieces is placed on the scale, the inventory scale will be able to show the weight, the reference weight as well as the amount of pieces placed on it. By means of the optional printer of labels, weighing results can be printed directly. Printing is automatic when the value on the display is stabilized. A previous tare can be performed or it is even possible to introduce the reference weight via the keyboard. RS-232 interface is available for the inventory scale. Through the optional software weighing data can be transferred to a computer.

Highlights

- Functions: TARE, ZERO, auto calibration (requires external weight, not included), backlight on / off, piece counting accumulation and auto average
- Displays gross weight, unit weight and total quantity of pieces (pcs)
- Reference weight established by TARE or keyed manually
- Programmable (99 memory positions)
- Set communication via RS-232 port to automatic output when reading is stable or continuous output
- Powered by electric power supply (included) or battery
- Low power indicator signals need to recharge battery
- Features adjustable feet for leveling

Specification

Weight range: 0.1 ... 6000 g / 6 kg (metric only)
Readability: 0.1 g
Repeatability: ± 0.1 g
Reproducibility: ± 0.3 g
Minimum weight: 0.1 g
Minimum piece weight: 0.1 g
Memory positions for reference weight: 99
Stabilization time: 3 seconds
TARE range: 100 %
Weighing units: Grams or kilograms (metric only)
Screen: 3 x 6 digit LCD
Calibration: Auto (requires external weight, not included)
Dimension of weighing pan: 230 x 310 mm / 9.06 x 12.21"
Operating temperature range: 0 ... + 40 °C / + 32 ... + 104 °F
Power: 220 V AC electric power supply (included) or battery
Housing: ABS plastic
Interface: RS-232 port
Dimensions of scale: Approx. 320 x 320 x 125 mm / 12.6 x 12.6 x 4.92"
Weight of scale: Approx. 2.8 kg / 6.18 lb

Delivery Scope

1 x PCE-PCS 6 weighing platform
1 x electric power supply
1 x user manual
