Weighing Platform PCE-PP 20

Order no.: PCE-PP 20
GTIN (EAN): 4250348723505

US$ 76.00
ex. VAT, ex. delivery costs
:
4250348723505
PCE-PP 20
Available in: 1-2 days

Description

Weighing platform with a resolution of 1 g / Piece counting function / Different units /
Easy to read LC display / Automatic switch-off after 5 minutes of inactivity /
Mains and battery operation / Optionally with ISO calibration certificate

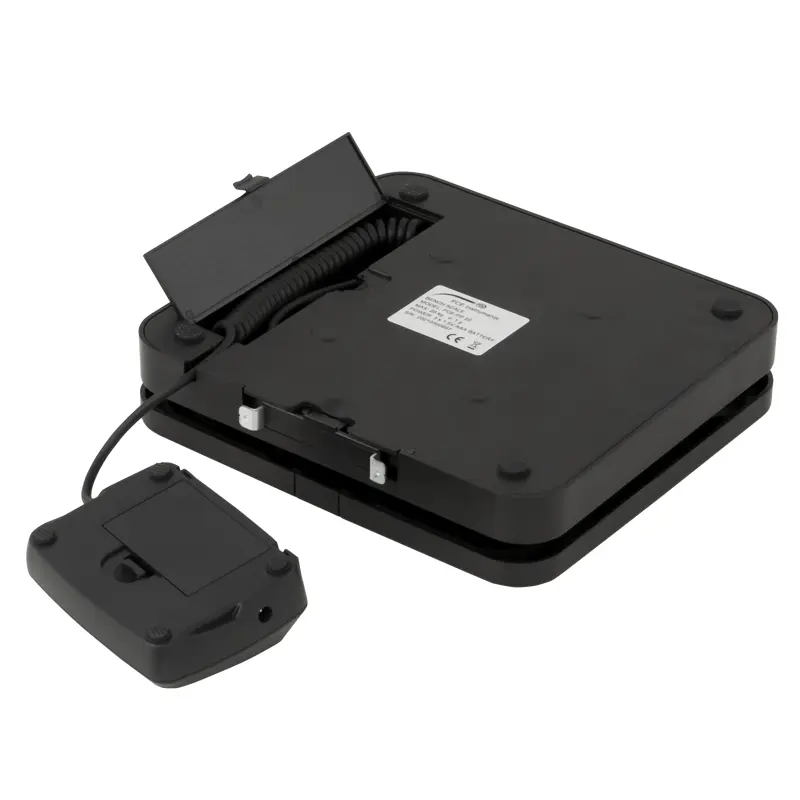

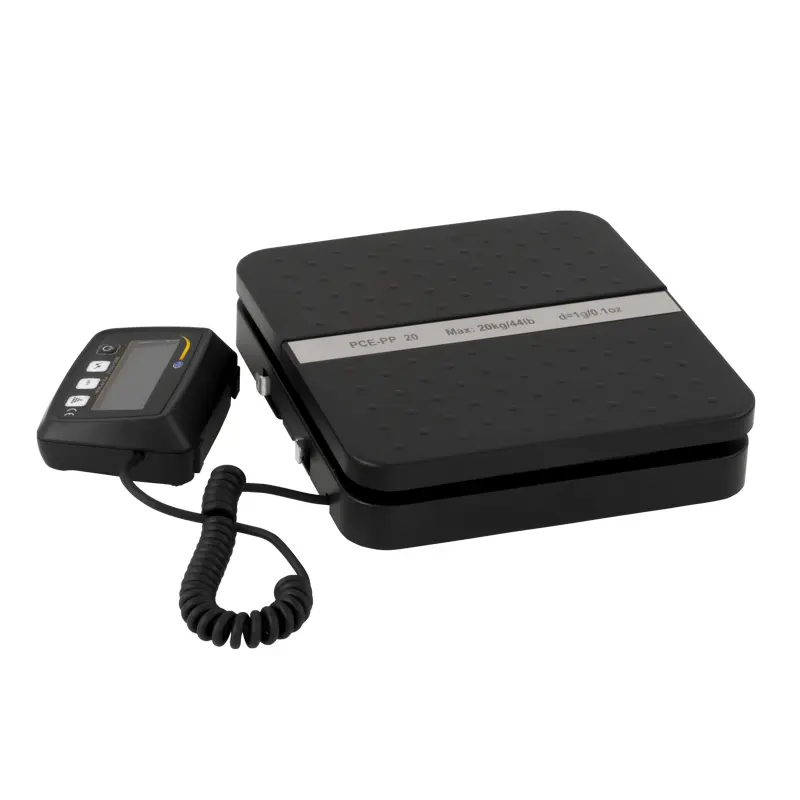

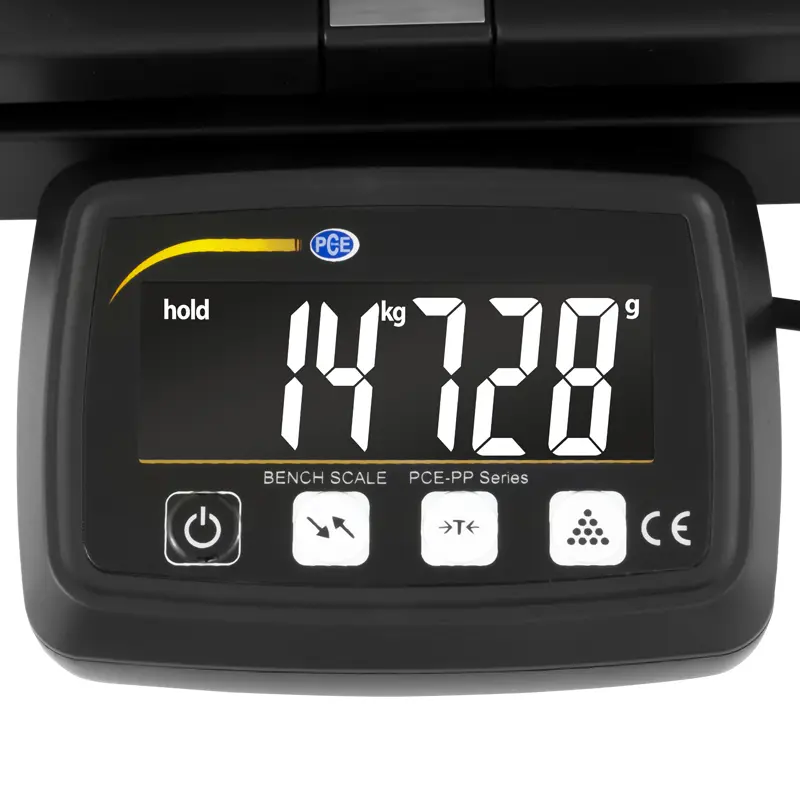

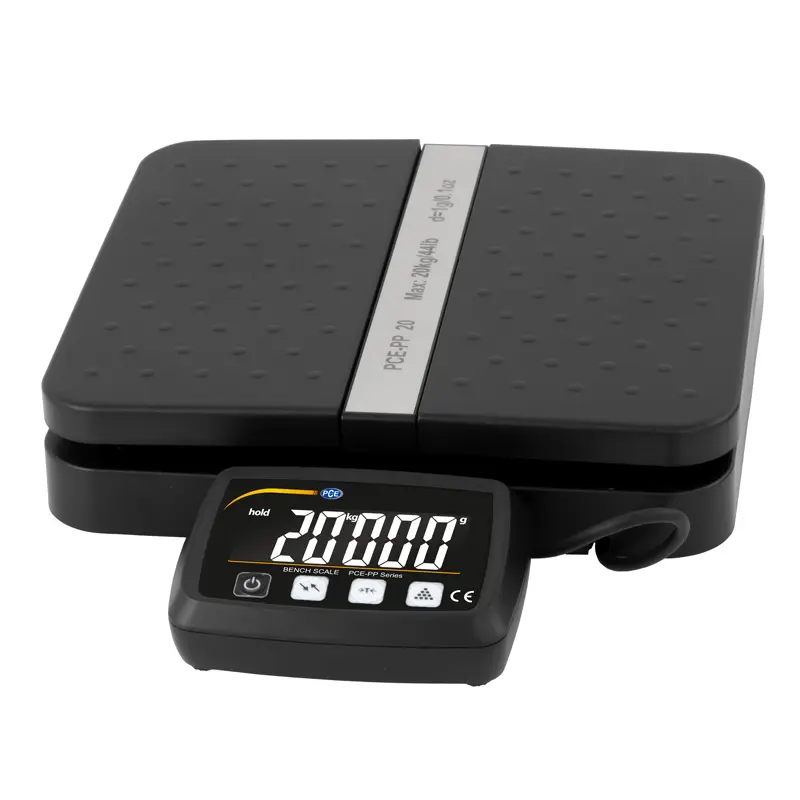

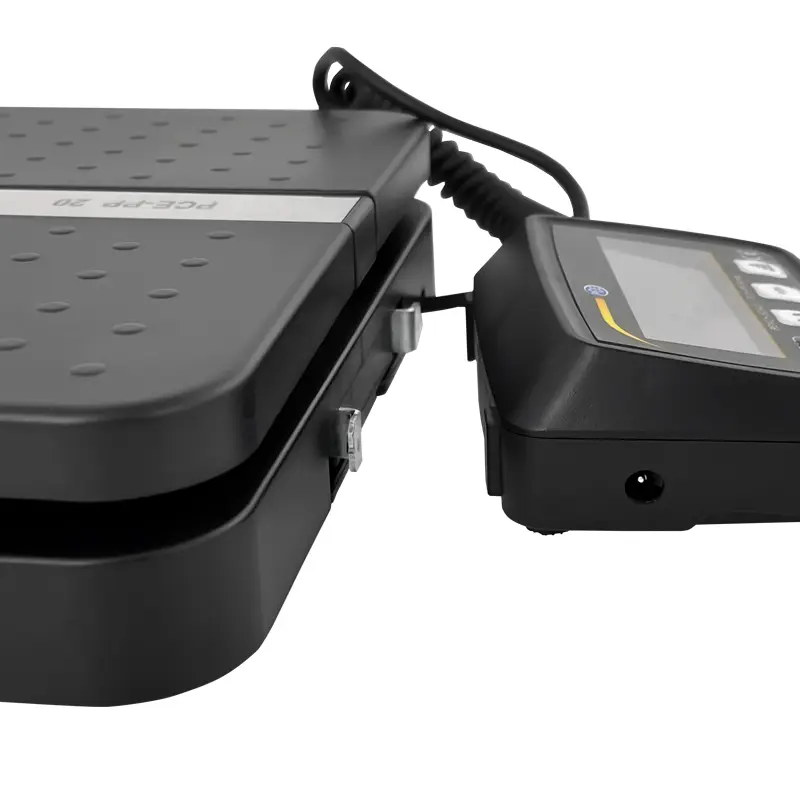

The weighing platform is a very precise measuring device for determining weights due to the resolution of 1 g and an accuracy of ± 0.1% of measuring range. The display units available on the parcel scale are lb / oz, kg / g, kg, g, lb, oz. The illuminated LC display of the parcel scale is sized in such a way that the measured value can be read easily even in very bright ambient conditions. In addition, the display of the parcel scale can be removed and can be positioned freely because of the spiral cable.

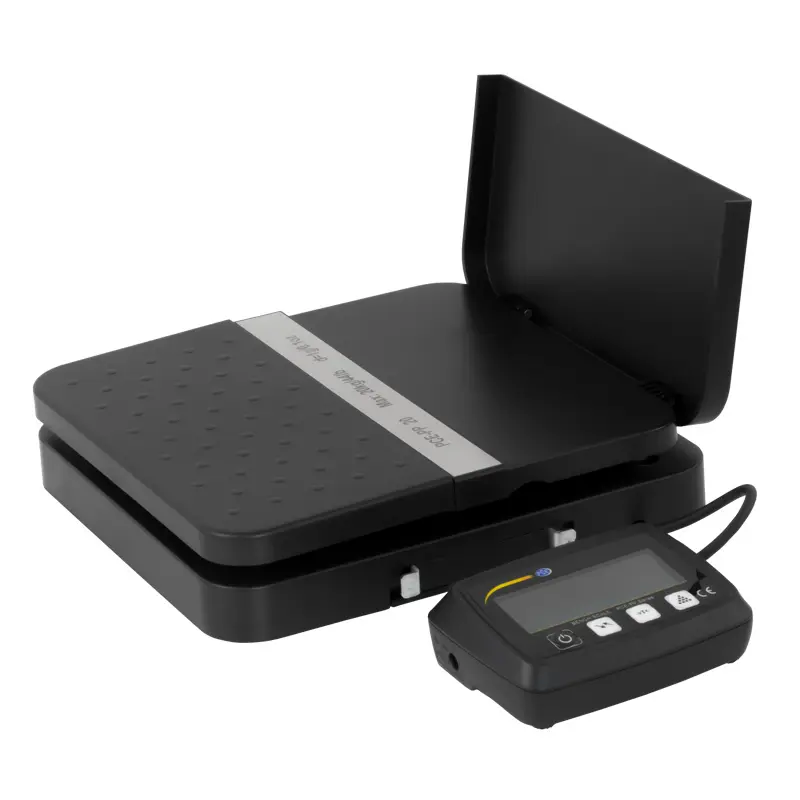

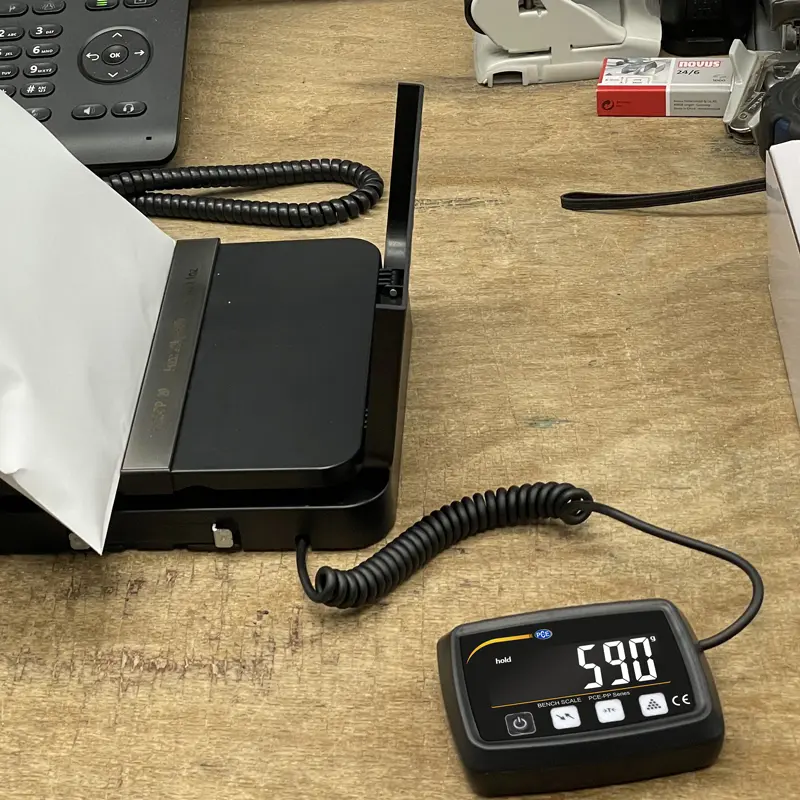

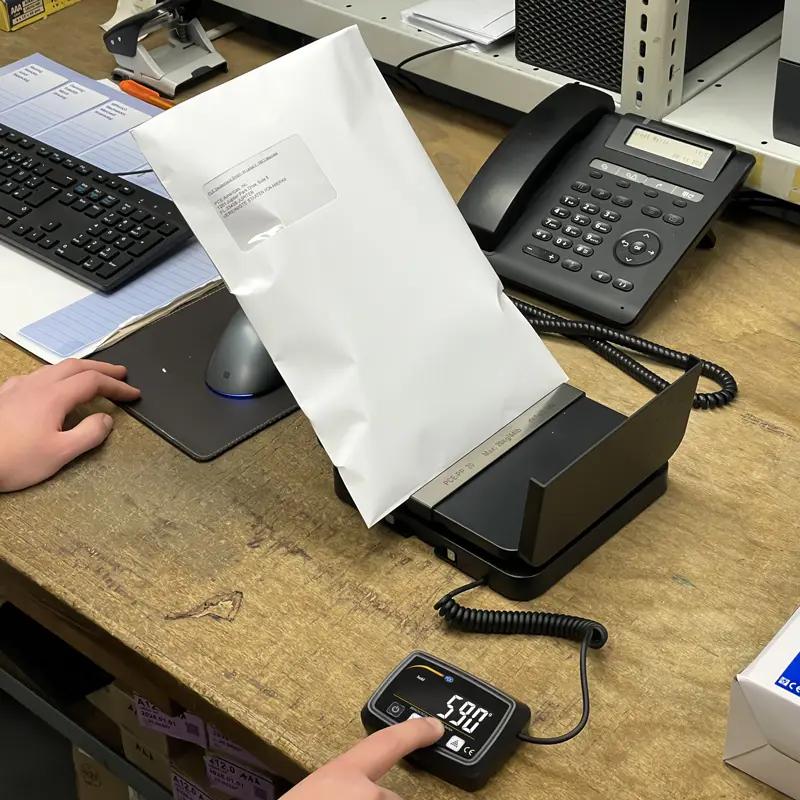

With the piece counting function, the weighing platform can determine the number of objects, such as screws. For this purpose, a reference measurement is first carried out on the parcel scale. The piece counting function is then started by pressing a button. As an extension of the piece counting function, the weighing surface of the parcel scale can be opened to the side. In this way, for example, stacked envelopes or similar can be weighed with the parcel scale without them falling off the weighing surface.

The weighing platform is supplied with power via a 6 V DC mains power adapter. In addition, the parcel scale can be operated with three 1.5 V batteries. This means that the parcel scale can be used both stationary and mobile. The automatic switch-off ensures that the parcel scale switches itself off within 5 minutes of inactivity. PCE Instruments optionally offers an ISO calibration certificate for the parcel scale.

Highlights

- Removable display
- Hinged weighing platform
- Resolution 1 g
- Various units
- Piece counting function
- Battery and mains operation

Specification

Measuring range0 ... 20 kg / 0 ... 44 lb
Resolution1 g / 0.03 oz
Accuracy±0.1% of full scale

Further specifications
Unitslb / oz, kg / g, kg, g, lb, oz
Exceeding the measuring range  "O-Ld"
Low battery voltage"LO"
Automatic shutdownafter 5 minutes of inactivity
Power supply3 x 1.5 V AAA batteries
Power supply mains
primary: 100 ... 240 V AC / 50, 60 Hz
 secondary: 6 V DC, 1 A
Ambient conditions5 ... 35 °C / 41 ... 95 °F, <90% RH, non-condensing
Dimensions platform
198 x 180 x 44 / (120 (unfolded)) mm / 7.8 x 7.0 x 1.7 / (4.7 (unfolded)) "
Dimensions display92 x 68 x 30 mm / 3.6 x 2.6 x 1.1"
Display cablespiral cable with a length of 1100 mm / 43"
Weight810 g / 28.5 oz

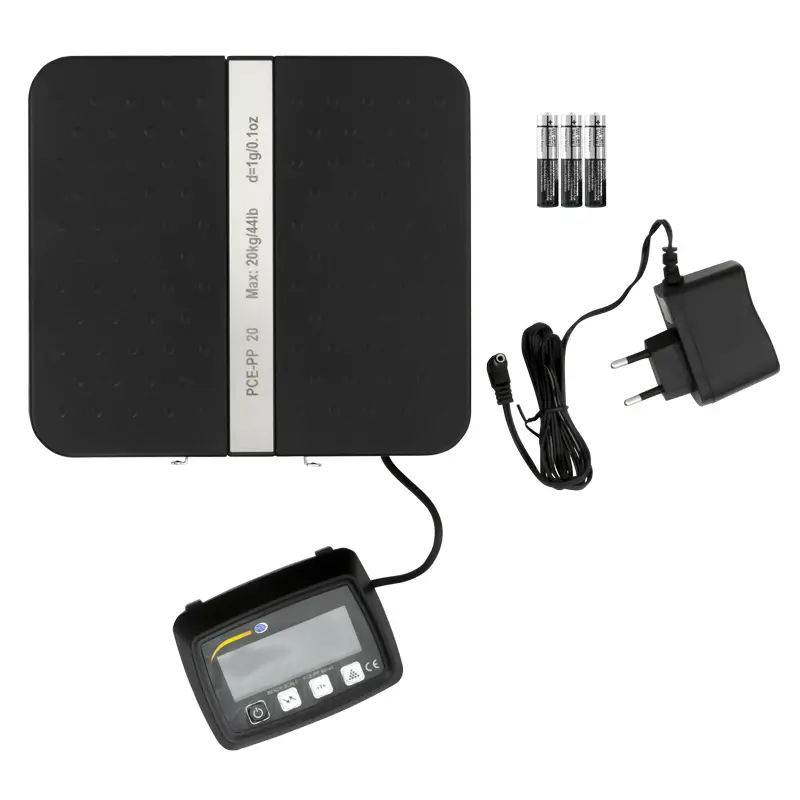

Delivery Scope

1 x Weighing Platform PCE-PP 20
3 x 1.5 V AAA batteries
1 x Mains power adapter
1 x Instruction manual
