£ 4,254.00

Price excl. VAT &. delivery
2 year Warranty

Our Handheld Tachometer is the ideal solution for mobile applications. With its large measuring range of 50 to 50,000 FPM, it is versatile and offers precise measurements for a wide range of applications. Thanks to its compact size and low weight, it is extremely handy and can be taken anywhere. Equipped with 28 energy-saving and long-lasting LEDs as a light source, the Handheld Tachometer guarantees reliable performance and a long service life.

Measuring range: 50 ... 50000 FPM
Resolution: 0.1 FPM
Accuracy: ±0.01%
External trigger input
Light source: 28 LEDs
Phase shift: 0 ... 359 °
Flash duration: 8 ... 100 µs
Measurement on coils and flat sheets

Handheld Tachometer PCE-VT 204-ICA incl. ISO Calibration Certificate

£ 872.00

Price excl. VAT &. delivery
2 year Warranty

The PCE-VT 204 is a multifunction handheld tachometer with the ability to accurately measure both rotation and vibration. An ideal tool for the testing and inspection of machine parts and components such as motors, transmissions, gears, gear boxes and wheels, this multi-purpose device measures revolutions per minute (RPMs) as well as three-axis vibration, i.e., speed or velocity, displacement and acceleration.

Vibration measurement: velocity or speed, acceleration and displacement
RPM measurement: contact / mechanical and noncontact / optical
Internal memory for up to 1000 readings
Min / max and data hold functions
RS-232 port
incl. ISO Calibration Certificate

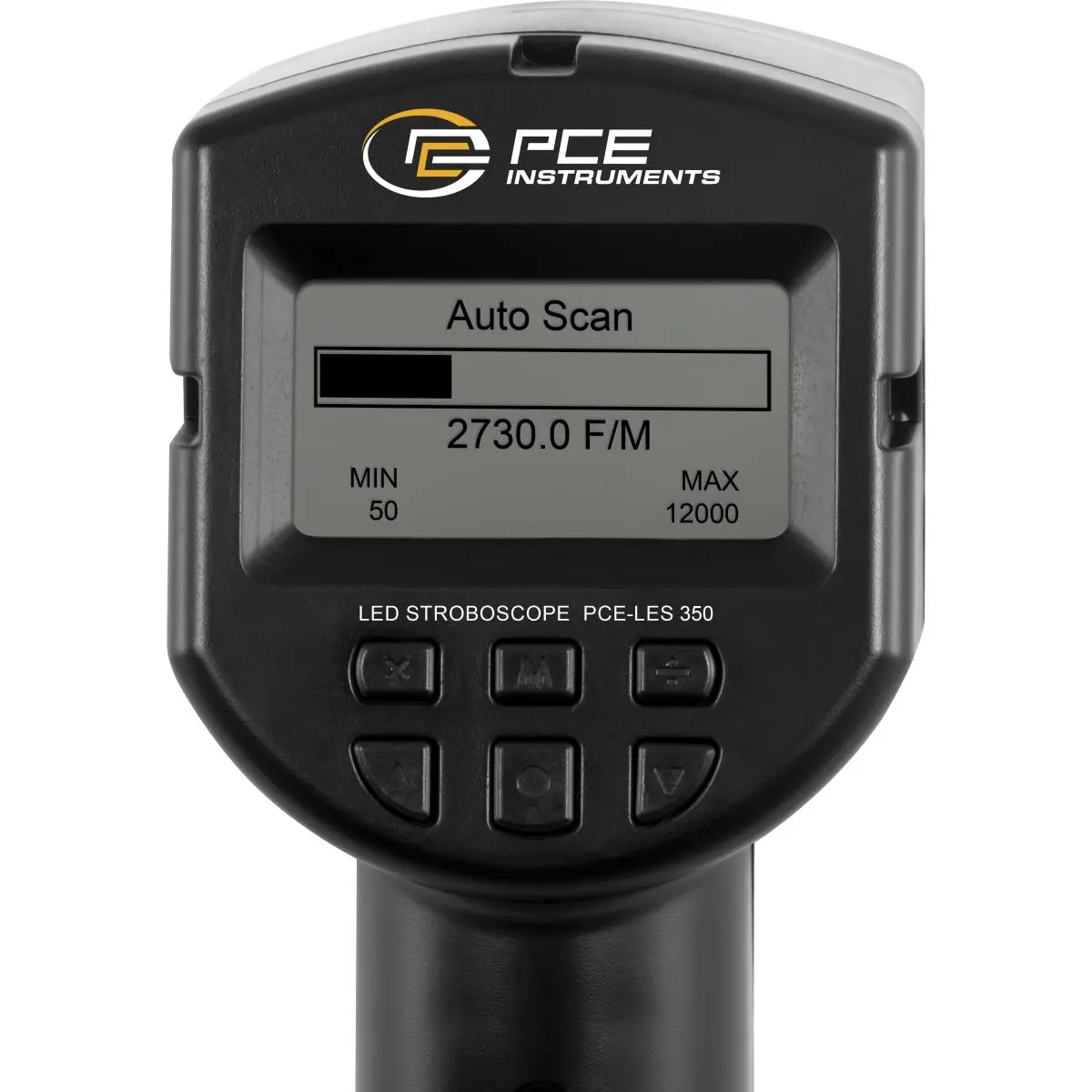

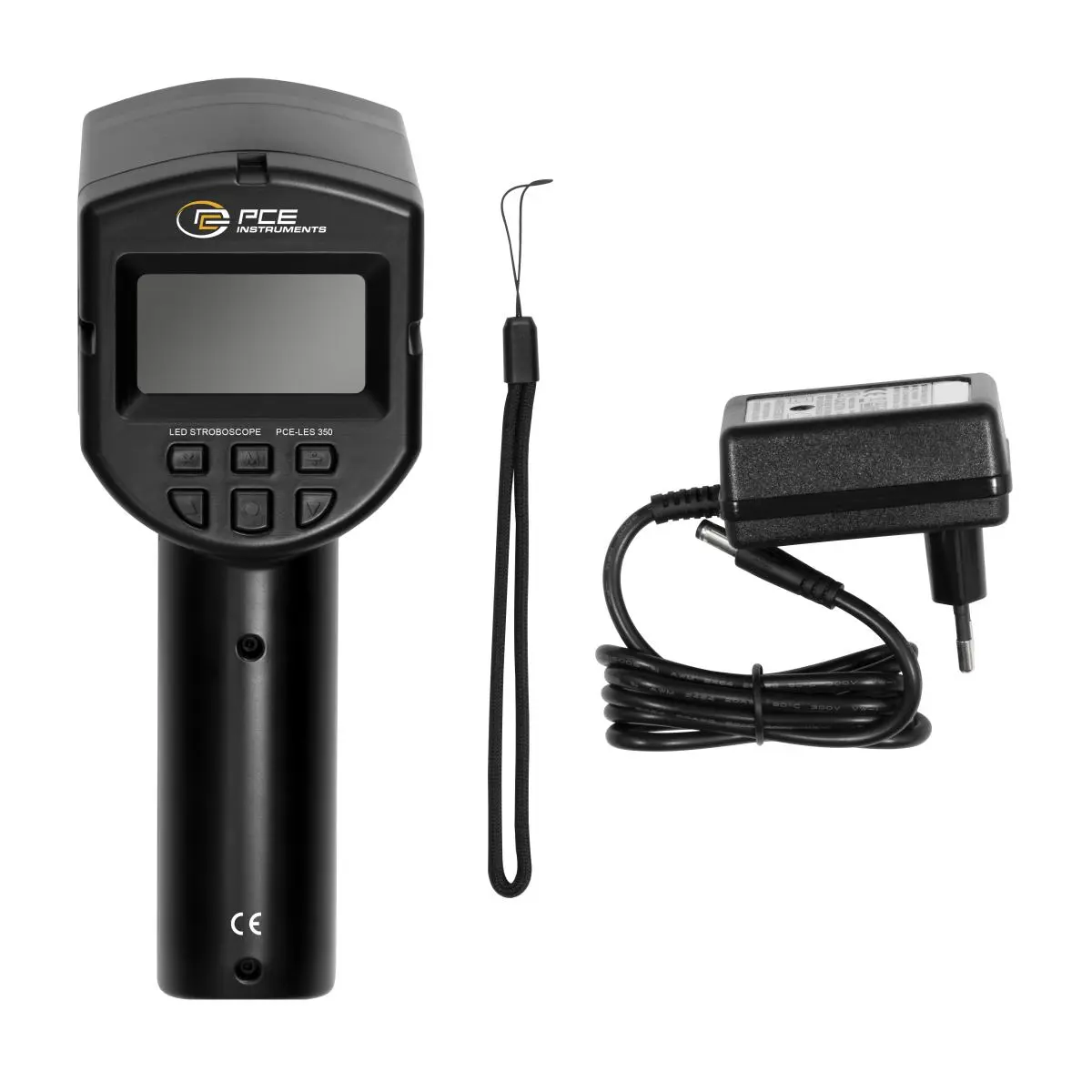

Handheld Tachometer PCE-LES 350

£ 850.00

Price excl. VAT &. delivery
2 year Warranty

Our Handheld Tachometer offers the possibility of precisely recording and analysing fast movements. With a measurement range of 50 to 1200 FPM, movements at different velocities can be analysed with high precision. Our Handheld Tachometer uses 144 high-performance LEDs to generate short, intense flashes of light that are emitted at regular intervals.

Measurement range: 50 ... 12000 FPM
Resolution: 0.1 FPM
Accuracy: 0.01 %
Frequency: 1 ... 200 Hz
Resolution: 0.01 Hz
Accuracy: 0.01 %
Adjustable measuring duration: 1 ... 250 min.
Pulse width: 8 ... 50 µs ( ±1µs )

Handheld Tachometer PCE-VT 204

£ 717.00

Price excl. VAT &. delivery
2 year Warranty

Vibration measurement: velocity or speed, acceleration and displacement
RPM measurement: contact / mechanical and noncontact / optical
Internal memory for up to 1000 readings
Min / max and data hold functions
RS-232 port

Handheld Tachometer PCE-LES 103UV-365

£ 539.00

Price excl. VAT &. delivery
2 year Warranty

Motion analysis of rotating machines is quick and easy with our handheld tachometer. The handheld tachometer is equipped with 3 UVA high-power LEDs, which together generate a light intensity of 202 μW/cm² at a distance of 30 cm.

Flash frequency 60 … 300000 FPM
Accuracy: 0.003 % of the setting or ± 1 LSD
Light colour: UV light (365 … 370 nm)

Digital pulse width modulation
Phase shift - 360 ° … + 360 °
Quick adjustment using x2 and ÷2 button
3 UVA high-power LEDs

Handheld Tachometer PCE-DSX 20-ICA Incl. ISO Calibration Certificate

£ 534.00

Price excl. VAT &. delivery
2 year Warranty

The handheld tachometer PCE-DSX 20-ICA is mostly used for speed or vibration measurement or for motion observations. This handheld tachometer has a small design and has a low weight. Thus, the handheld tachometer can be conveniently used even in measurements in hard to reach places.

Function

Speed: 50 … 35000 RPM / FPM
Flash frequency
phase shift
Lamp type: Xenon flash
Flash response time: 10 … 30 μs
With trigger input
Incl. ISO calibration certificate

Handheld Tachometer PCE-LES 103UV-385

£ 489.00

Price excl. VAT &. delivery
2 year Warranty

Motion analysis of rotating machines is quick and easy with our handheld tachometer. The handheld tachometer is equipped with 3 high-power UVA LEDs (385 nm), which together generate a light intensity of 317 μW/cm² at a distance of 30 cm.

Flash frequency 60 … 300000 FPM
Light colour: UV light (380 … 390 nm)
Accuracy: 0.003 % of the setting or ± 1 LSD
Digital pulse width modulation
Phase shift - 360 ° … + 360 °

Quick adjustment with x2 and ÷2 button
3 UVA high-power LEDs

Handheld Strobe Tachometer PCE-OM 15-ICA Incl. ISO Calibration Certificate

£ 487.00

Price excl. VAT &. delivery
2 year Warranty

PCE-OM 15-ICA is a handheld strobe tachometer with trigger functionality. This easy-to-use portable digital stroboscope gun features high / low range selection and push-button rate control to scale the flash rate slower (x½) and faster (x2). In addition, two knobs allow coarse and fine adjustment of the flash rate.

Measuring range: 50 … 30000 rpm
Bright 6500K xenon light bulb
10 mm / 0.4 in 5-digit LCD
Incl. ISO Calibration Certificate

Handheld Tachometer PCE-LES 103-ICA incl. ISO-Calibration Certificate

£ 482.00

Price excl. VAT &. delivery
2 year Warranty

The motion analysis of rotating machines is quick and easy with our handheld tachometer. The handheld tachometer is equipped with 3 high-power LEDs, collectively producing a light intensity of 11,730 Lux at 20 cm / 1000 Hz. With the handheld tachometer, you can adjust the flash frequency in both FPM and Hz. Additionally, it is compact, portable, and operates independently thanks to the built-in battery.

Flash frequency 60 … 300,000 FPM
Brightness 3 High Power LEDs
Accuracy: 0.003 % of the setting or ± 1 LSD
6160 lux at 30 cm / 1000 Hz
Digital pulse width modulation
Phase shift - 360° … + 360°
Quick adjustment with x2 and ÷2 buttons

Intuitive control buttons
Clear display
incl. ISO-Calibration Certificate

Handheld Tachometer PCE-T 260-ICA Incl. ISO Calibration Certificate

£ 473.00

Price excl. VAT &. delivery
2 year Warranty

The combination PCE-T 260 is a measuring instrument for use in maintenance, and production. In addition to the stroboscope function, the handheld tachometer also has the option of removing the rotational contacts and measuring temperatures.

Optical tachometer
Measuring range: 5 … 99999 rpm
Contact tachometer
Stroboscope LED
Temperature measurement: Type K, PT 1000, Infrared
LED Flash frequency: 100 … 99990 FPM
Temperature measurement: Type K, PT 1000
Infrared
Incl. ISO calibration certificate (only for the tachometer function)

Handheld Tachometer PCE-DSX 20 with Trigger Input

£ 424.00

Price excl. VAT &. delivery
2 year Warranty

The handheld tachometer PCE-DSX 20 is mostly used for speed or vibration measurement or for motion observations. This handheld tachometer has a small design and has a low weight. Thus, the handheld tachometer can be conveniently used even in measurements in hard to reach places.

Function

Speed: 50 … 35000 RPM / FPM
Flash frequency
phase shift
Lamp type: Xenon flash
Flash response time: 10 … 30 μs
With trigger input

Handheld Strobe Tachometer PCE-OM 15

£ 371.00

Price excl. VAT &. delivery
2 year Warranty

PCE-OM 15 is a handheld strobe tachometer with trigger functionality. This easy-to-use portable digital stroboscope gun features high / low range selection and push-button rate control to scale the flash rate slower (x½) and faster (x2). In addition, two knobs allow coarse and fine adjustment of the flash rate.

Measuring range: 50 … 30000 rpm
Bright 6500K xenon light bulb
10 mm / 0.4 in 5-digit LCD

Handheld Tachometer PCE-T 240-ICA incl. ISO Calibration Certificate

£ 371.00

Price excl. VAT &. delivery
2 year Warranty

The handheld tachometer has a contact speed measurement. The measuring range of the contact speed measurement with the handheld tachometer is 0.5 … 99,999 RPM. In addition to the contact measurement, the speed can also be measured optically with the handheld tachometer.

Measuring range contacting: 0.5 … 99,999 RPM
Measuring range optical: 5 … 99,990 RPM
Temperature measurement: Type K, PT1000
Strobe for speed determination
Temperature measurement in °C and °F
incl. ISO Calibration Certificate

Handheld Tachometer PCE-LES 103

£ 356.00

Price excl. VAT &. delivery
2 year Warranty

Flash frequency 60 … 300,000 FPM
Brightness 3 High Power LEDs
Accuracy: 0.003 % of the setting or ± 1 LSD
6160 lux at 30 cm / 1000 Hz
Digital pulse width modulation
Phase shift - 360° … + 360°
Quick adjustment with x2 and ÷2 buttons

Intuitive control buttons
Clear display

Handheld Tachometer PCE-T 260

£ 343.00

Price excl. VAT &. delivery
2 year Warranty

Optical tachometer
Measuring range: 5 … 99999 rpm
Contact tachometer
Stroboscope LED
Temperature measurement: Type K, PT 1000, Infrared

Handheld Tachometer PCE-T 238-ICA Incl. ISO Calibration Certificate

£ 331.00

Price excl. VAT &. delivery
2 year Warranty

The handheld tachometer PCE-T 238 is a battery-powered device that allows mobile use. The handheld tachometer can perform a contact measurement as well as a non-contact measurement. It is also possible to perform a measurement of the surface velocity. The handheld tachometer allows a measurement of up to 99,999 revolutions per minute. This measuring range is possible with contactless measurements with the optical tachometer.

Continuous data output
Contactless measurement range: 5 … 99,999 RPM

Contact measurement range: 0.5 … 19,999 RPM

Surface measurement range: 0.05 … 1,999.9 m/min
Measuring distance without contact: 5 … 150 cm / 1.9" … 4.9 ft
Incl. ISO calibration certificate

Handheld Tachometer PCE-DSX 10

£ 260.00

Price excl. VAT &. delivery
2 year Warranty

The handheld tachometer uses the so-called "stroboscope effect" to analyse fast movements, vibrations or periodic processes. With the help of 9 high-intensity LEDs, the handheld tachometer generates short flashes of light with an illuminance of up to 1500 lx. These flashes of light are emitted in synchronisation with the frequency of the movement to be monitored until the object appears to stand still to the observer.

Measuring range: 60 … 999999 rpm
Resolution: 1 rpm
Accuracy: 0.001 %
Frequency: 1 … 16666.66 Hz
Fine adjustment in steps, +10, +100 FPM
Light source 9 LEDs
2.6" graphic display

Handheld Tachometer PCE-T 240

£ 254.00

Price excl. VAT &. delivery
2 year Warranty

Measuring range contacting: 0.5 … 99,999 RPM
Measuring range optical: 5 … 99,990 RPM
Temperature measurement: Type K, PT1000
Strobe for speed determination
Temperature measurement in °C and °F
