The PCE-N20U is a process indicator used for signal processing. Designed for quick and easy system integration, the digital process indicator features a large 5-digit LED display with tricolor coding dependent on the measured values. The process indicator also can output signals via two open collector outputs when a threshold value is exceeded.
The two open collector outputs allow for the usage of external alarm systems in combination with the process indicator. The threshold values and other settings can be adjusted using the free software LPCon and the PCE-PD 14 programming adaptor (sold separately - see accessories for details). An integrated power supply system of 24 V allows for the direct connection of sensors and transducers to the process indicator. In addition, the face of the process indicator has an IP65 ingress protection rating against dust and water.
| Input (selectable) | 0 ... 10 V 0 ... 60 mV ± 10 V |
| Input impedance | 1 MΩ |
| Accuracy | ± (0.2 % FS + 1 digit) |
| Scale | 2 points |
| Averaging time | 0.5 ... 20 s |
| Outputs | 2 x open collector outputs, 30 V, 20 mA |
| Sensor power supply | 24 V, 30 mA |
| Display | 5-digit, 7-segment, three-color LED display, 14 mm (0.55") high |
| Display range | -19999 ... 99999 |
| Ambient temp. range | During operation: -10 °C ... +55 °C (+14 °F ... +131 °F) During storage: -25 °C ... +85 °C (-13 °F ... +185 °F) |
| Max. humidity | 95 % RH non-condensing |
| Dimensions | 96 x 48 x 64 mm (Approx. 3.78 x 1.89 x 2.52") |
| Panel installation | According to DIN standard: 92 x 45 mm (Approx. 3.62 x 1.77") |
| Power supply (selectable) | 85 ... 253 V AC/DC 20 ... 40 V AC/DC |
| Power consumption | < 6 VA |
| Ingress protection rating | Face: IP65 |
| Weight | < 250 g (0.56 lb) |

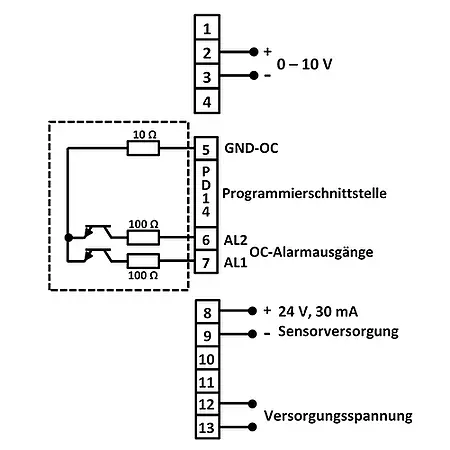

| Mounting | Mounting clips with screws, connection via screw terminals (connection plan on the housing) |
| Housing | Solid plastic |
