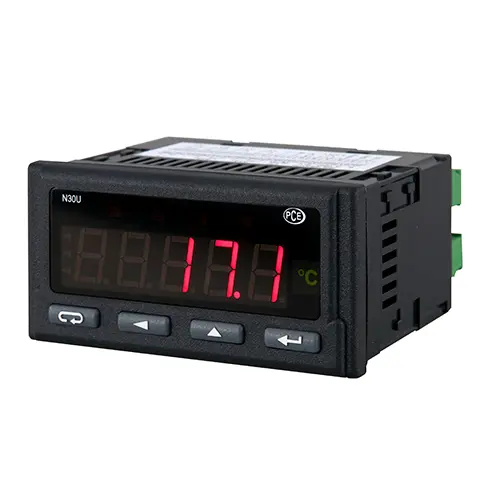

Pressure Indicator PCE-N30U

Order no.: PCE-N30U
GTIN (EAN):
£ 168.00
£ 201.60
price ex. (VAT / delivery)
PCE-N30U
Delivery time: 5-7 working days
built-in
No
5-Digit LED
Yes (NO 230 V / 0,5 A)

Description

Pressure Indicator PCE-N30U / for several different input signals / three-coloured display /
2 alarm relays / internal real-time clock / optional pulse output and RS485 interface /
IP65 protected front side

The pressure indicator can process several different input signals, such as 0...410/4010 Ohm, -10...+63 mV DC, -13...+13 V DC, -24...+24 mA DC or signals from thermocouples and resistance thermometers. This makes the pressure indicator applicable in a wide range of applications. The measured values are shown on the large LED display of the pressure indicator.



The display is three-coloured and can change its colour depending on the actual indicated value. This makes it easier to evaluate the values. It is also possible to program threshold values, which trigger a signal through the two alarm outputs. The input signal of the pressure indicator is freely scalable. The pressure indicator is available with different measuring units, outputs and power supplies. You can select the particular parameters further below.


Highlights

- 21-point scaling
- IP 65 protection on the front
- three-coloured display
- two alarm outputs
- 4 buttons on the front
- optional RS485 interface, OC pulse output, changeover relay, analogue output

Specification

Input (selectable) 2-, 3-wire Pt100, Pt500, Pt1000
thermocouples type J, K, N, E, R, S
resistance 0 ... 410 Ohm / 4010 Ohm
voltage -10 ... +63 mV DC, -13 ... +13 V DC
current -24 ... +24 mA DC
Sampling rate 1 per second
Resolution 16 bit
Internal resistancevoltage measurements: 1 MOhm
current measurements: 12 Ohm
Scaling21 points
Display5-digits, 7-segments, LED, three-coloured
Display range-19,999 ... +99,999
Measuring unitselectable from 56 different units
Outputs2 closing relays 250 V / 0.5 A
Sensor power supply: 24 V DC, max. 30 mA
Additional outputs (selectable)2 changeover relays 250 V / 0.5 A
RS485 interface
analogue output (4 ... 20 mA / 0 ... 10 V)
open collector pulse output
Environmental conditions During operation: -25 °C ... 55 °C / 25 ... 95 % RH
During storage: -33 °C ... +70 °C / 25 ... 95 % RH
Dimensions 96 x 48 x 93 mm
Panel cutout 92 x 45 mm (according to DIN standard)
Power supply (wählbar) 85 ... 253 V AC/DC
20 ... 40 V AC/DC
Protection classFront: IP 65
Weight < 200 g
Mounting Mounting clips with screws,

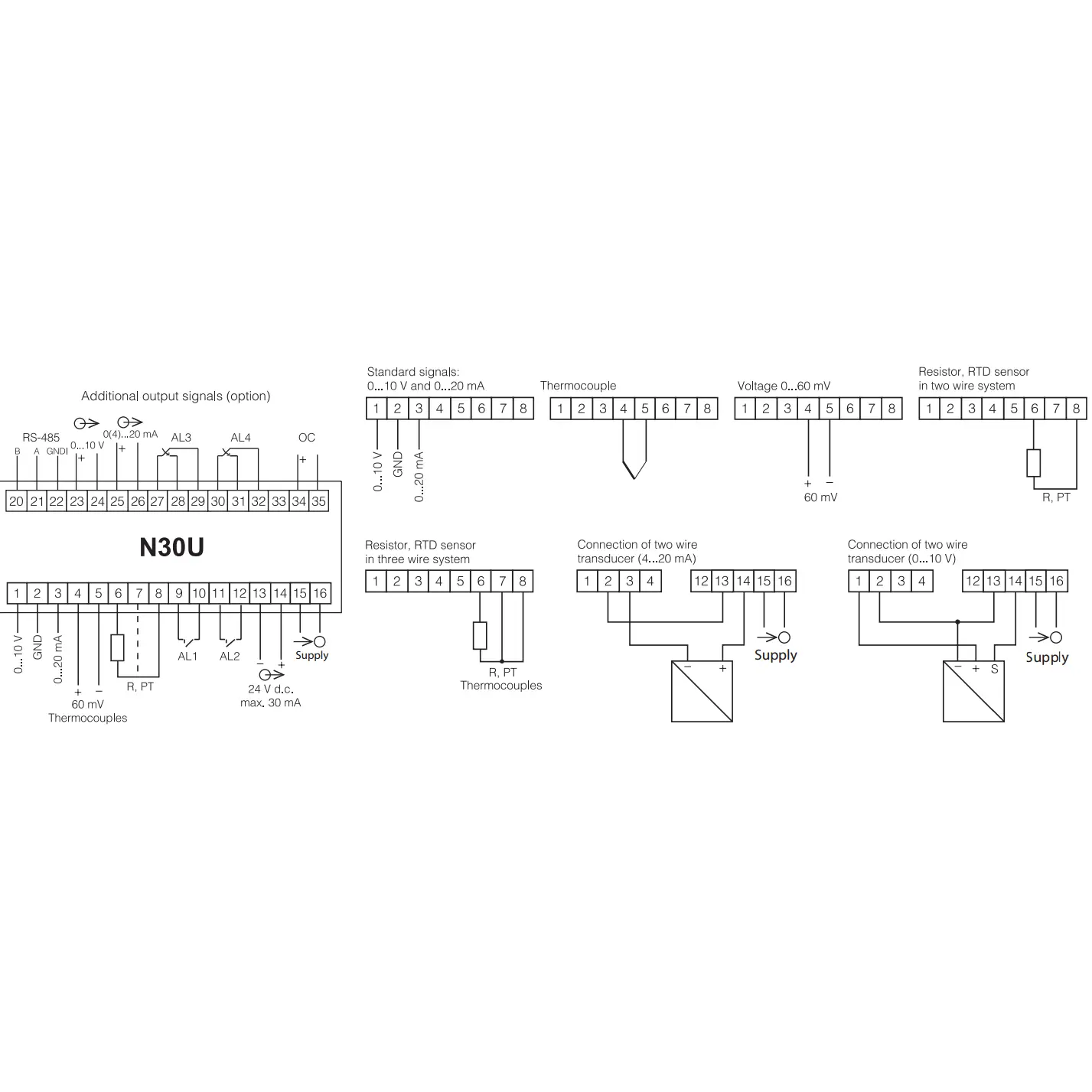

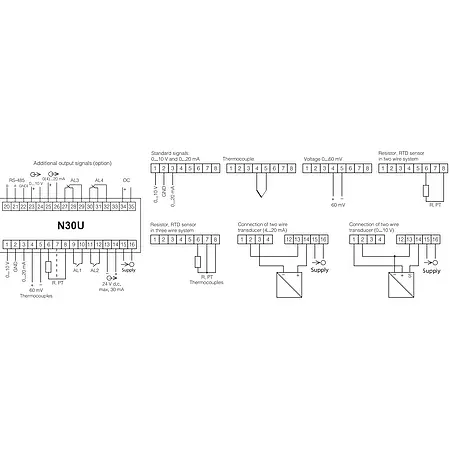

Connection via screw terminals (connection plan on the housing)
Housingplastic

Delivery Scope

1 x Pressure Indicator PCE-N30U
1 x mounting-clips
1 x gasket seal
1 x instruction manual
