Panel Meter PCE-DPD-F2

Order no.: PCE-DPD-F2

GTIN (EAN): 4250348719591

Accessory

Transistor Module for PCE-DPD Series

£ 47.00

Force Sensor PCE-C-R8LFC series 10-50 kg

£ 201.00

Force Sensor PCE-C-R10LFC series 5-100 kg

£ 201.00

Force Sensor PCE-C-R12LFC-H4 series 5-50 kg

£ 231.00

Force Sensor PCE-C-R13LFC-H7 series 5-100 kg

£ 201.00

Force Sensor PCE-C-R19LFC

£ 201.00

Force Sensor PCE-C-R20LFC-H11 series 5-2000 kg

£ 231.00

Analog Output Module for PCE-DPD Series

£ 89.00

Modbus RTU Module for PCE-DPD Series

£ 89.00

Relay Module for PCE-DPD Series

£ 47.00

RS232 Module for PCE-DPD Series

£ 89.00

RS485 Module for PCE-DPD Series

£ 89.00

SSR-Module for PCE-DPD Series

£ 47.00

Table Housing PCE-TGH450

£ 117.00

Description

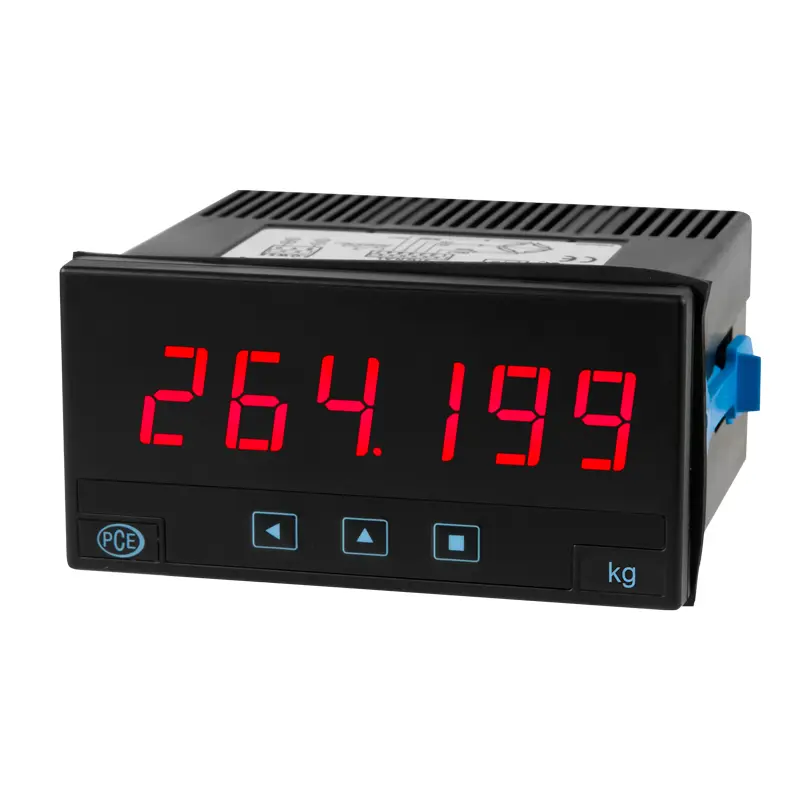

Panel Meter PCE-DPD-F2
Mounting display for strain gauges with mV & V / Modular output cards / 6 digit LED display / 230V or 24V power supply

The built-in display is used to indicate the force and weight detected by force sensors and load cells with strain gauges. The output signal of the measuring cell is irrelevant because the panel meter makes it possible to display the correct weight in mV / V based on the set sensitivity. The panel meter shows the measured values on a 6-digit LED display. The measuring range could theoretically be between -199999 ... 999999. Depending on the desired and adjusted scaling, a corresponding unit sticker can be applied to the installation indicator.

The panel meter can directly supply voltage to the connected measuring cell with strain gauges. The supply voltage can be selected between 5V and 10V. Depending on the voltage selected, up to 8 or 4 force or load cells can be connected to the panel meter. A special feature of this digital display for mV / V is the modular output concept. Different, changeable output cards are available depending on the application.

Highlights

- Digital display for strain gauges
- mV / V input
- 3 different measuring speeds
- Modular output cards available
- 1/8 DIN panel mounting dimensions
- LED display

Specification

Technical specification for DMS display of the PCE-DPD-F2
Signal Input Range	Accuracy at 25°C	Sensitivity in mV / V at 5V	Sensitivity in mV / V at 10V
0 ... 100 mV DC	± 0.05% of reading	20 mV / V	10 mV / V
0 ... 30 mV DC	± 0.05% of reading	6 mV / V	3 mV / V
0 ... 20 mV DC	± 0.05% of reading	4 mV / V	2 mV / V
0 ... 15 mV DC	± 0.05% of reading	3 mV / V	1.5 mV / V
0 ... 10 mV DC	± 0.05% of reading	2 mV / V	1 mV / V
0 ... 5 mV DC	± 0.05% of reading	1 mV / V	0.5 mV / V
Maximum input voltage		30V in all measuring ranges
Supply voltage measuring cells		5V or 10V
Maximum current		140-mA
Maximum number of measuring cells (with 350 Ohm measuring cells otherwise max. 140-mA)		5V supply: 1 ... 8 measuring cells 10V supply: 1 ... 4 measuring cells
Display		6-digit 7-segment LED display
Units (available by user)		g, kg, t, pcs, mg, lb, N, kN
Colour		Red
Character height		14 mm
Display area		-199999 ... 999999
Decimal		Adjustable after each displayed digit
Under and Over Range display		The display flashes
Measuring rate (adjustable) / response time		16 Hz / 63 ms 50 Hz / 20 ms 60 Hz / 17 ms
Refresh rate display		16 Hz
Electrical connections		Screw connections 1 ... 2.5 mm²
Power supply		11 ... 60V DC / 24/48V AC
Input		Max. 1 W without output cards Max. 4 W with output cards
Degree of protection		Front: IP65
Assembly		Panel cut
Size panel cutout		92 x 44 mm / 3.6 x 1.7 in
Dimensions		96 x 48 x 91 mm / 3.7 x 1.9 x 3.6 in
Weight		About 150 g / < 1 lb
Operating temperature		0 ... 50°C / 32 ... 122°F
Storage temperature		-20 ... 70°C / -4 ... 158°F
Heating time		About 15 minutes
