Sound Sensor PCE SLT-ICA incl. ISO Calibration Certificate

Order no.: PCE-SLT-ICA

GTIN (EAN): 4250348726698

Accessory

Class 2 Acoustic Calibrator PCE-SC 43

£ 126.00

Description

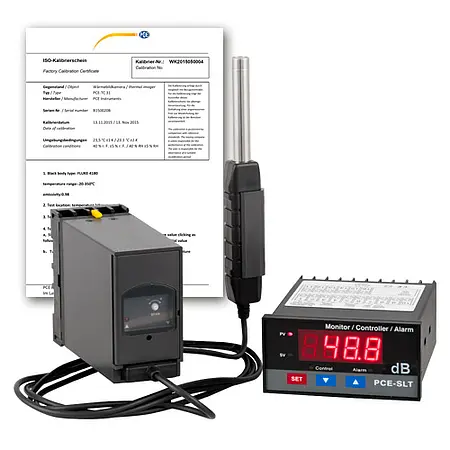

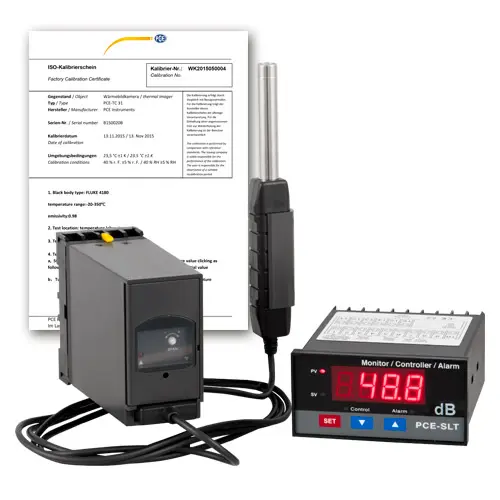

PCE-SLT-ICA sound sensor incl. ISO calibration certificate
For permanent installation with relay output and control output

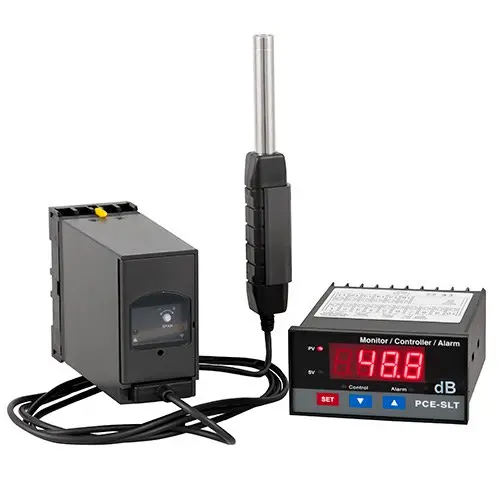

The sound sensor consists of a measuring microphone with handle and a wall bracket with 1.5 m / 4.9 ft cable, a noise transmitter and a digital display. The main field of application of this safety device is in the continuous noise measurement and noise monitoring of factory buildings, production areas and major events such as night clubs, folk festivals or kart tracks. The digital display has a relay output for controlling alarm horns, flashing lights for visual or audible warning and a control output.

The limit for this alarm output can be programmed on the display. Likewise, the analogue output signal can be used to control window flaps or the signals of the transmitter can be stored, evaluated and documented on a logger. The noise warning device is very easy to connect and can be operated via 240V mains current. The digital display for the noise warning display is delivered preconfigured to the noise transmitter and can be used immediately.

Specification

Sound sensor
Measuring range	30 ... 130 dB in three ranges
Resolution	0.1 dB
Accuracy	± 1.5 dB
Rating	A
Power supply	Via transmitter
Cable length	1.5 m / 4.9 ft
Wall mount	To screw on (included)
Environmental conditions	Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F
Microphone	1/2" precision electret microphone
Standard	IEC 61672 class II

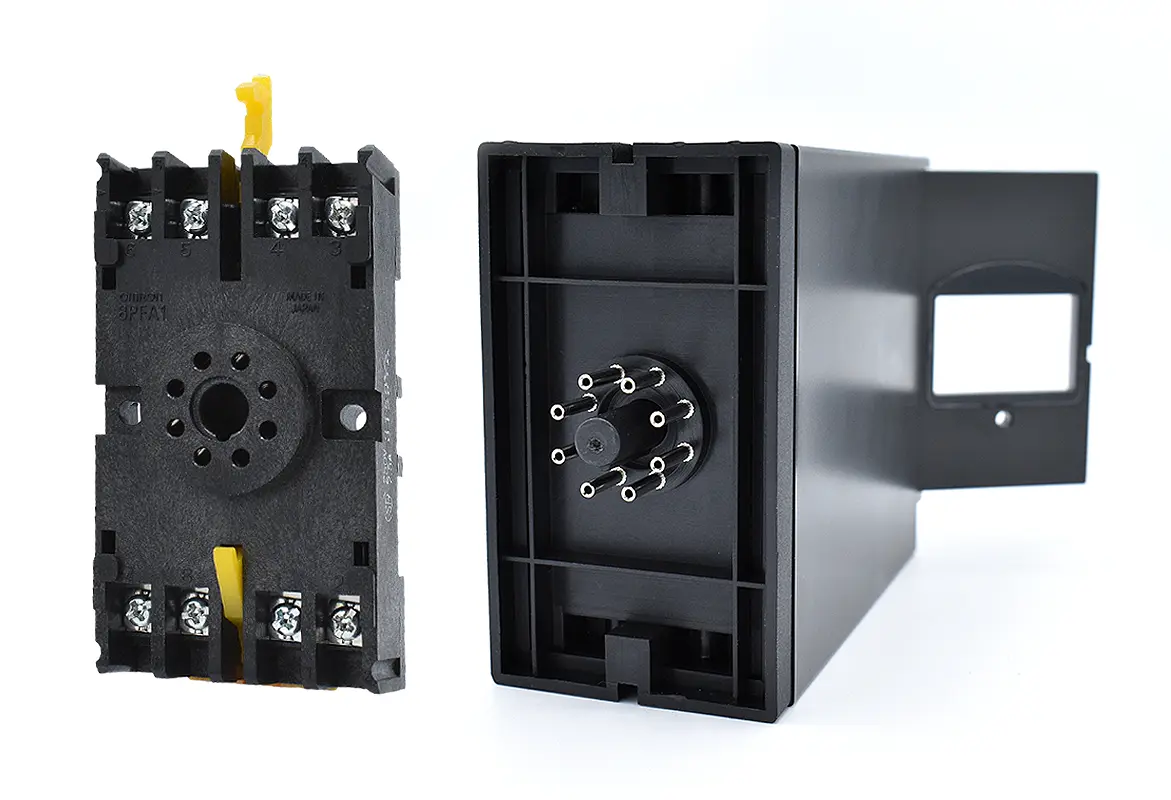

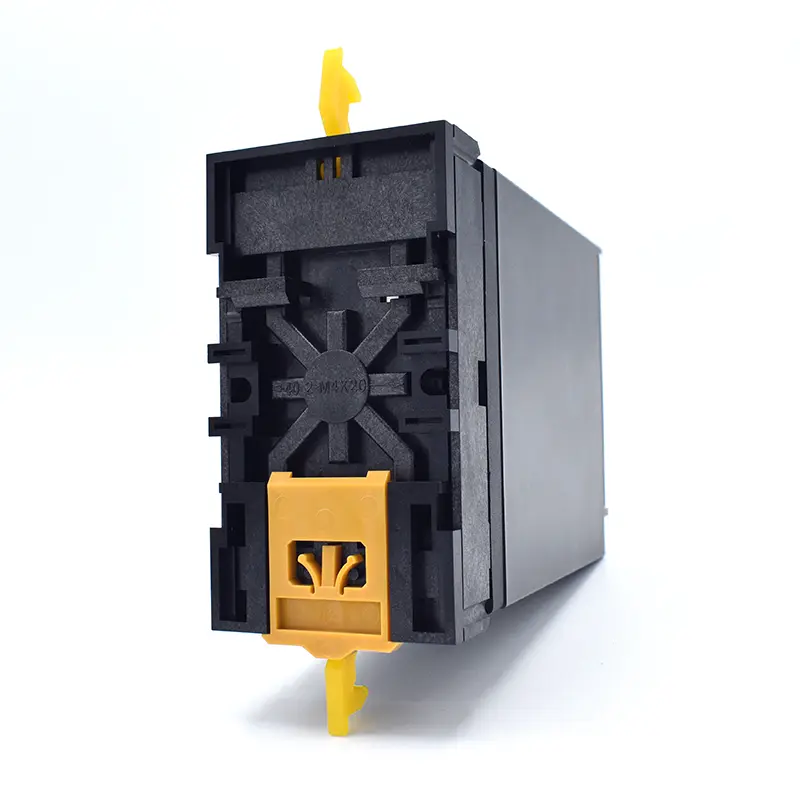

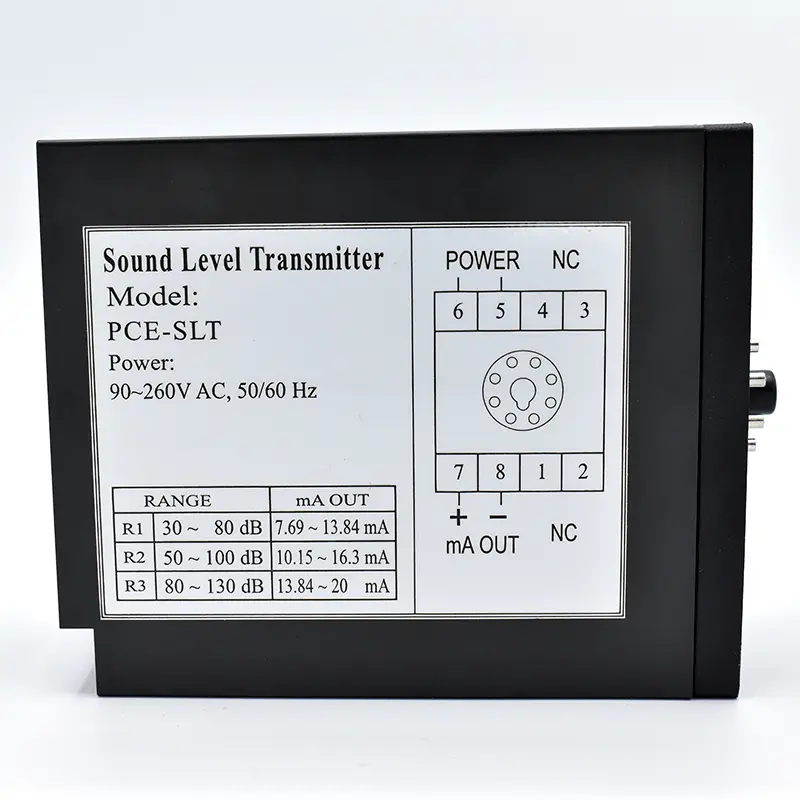

Transmitter
Casing	ABS plastic
Power supply	90 ... 260 AC V (max 1.5 A)

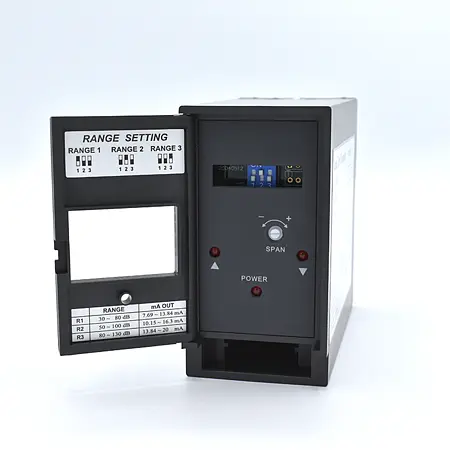

Calibration	Adjustable via grub screw
Output	4 ... 20-mA
Protection	IP 54
Environmental conditions	Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F
Digital display
Input signal from the transmitter	4 - 20-mA
Display	-1999 ... 9999 (1 ... 3 decimal places, depending on the measured value / user-selectable)
Programming data (decimal place, limit value ...)	Are stored in the device
Control output	3-point (Com, NO, NC)
Alarm output	Relay output: 5 A / 240V AC
Power supply	90 ... 260 AC V / 50 ... 60 Hz
Dimensions / panel cutout according to DIN	92 (+0.8) x 45 (+0.5) mm / 3.6 (+0.03) x 1.8 (+0.02) in
Weight	About 250 g / < 1 lb
Environmental conditions	Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F
Protection	IP 65

Delivery Scope

1 x Sound sensor PCE-SLT-ICA
1 x Noise sensor to 1.5 m / 4.9 ft cable
1 x Noise transmitter
1 x Digital display
1 x Sensor bracket to screw on
1 x User manual
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Downloads

Manual

Datasheet
