Pressure Transmitter PCE-DMU 10

Order no.: PCE-DMU 10
GTIN (EAN):
£ 295.00
£ 354.00
price ex. (VAT / delivery)
PCE-DMU 10
Delivery time: 10 - 14 days
* at -1 ... 0 bar

Description

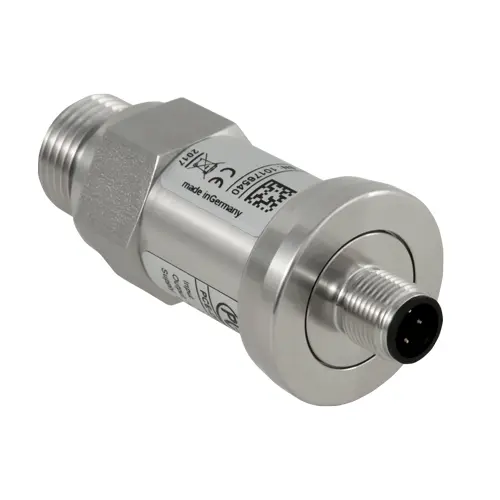

Pressure Transmitter PCE-DMU 10
Pressure Transmitter to 600 Bar / various connections / 0/4 ... 20 mA or 0 ... 10 V output / Ceramic membrane

The pressure transducer PCE-DMU 10 can be used for relative and absolute pressure measurements. The pressure transmitter can be used for fuels, oils and gases. The ceramic membrane allows a robust application in plant and machine construction, in the field of HVAC technology and also in commercial vehicle technology in the hydraulic sector. The modular design of the pressure transmitter allows a combination of process connections, pressure ranges and electrical connection variants and thus meets almost all requirements of industrial automation. The pressure transmitter has an accuracy of 0.5% of the measuring range.


Highlights

- 2 or 3 conductor output
- 0/4 ... 20 mA or 0 ... 10 V (selectable)
- Smallest measuring range 0 ... 100 mBar
- Maximum measuring range 0 ... 600 bar
- 0.5% Accuracy of the measuring range
- Ceramic diaphragm

Specification

Technical Specification Pressure Sensor PCE-DMU 10
Nominal pressure relative in bar -1 ... 0 1 1.6 2.5 4 6 10 16 25 40 60 100 160 250 400
Nominal pressure absolute in bar - 1 1.6 2.5 4 6 10 16 25 40 60 100 160 250 400
Overpressure in bar 3 3 5 6 12 12 20 50 50 120 120 200 400 400 650
Burst pressure in bar 4 4 7 7.5 15 18 30 70 75 180 150 300 500 750 1000
Vacuum resistance

unlimited
Output signal & power supply 2-wire 4 ... 20 mA: 8 ... 32 V DC
3-wire 0 ... 10 V: 14 ... 30 V DC
Load 2-wire: [(UB – UB min) / 0.02 A] Ω
3 wire voltage: 10 kΩ
General Specifications
Accuracy ± 0.5 % FSO
Long-term stability < ±0.3 % FSO
Measuring rate 1 kHz
Response time 2-wire: <10 ms
3-wire: < 3 ms
Media Fuels, oils, gases
Temperature ranges Measuring material: -40 ... 125 °C
Operating: -40 ... 85 °C
Storage: -40 ... 100 °C
Pressure connection / housing Stainless steel 1.4301
Seal FKM
Diaphragm Ceramic AL2O3
Contact with media parts Pressure connection, seals, separating diaphragms

Delivery Scope

1 x pressure transducer PCE-DMU 10
