Paint Test Equipment PCE-CSM 3

Order no.: PCE-CSM 3
GTIN (EAN): 4250348716477
£ 1,581.00
£ 1,897.20
price ex. (VAT / delivery)
:
4250348716477
PCE-CSM 3
Delivery time: 1-2 working days
Handheld
Internal
Yes
Solids
Yes

Description

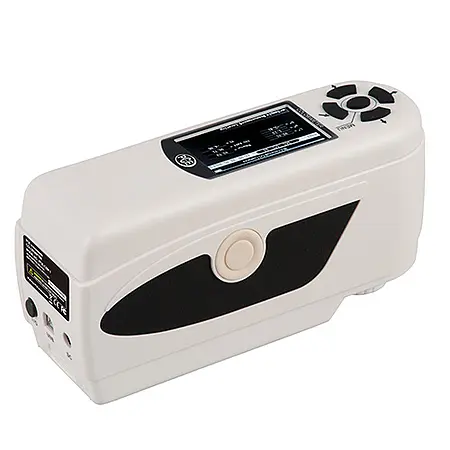

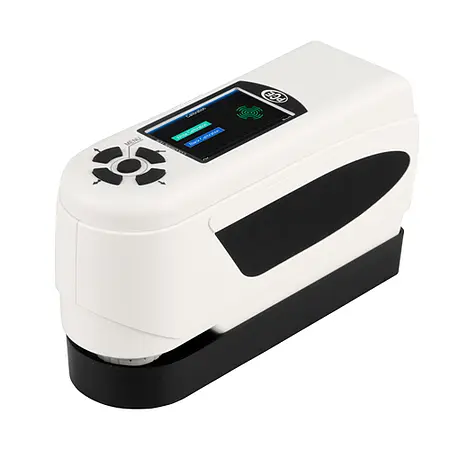

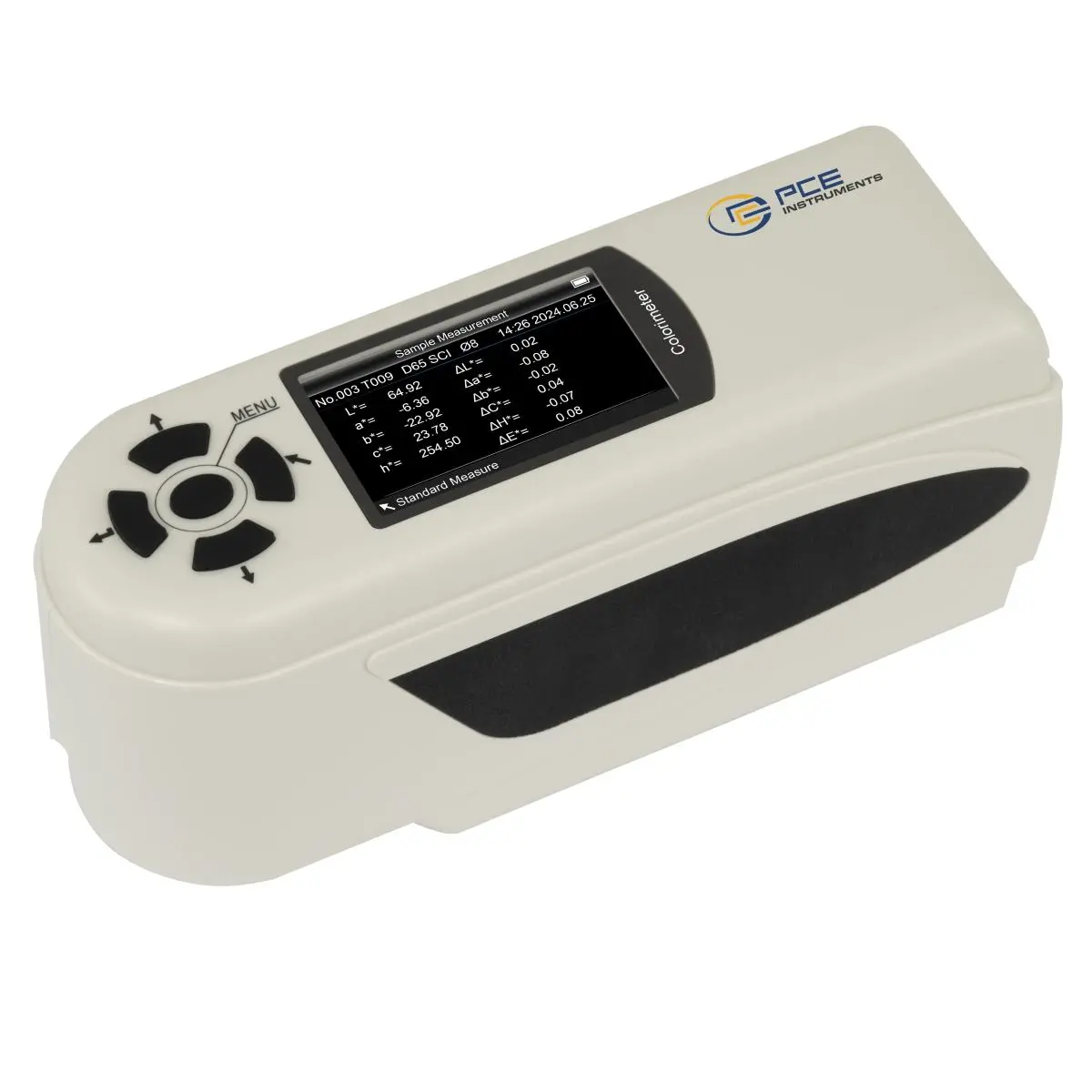

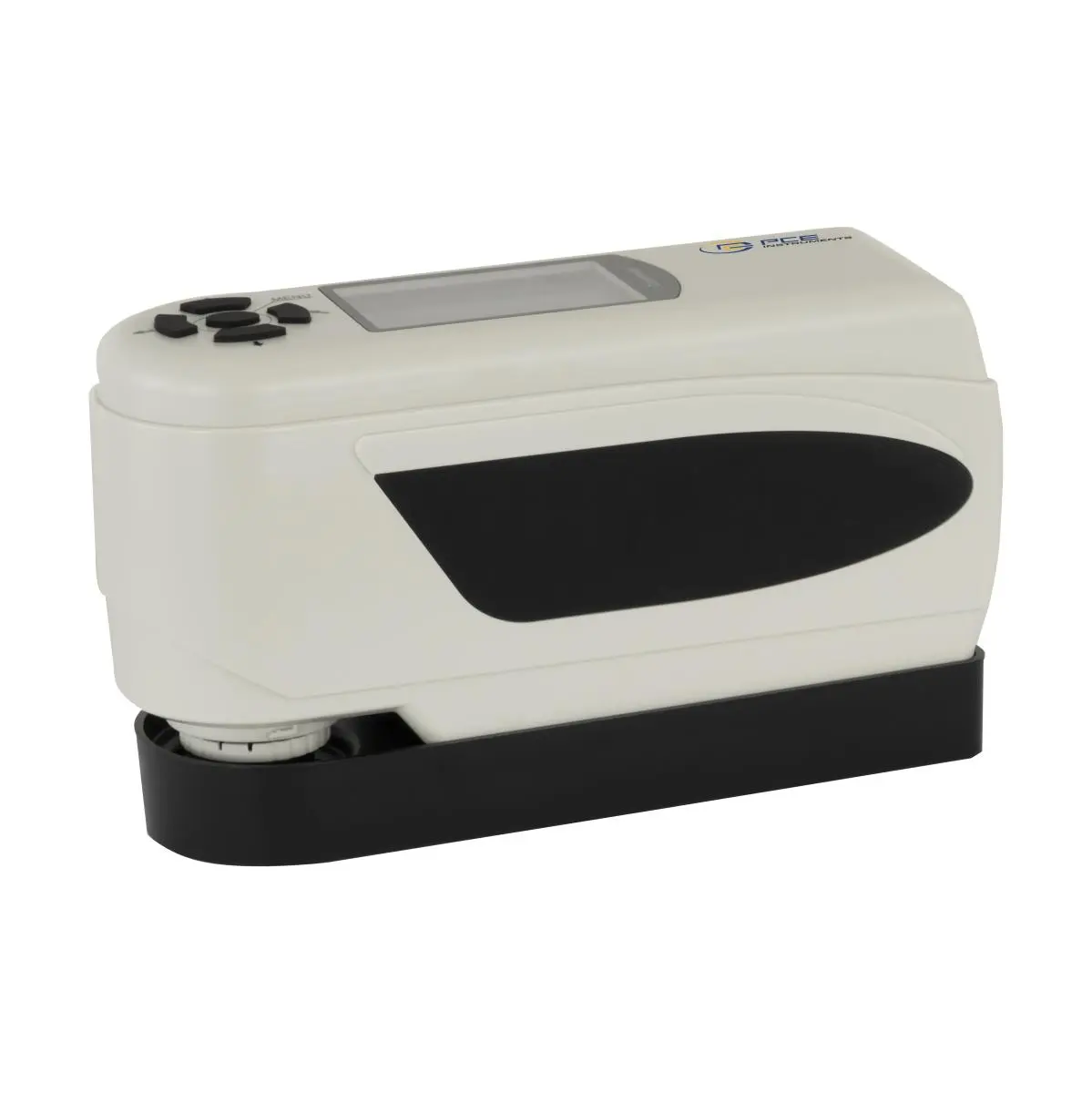

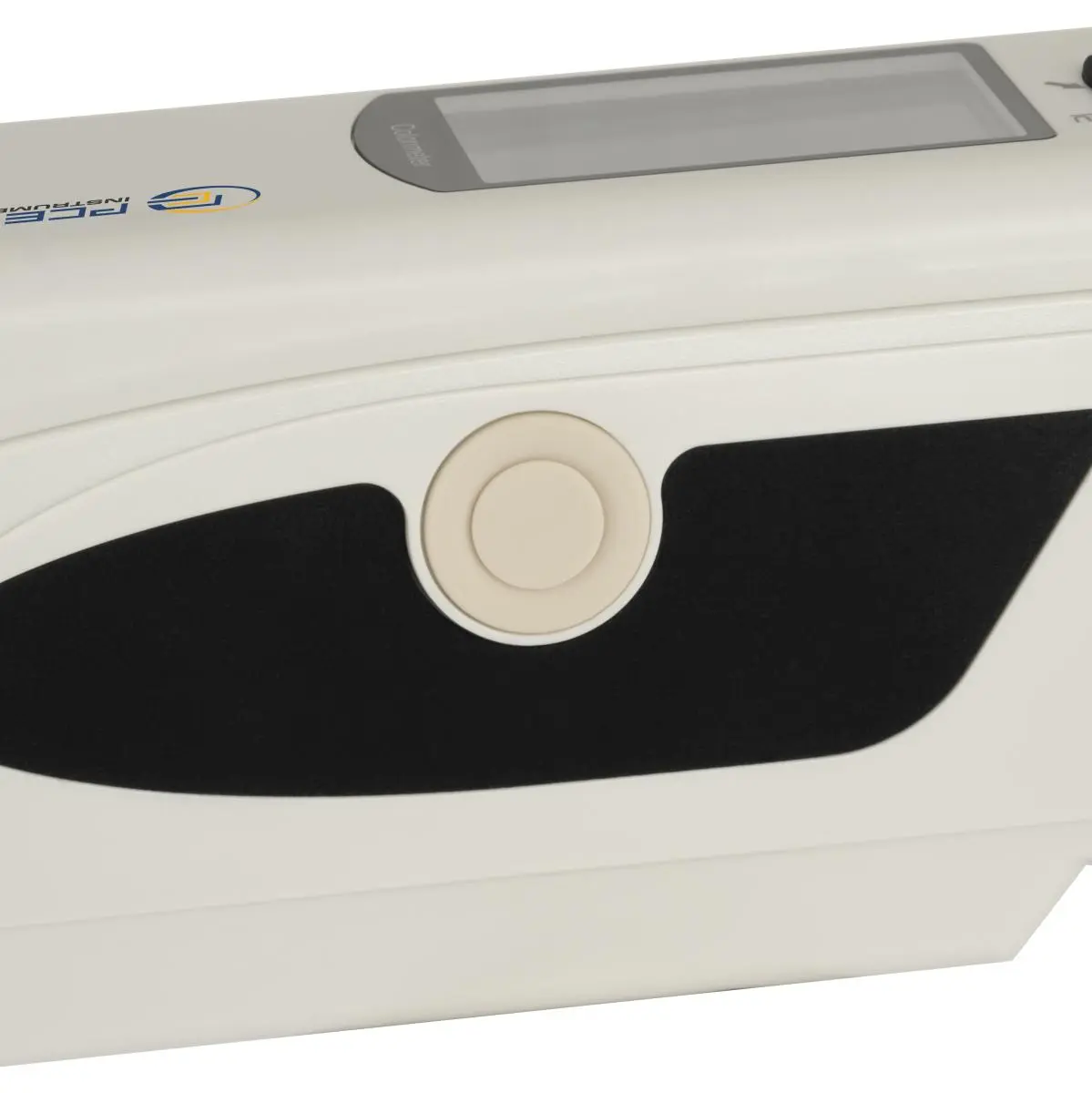

Paint Test Equipment PCE-CSM 3 for quality control
PC software included / Li-ion battery / different colour spaces /
determination of reference values and samples / white calibration

The paint test equipment was developed for quality control and offers a high accuracy. When using the paint test equipment, you can choose between different colour spaces (CIE L*a*b*C*h, CIE L*a*b*). After a measurement with the paint test equipment, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

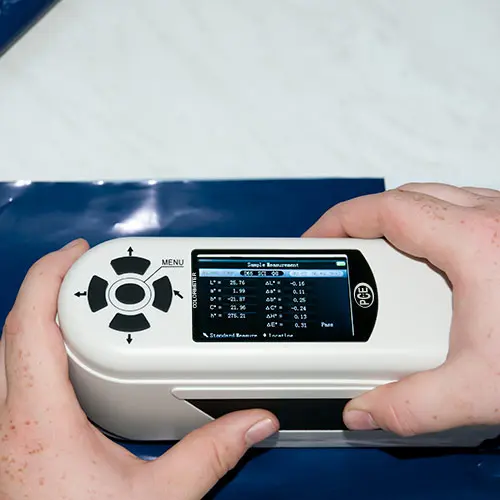

In addition to the individual colour space coordinates, the deviation between the reading is also displayed. When using the paint test equipment, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*a*b*C*h, CIE L*a*b*
- white calibration
- determination of reference values and samples

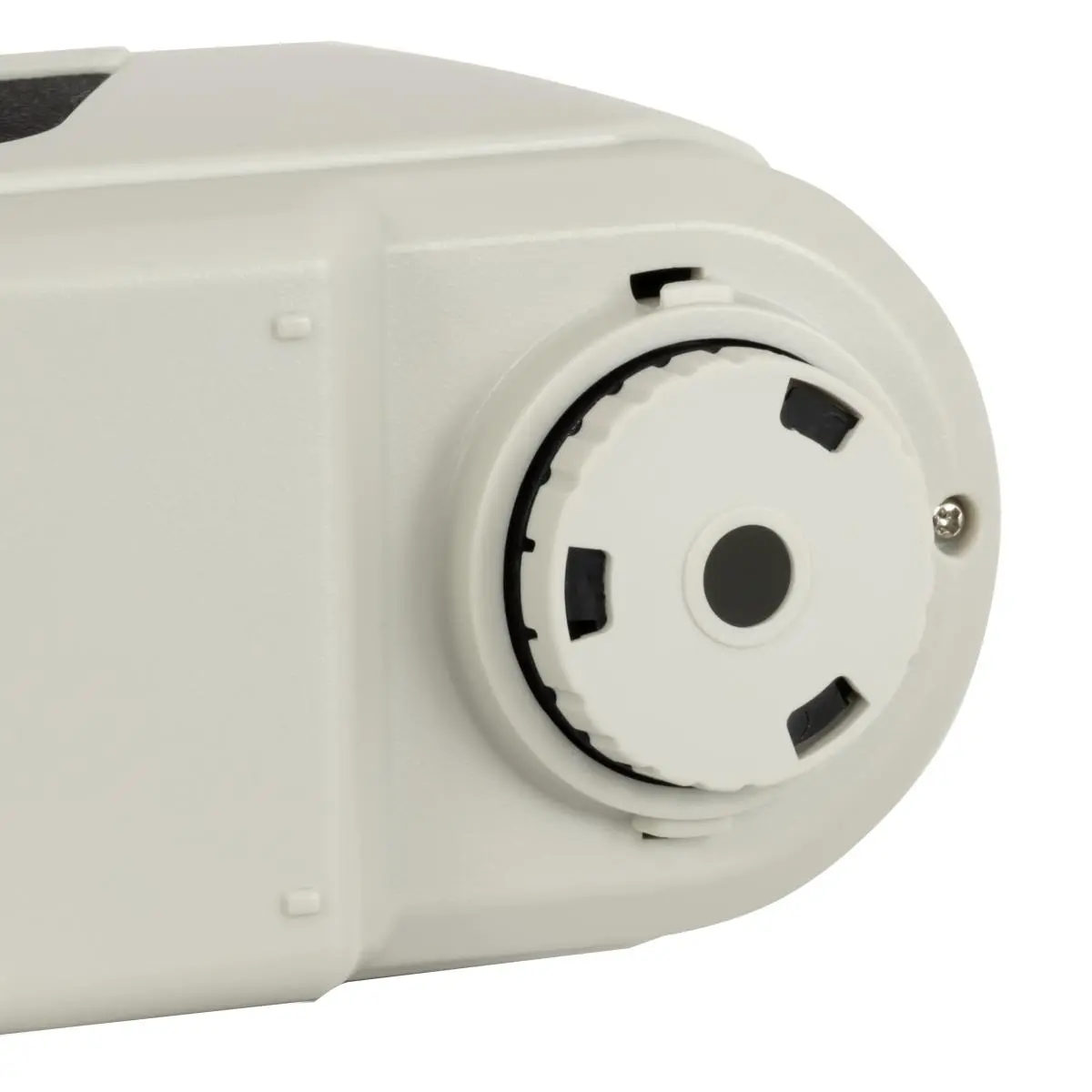

- measuring aperture is 8 mm
- rechargeable lithium-ion battery
- high accuracy
- easy to use
- incl. PC software

Specification

Measuring geometry 8°/d
Measuring aperture Diameter 8 mm
Sensor Silicon photoelectric diode
Colour spaces CIE L*a*b*C*h, CIE L*a*b*
Colour difference formular ΔE*ab, ΔL*a*b, ΔE*C*h
Errors between each equipment ≤0.50 ΔE*ab
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Light source D65
Storage 100 reference values, 20,000 samples

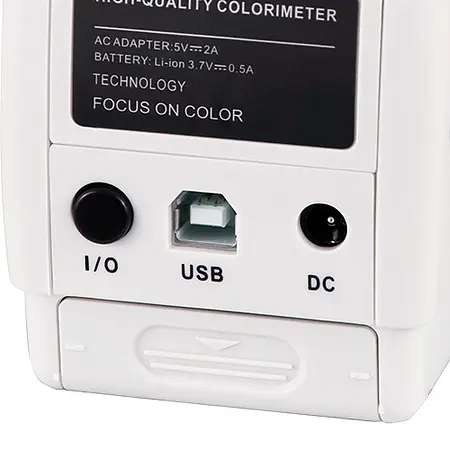

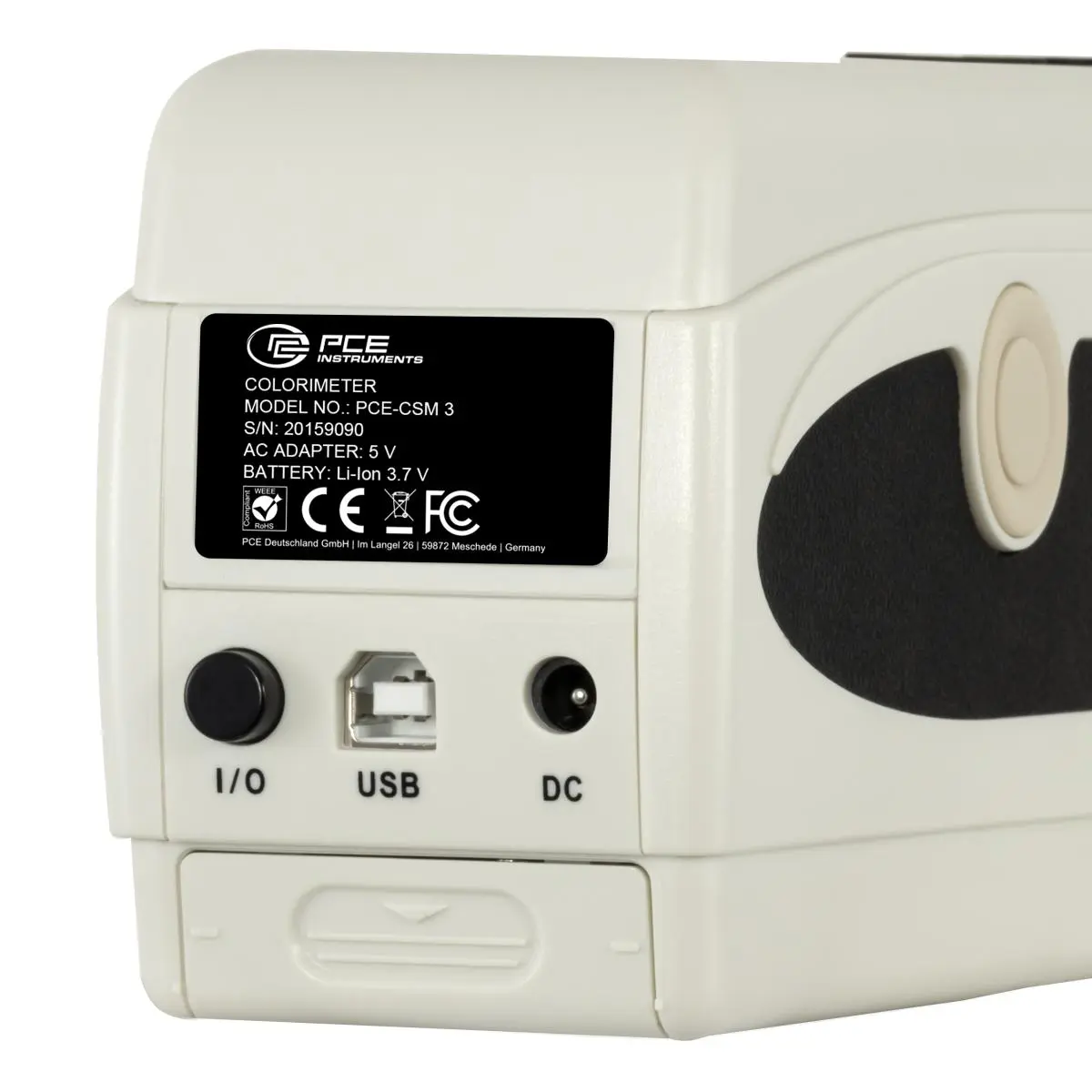

Interface USB
Power supply Rechargeable lithium-ion battery
3.7 V @ 3,200 mAh
Charging time 2 h (8 h at first use)
Battery life > 3,000 measurements
Lamp life 3 years, more than 1 million measurements
Operating conditions 0 ... +40 °C / 32 ... +104 °F
0 ... 85 % RH
Dimensions 200 x 70 x 100 mm / 7.8 x 2.7 x 3.9 in
Weight 500 g / 17.6 oz

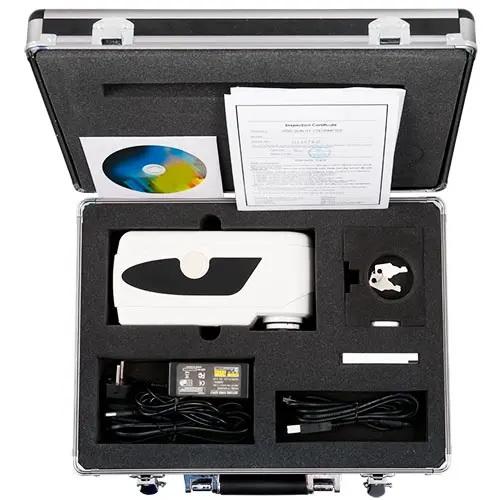

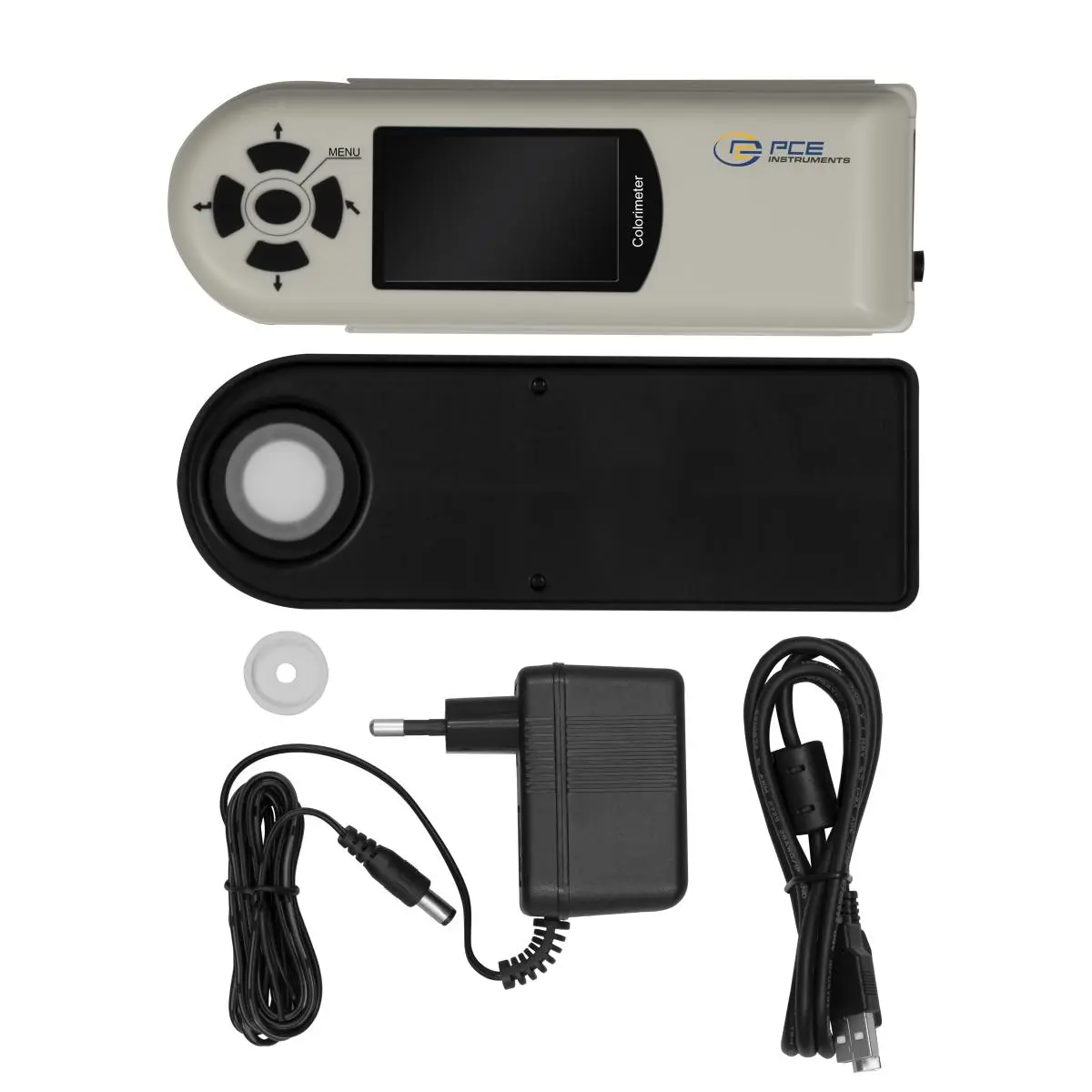

Delivery Scope

1 x Paint Test Equipment PCE-CSM 3
1 x Lithium-ion battery
1 x Mains adapter
1 x Calibration plate (white)
1 x PC software
1 x Instruction manual
