Water Analyser PCE-DRG 8

Order no.: PCE-DRG 8
GTIN (EAN): 4250348732880
£ 260.00
£ 312.00
price ex. (VAT / delivery)
:
4250348732880
PCE-DRG 8
Delivery time: 1-2 working days

Description

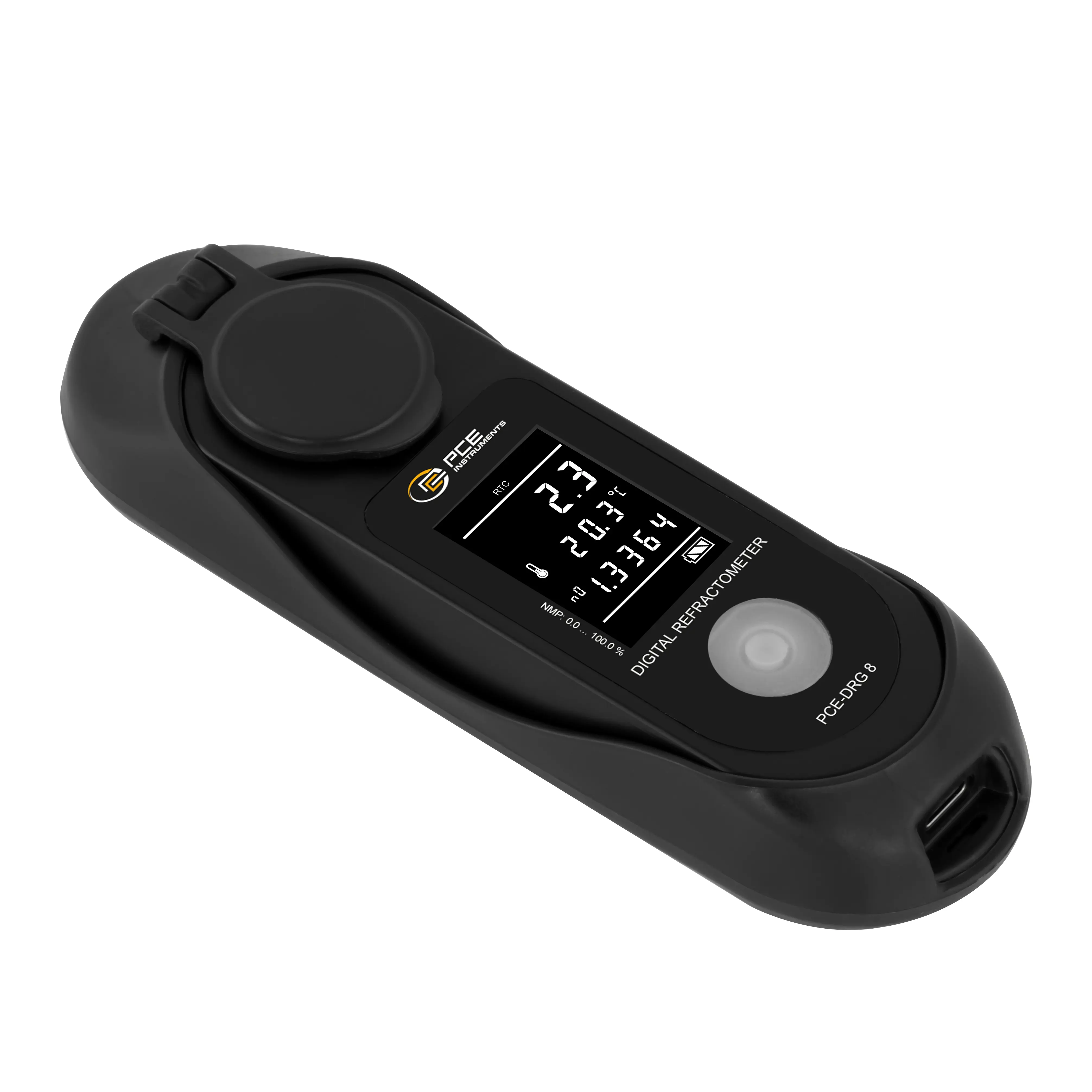

Water Analyser for determinining n-methyl-2-pyrrolidone (NMP) / measurement in Brix and per cent / refractive index 1.32600 ... 1.48000 nD / rechargeable battery / ABS housing with protection class IP65

Our Water Analyser determines the percentage of n-methyl-2-pyrrolidone in aqueous media with a measurement range of 0 to 100 %. The measurement result and the temperature of the sample are shown in two lines on the LCD display of the Water Analyser. Our Water Analyser can measure various parameters such as percentage and refractive index quickly and accurately with just four to five drops of the sample. The Water Analyser has a wide range of applications: it can be used in water analysis, in the chemical industry or in the manufacture of products containing n-methyl-2-pyrrolidone, such as solvents.

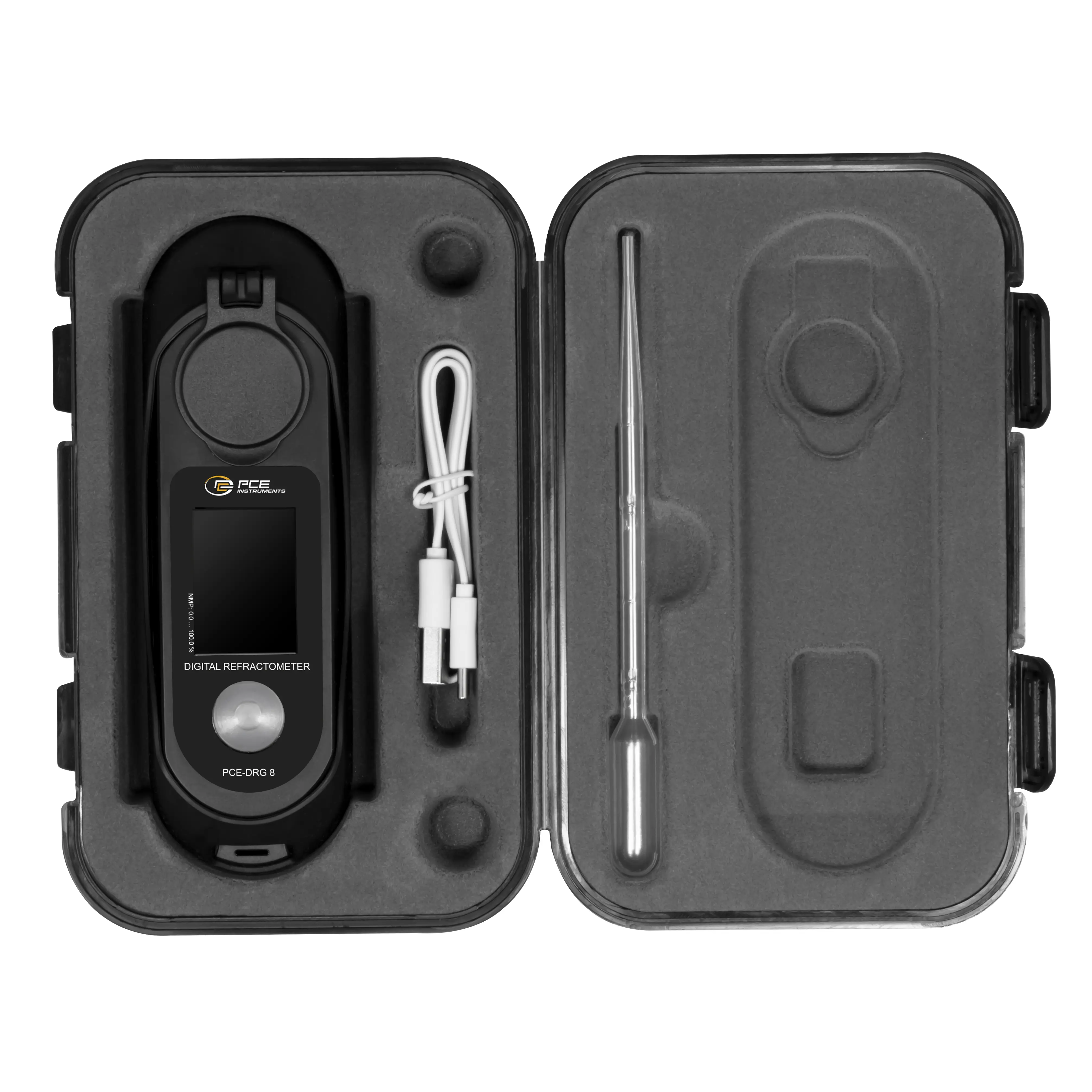

The funnel-shaped stainless steel ring protects the glass prism from damage, into which the liquid sample to be measured is placed. The internal light source enables measurement under poor lighting conditions. Our Water Analyser is supplied in a rugged plastic case with pipette and charging cable.


Highlights

- quick and accurate measurement in approx. 1 s
- large LC display (measured value and temperature)
- easy to use (1-key operation)
- small sample volume
- simple calibration with distilled water
- automatic temperature compensation
- stainless steel sample holder with glass prism
- automatic power-off after 1 min of inactivity

Specification

Refractive index
Measurement range up to  1,326 ... 1,48 nD
Resolution  0,0001 nD
Accuracy  ±0,0003 nD

N-methyl-2-pyrrolidone
Measurement range up to  0 ... 100 %
Resolution  0,1 %
Accuracy  ±0,2 %

Temperature
Measurement range up to  0 ... 40 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C

General technical data
Temperature compensation  automatic 10 ... 40 °C
Display type  LCD
Measuring rate  1 Hz
Automatic power-off  1 min
Sample quantity  0,2 ... 0.3 ml
Menu language  English, English (GB)
Protection class (device)  IP65
Power supply  5V DC, 500mA
Weight  115 g
Operating conditions  0 ... 50 °C , 0 ... 95 % RH
Storage conditions  0 ... 50 °C , 0 ... 95 % RH
Capacity  500 mAh
Dimensions ( L x W x H )  145 x 46 x 27 mm

Delivery Scope

1 x Water Analyser PCE-DRG 8
1 x pipette
1 x plastic case
1 x USB-A - USB-C cable (for charging only, mains adaptor not included)
1 x user manual
