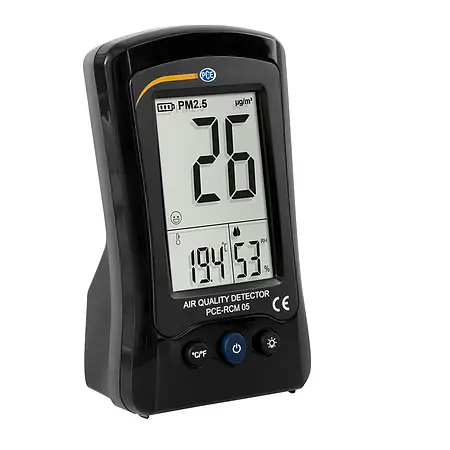

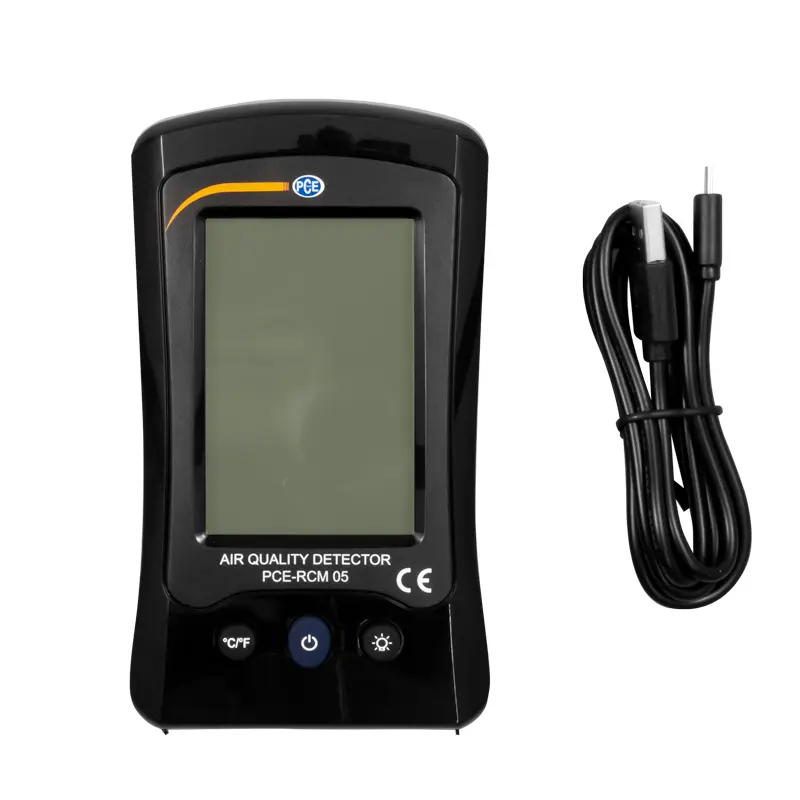

Aerosol measuring device PCE-RCM 05

Order no.: PCE-RCM 05

GTIN (EAN): 4250348718921

Accessory

USB Power Adapter NET-USB-WORLD

£ 18.00

Description

Aerosol measuring device PCE-RCM 05

PM2.5 monitor for dust measurement in the workplace / Dust monitor for PM2.5, temperature and humidity / Battery operation / Warning functions

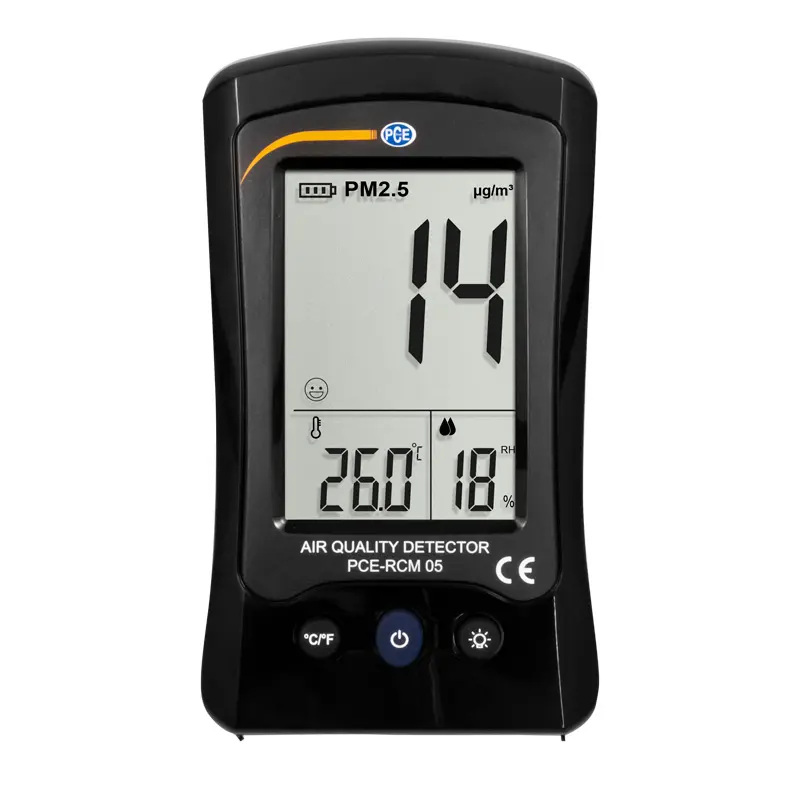

The Aerosol measuring device is used to continuously measure the particulate matter content at the workplace. The Aerosol measuring device displays PM2.5 particulate matter as well as temperature and humidity on the display. The measuring range of the Aerosol measuring device ranges from 0 ... 500 μg / m³ PM2.5. This makes the Aerosol measuring device an optimal test instrument to constantly have an overview of the fine dust content. Below the large measured value display of the Aerosol measuring device content, the Aerosol measuring device provides quick information about the air quality with the aid of pictograms.

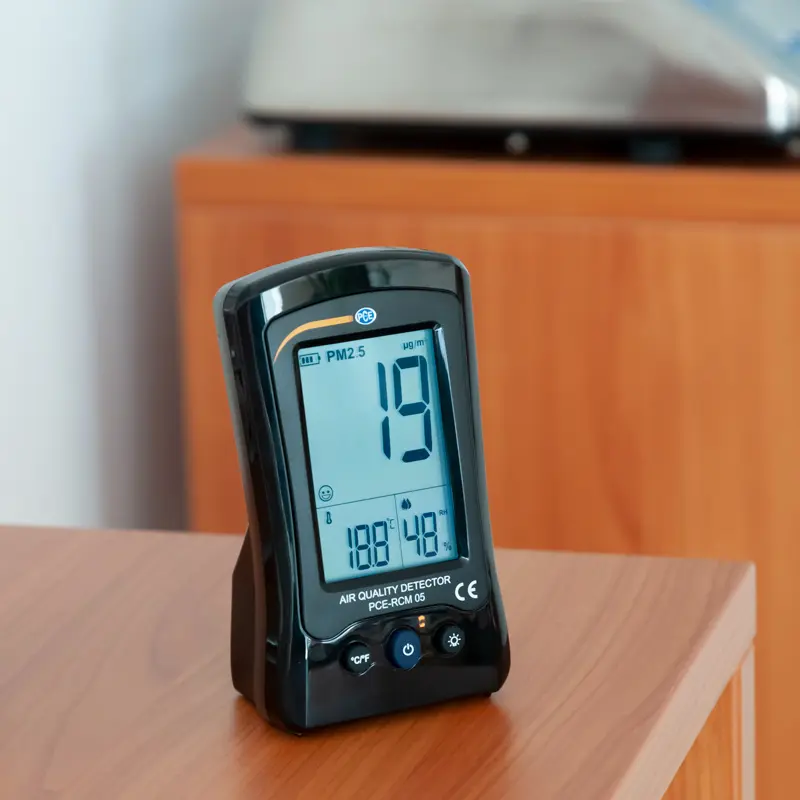

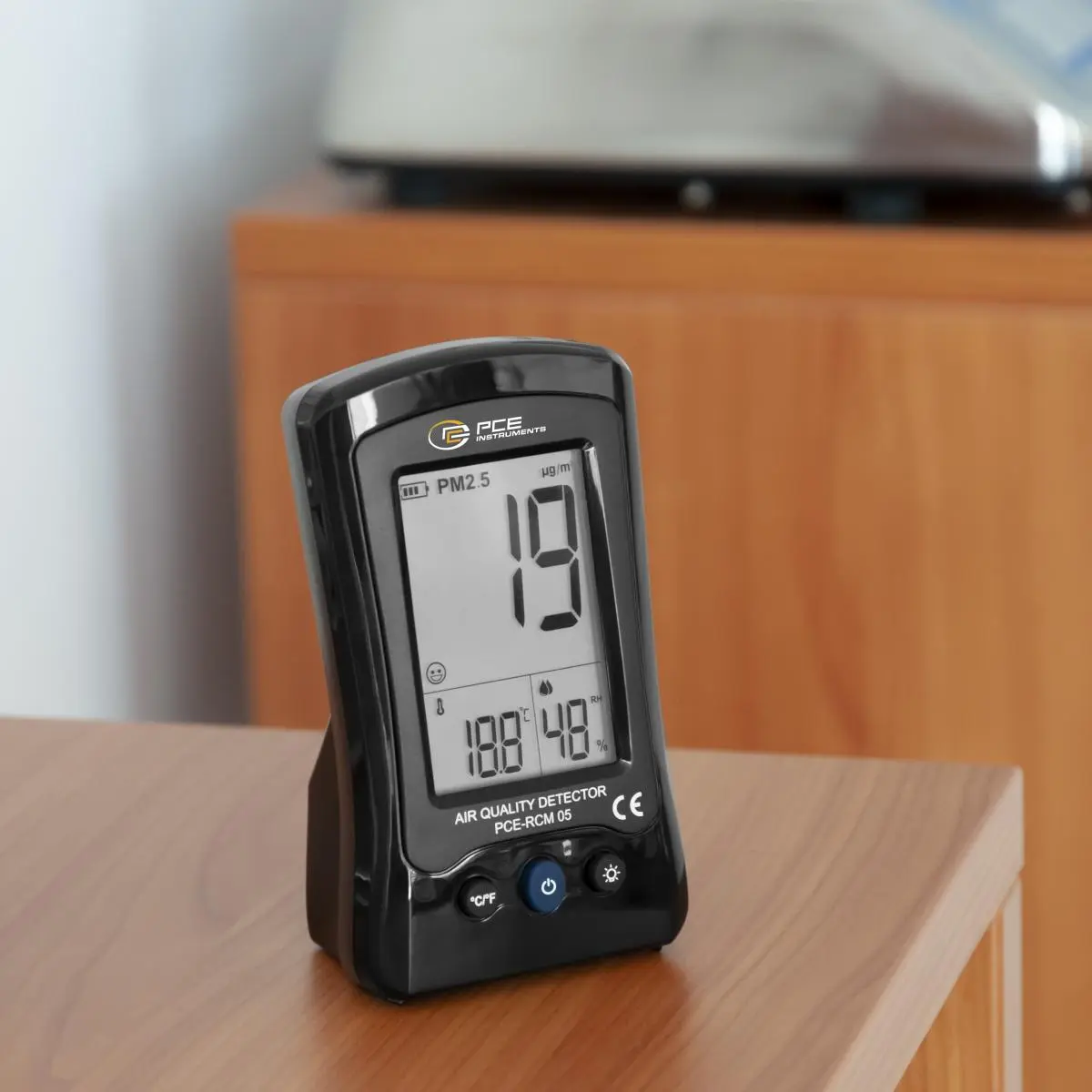

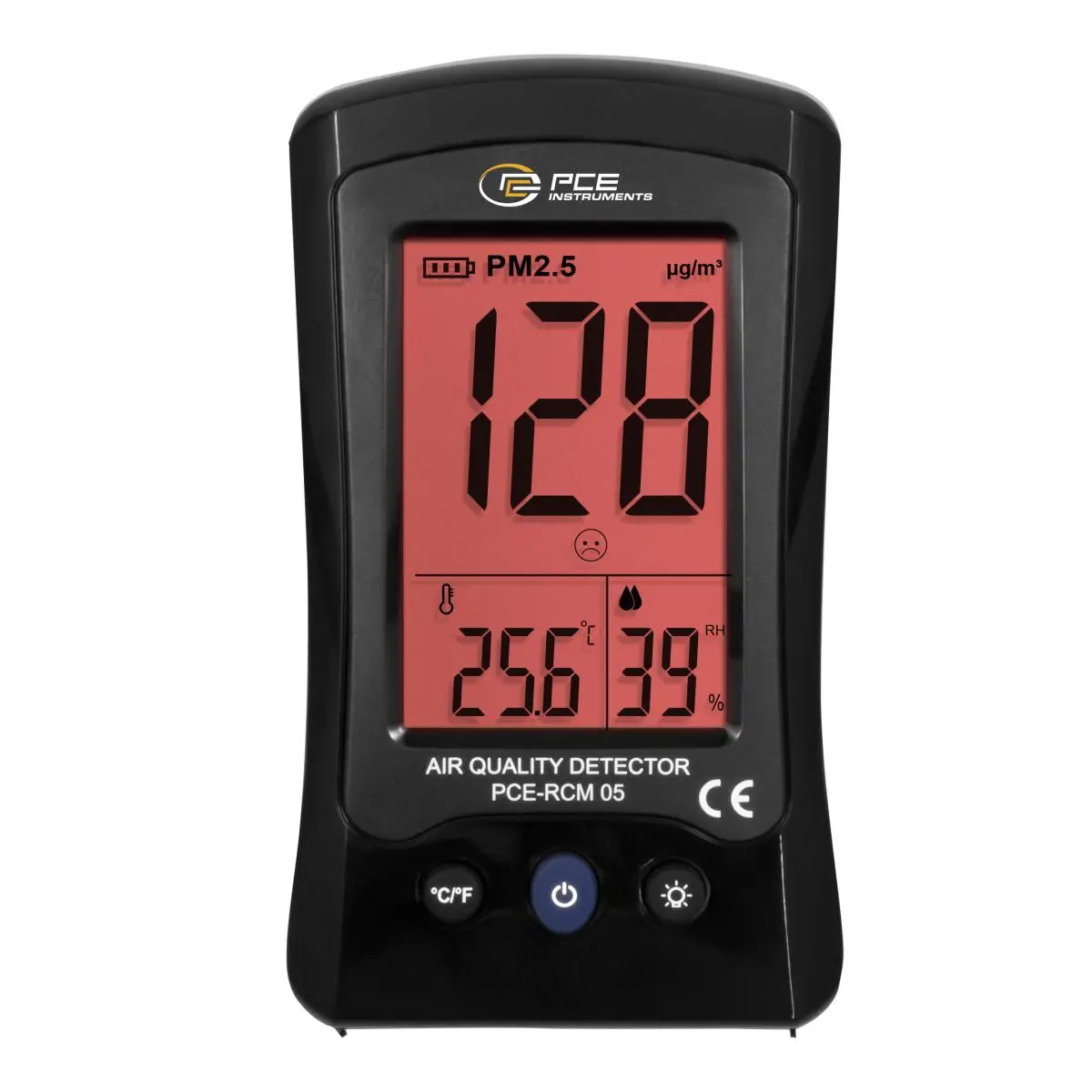

The Aerosol measuring device is powered by a rechargeable battery. The LC display is illuminated and easy to read from any angle, for example when the meter is on a desk. In addition to the standard white lighting, the Aerosol measuring device switches the lighting to red in the event of an alarm.

Highlights

- PM2.5 fine dust measurement
- Temperature and humidity display
- Illuminated LCD with alarm
- Pictograms indicate air quality
- Battery operation

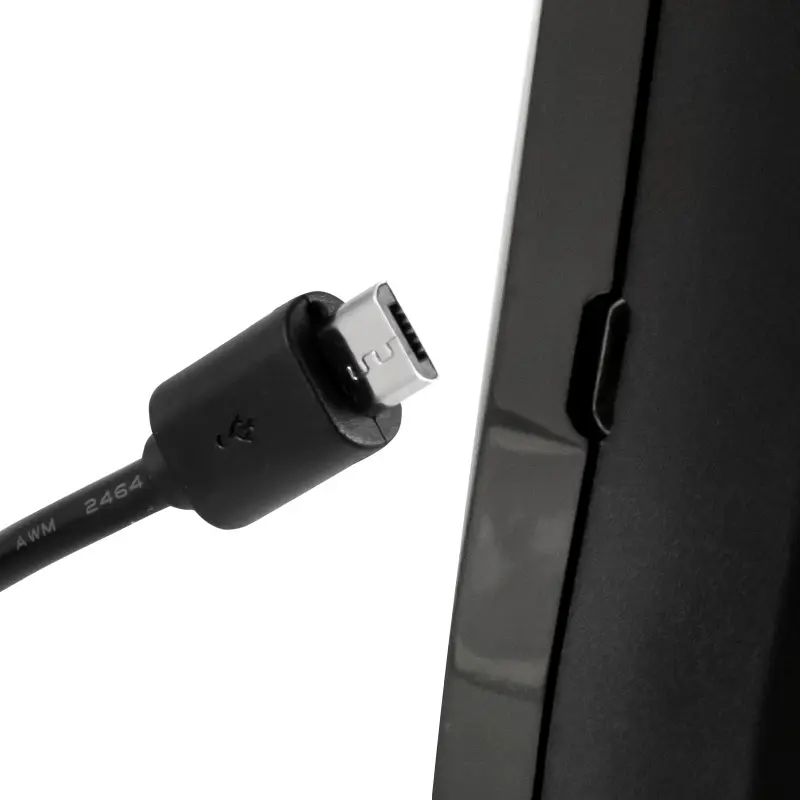

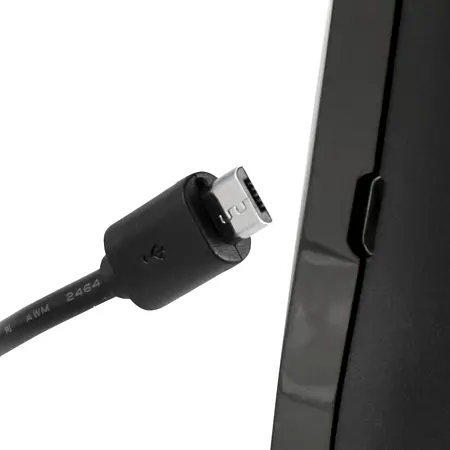

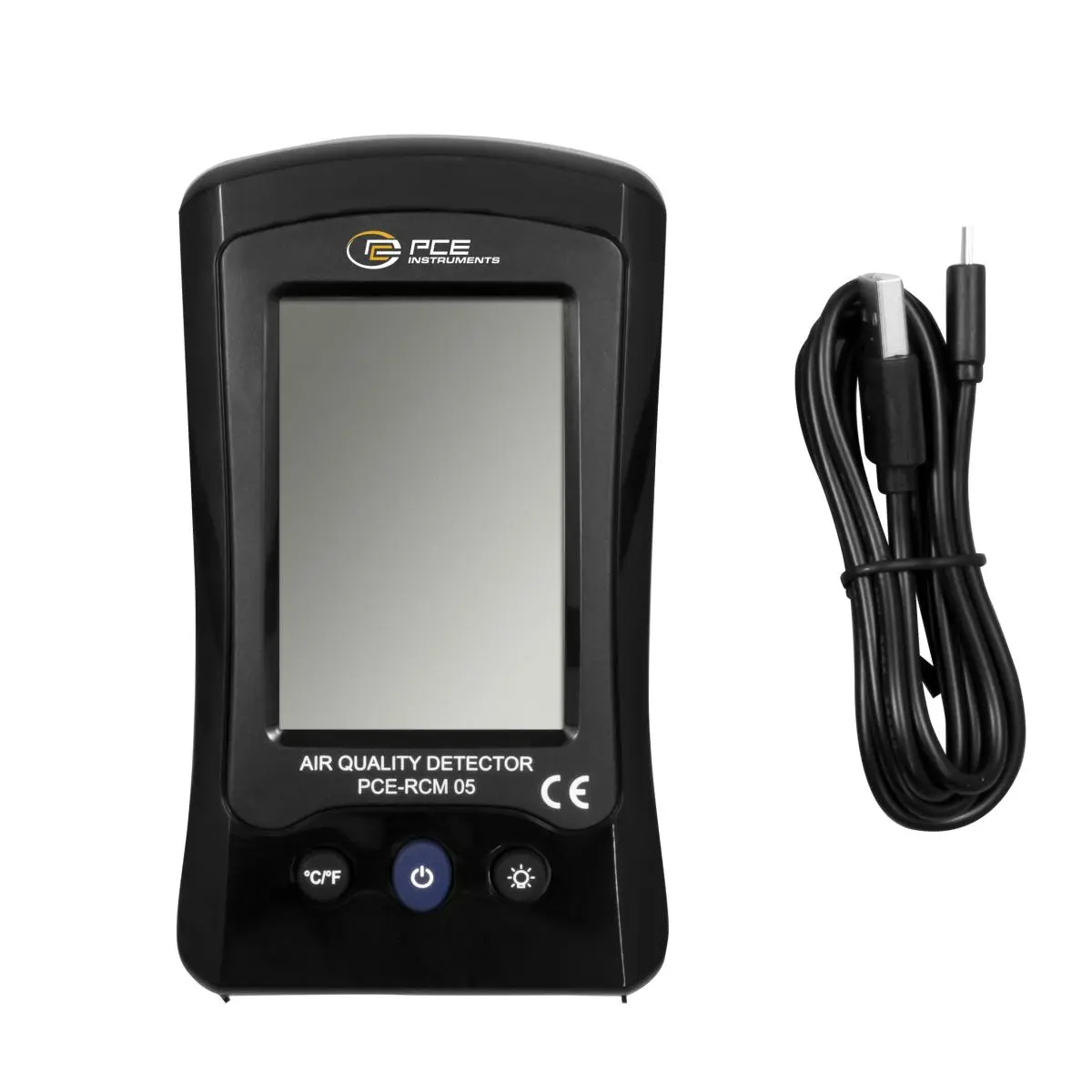

- Micro USB for charging

Specification

Measuring range PM2.5	0 ... 500 μg / m³
Resolution	1 μg / m³
Accuracy	<100 μg / m³: ± (10 μg / m³ + 10 digits)
	<400 μg / m³: ± (10 μg / m³ + 30 digits)
	>400 μg / m³: ± (10 μg / m³ + 50 digits)

Measuring range temperature	-10 ... 50°C / 14 ... 122°F
Resolution	0.1°C / 0.18°F
Accuracy	± 1°C / 1.8°F

Measuring range humidity	0 ... 99% rh
Resolution	1% rh
Accuracy	30 ... 80% RH: ± 5% RH

Display	LC display
Backlight	White (standard)
	Red (alarm)
Battery indicator	Four-level display
Automatic shutdown	After 2 h
Power supply	3.7V Li-ion battery
	Micro USB
Operating conditions	0 ... 50°C / 32 ... 122°F, 0 ... 85% rh
Storage conditions	-20 ... 60°C / -4 ... 140°F, 0 ... 95% rh
Weight	195 g / < 1 lb
Dimensions	75 x 55 x 130 mm / 3 x 2.2 x 5 in
