Air Flow Meter KWG1

Order no.: KWG1
GTIN (EAN):
£ 79.00
£ 94.80
price ex. (VAT / delivery)
KWG1
Delivery time: 1-2 working days
Speed
Cup vane
No
Yes (Hz output)

Description

Air Flow Meter KWG1
Basic wind transmitter with impulse output / heating / suitable for PCE-WL1 und PCE-WL2
Additional small wind transmitter KWG 1 for PCE Wind logger. Cup anemometer with impulse output.

Highlights

- Basic wind transmitter
- 3 m connection cable
- Easy assembly
- Compatible with PCE-WL 1 and PCE-WL 2

Specification

Technical Datas
Output0… 100 Hz
Measurement reading range0.9 … 40 m/s
Accuracy ± 0.5 m/s or 5 % v. M
Loadmax. 60 m/s (temporary)
Contact Load10 VA, max. 42 V DC, max. 0,4 A

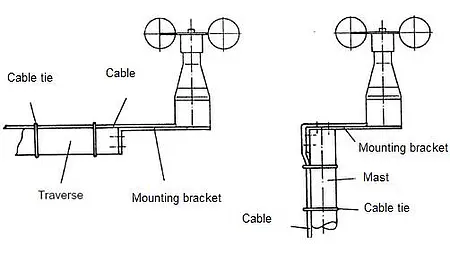

Assembly mounting bracket
Heatingmax. 24 V DC/AC, max. 1 A
Ambient temperature25 ... +60 °C (in ice-free conditions)
Cable (selectable)3 m; LiYY 4 x 0,5 mm²
15 m; LiYY 4 x 0,5 mm²
Protection classIP54

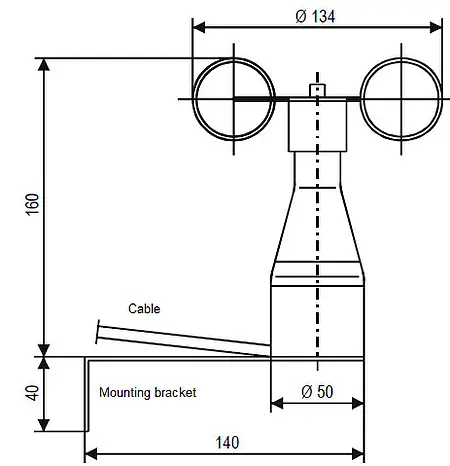

DimensionsØ 134 x 160 mm
WeightCa. 300g

Delivery Scope

Delivery content
1 x KWG1, 1 x Data Sheet
