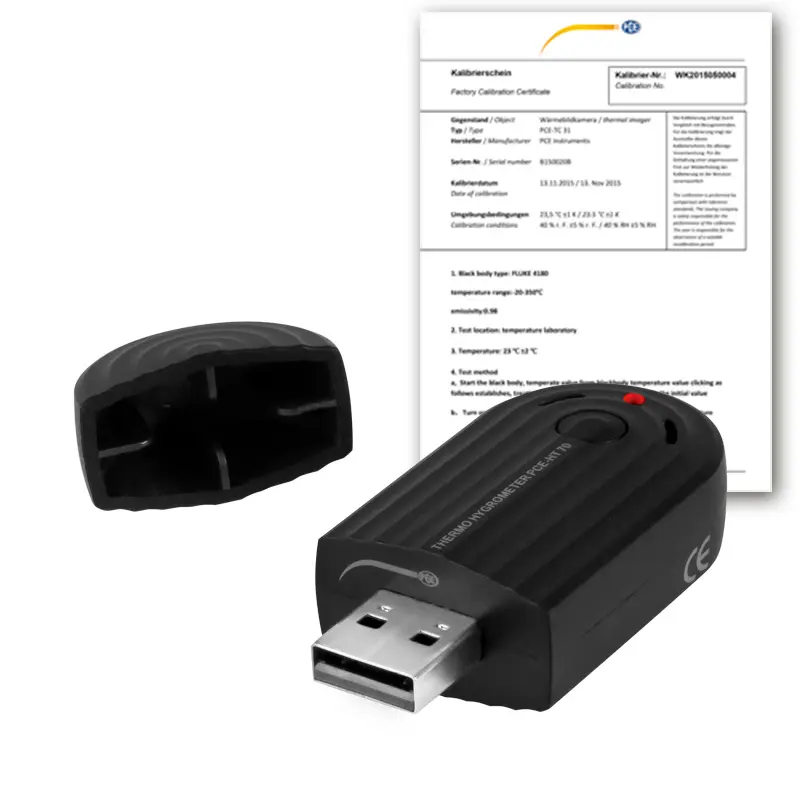

Air Humidity Meter PCE-HT 70-ICA incl. ISO Calibration Certificate

Order no.: PCE-HT 70-ICA
GTIN (EAN):
£ 200.00
£ 240.00
ISO Calibration
price ex. (VAT / delivery)
PCE-HT 70-ICA
Delivery time: 10 - 14 days

Description

Air Humidity Meter for Temperature and Humidity / Compact /
Long battery life / 16,000 measured values storable / incl. ISO Calibration Certificate

The air humidity meter records the air temperature and humidity and stores them internally. The compact air humidity meter with a large memory (up to a maximum of 16,000 values) is primarily used for long-term registration, for example in the food sector (e.g. refrigerated counters in supermarkets, refrigerated transport, warehouses) or in the industrial sector (heating and cooling processes, machine temperatures, product warehouses...) An LED signals that the air humidity meter is recording data. The values stored in the device are transferred to a PC or laptop and the software evaluates them graphically as a curve. Of course, the measured values are also displayed in a table. The storage can either be triggered manually or you program the air humidity meter in advance (start and stop time, date and recording rate) to record on site.

The internal real-time clock with date allows the user to precisely program the events.  The storage rate of the air humidity meter is freely adjustable. The compact dimensions allow the air humidity meter to fit almost anywhere. The current measurement can be ended and a new measurement started automatically by pressing the button on the air humidity meter. This function of the air humidity meter is particularly helpful when monitoring freight, if you want to check the transport back and forth without having to re-program the air humidity meter.


Highlights

- USB datalogger
- Calculation of dew point
- Max. 16,000 data records can be saved
- Export to software possible
- 450 day running time
- Adjustable storage rate from 1 second
- Compact dimensions
- Wall bracket incl.
- incl. ISO Calibration Certificate

Specification

Measured parameter
Temperature
Measuring range -40 ... 85 °C / -40 ... 185 °F
Accuracy ±0.5 °C / ±0.9 °F  (0 ... 70 °C / 32 ... 158 °F)

±0.8 °C / ±1.4 °F (-20 ... 0 °C / -4 ... 32 °F)
Measurement / storage rate 1 s ... 15 days

Measured parameter
Relative humidity
Measuring range 0 ... 100% rel. humidity
Accuracy ±3% RH (10 ... 90 % RH)
  ±4% RH (rest of range)
Measurement / storage rate   1 s ... 15 days

Measured parameter
Drift
Accuracy Temperature: 0.03 °C / 0.05 °F / year
  Humidity: 0.25 % RH / year

Response time 2 minutes
Memory size max. 16,000 measured values
Power supply CR2032 battery
Battery life ca. 450 days (@25 °C / 77 °F / 15 min. storage rate)
Environmental conditions -40 ... +85 °C  / -40 ... 185 °F
Protection IP30
Dimensions 69.5 x 47.5 x 18.7 mm / 2.73 x 1.87 x 0.73"
Weight 44 g / 1.5 oz

Delivery Scope

1 x Air Humidity Meter PCE-HT 70-ICA
1 x Wall bracket
1 x CR2032 battery
1 x User manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
