Isokinetic sensor for PCE-PQC series
Measuring range | 0.5 ... 25 μm |
Measuring channel sizes | Factory calibrated at 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm |
Counting efficiency | 50% at 0.5 μm, 100% at > 0.75 μm according to JIS |
Flow | 2.83 l / min (0.1 ft3 / min) |
Random loss | 5% at 4,000,000 particles / ft³ |
Battery | >8 h |
Light source | Long-life laser diode |
Zero count | <1 count / 5 min (<2 particles / ft3) according to ISO 21501-4 and JIS |
Counting modes | Automatic, manual, real-time, cumulative / |
differential, mass concentration | |
Alarms | 1 ... 9999999 counts, adjustable |
Calibration | Traceable to NIST |
Display | 4.3" WQVGA color touch display, 480x272 px |
Printer | External thermal printer |
Aspiration | Internal pump with automatic |
flow control | |
Air outlet | Internal HEPA filter |
Battery pack | Replaceable Li-Ion battery |
Charging time | About 4 hours |
Reports | ISO 14644-1 |
EU GMP Annex 1 | |
FS 209E | |
Configuration | Memory for 50 custom configurations |
Standards | ISO 21501-4 and JIS B9921 |
Dimensions | 13.3 x 10.5 x 21 cm |
Weight | 1.8 kg |
Storage | 45000 data sets (ring memory) consisting of |
Particle counting, temp. and humidity, places and times | |
Sample locations | up to 1000 places can be deposited |
Sample duration | 1 s ... 99 h adjustable |
Power supply | 110 ... 240V AC 50/60 Hz |
Operating conditions | 5 ... 40°C / 41 ... 104°F |
Up to 95% RH not condensing | |
Storage conditions | 0 ... 50°C / 32 ... 122°F |
Up to 98% RH not condensing | |
Temp. / Humidity sensor intern | 0 ... 50°C (32 ... 122°F), 15 ... 90% rh |
Resolution | 0.5°C / ± 0.9°F |
Accuracy | ± 0.5°C / ± 0.9°F, ± 2% RH |
Interface | Ethernet, USB |
Optional interfaces | Wifi 802.11 b / g, RS485 or RS232 |
Number of measuring channels | 6 |
Price excl. VAT &. delivery
2 year Warranty
Isokinetic sensor for PCE-PQC series
Price excl. VAT &. delivery
2 year Warranty
Cleaning filter for PCE-PQC series
Price excl. VAT &. delivery
2 year Warranty
Standard: Wifi 802.11 b/g
If the WIFI variant is required, the antenna must be ordered directly!
Price excl. VAT &. delivery
2 year Warranty

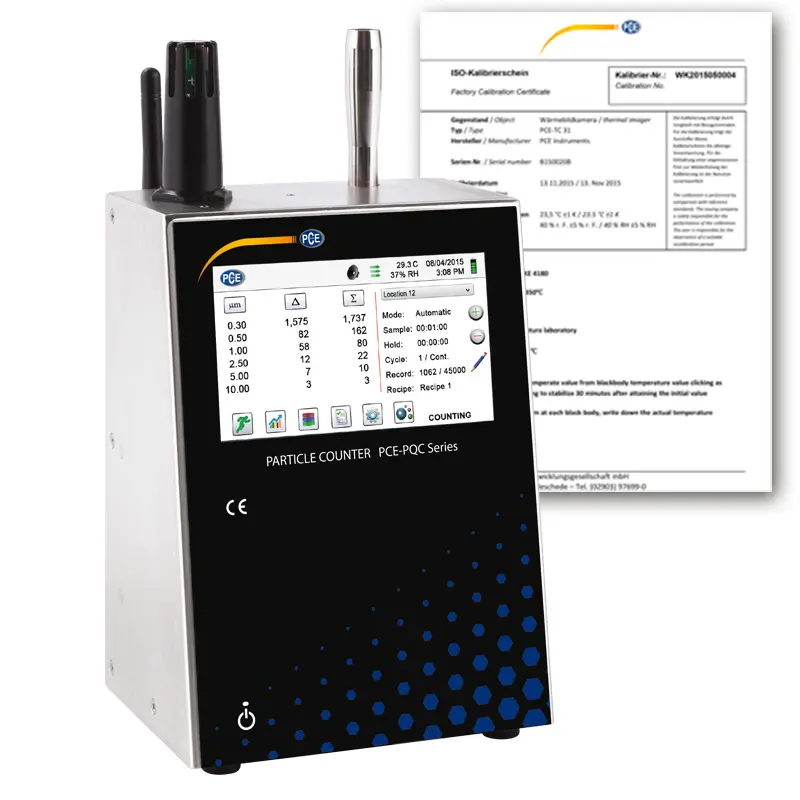

Re-calibration certificate for max. 6 channels traceable to NIST
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
