Air Velocity Meter with Flow Hoods PCE-VA 20-SET-ICA incl. ISO Calibration Cert.

Order no.: PCE-VA 20-SET-ICA
GTIN (EAN):
£ 539.00
£ 646.80
ISO Calibration
price ex. (VAT / delivery)
PCE-VA 20-SET-ICA
Delivery time: 10 - 14 days
Impeller
Up to 30 m/s
No
No

Accessory

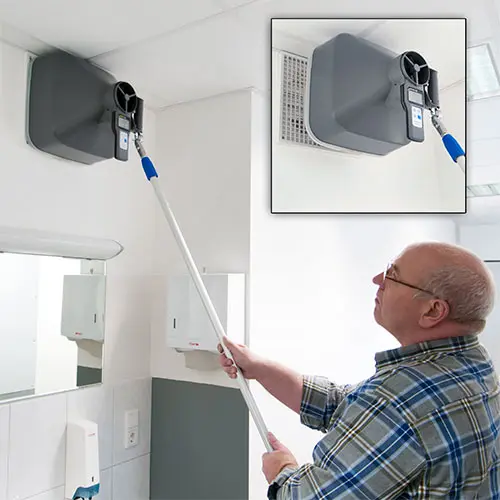

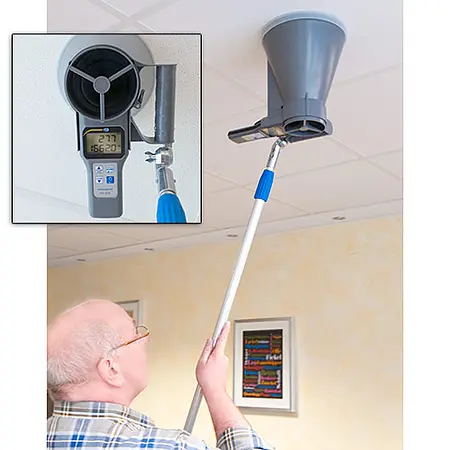

Telescoping Pole for PCE-VA 20
Telescoping Pole for PCE-VA 20
£ 112.00
Equipment for impeller PCE-VA 20
Set of 2 x Capture Flow Hoods for PCE-VA 20
£ 159.00

Description

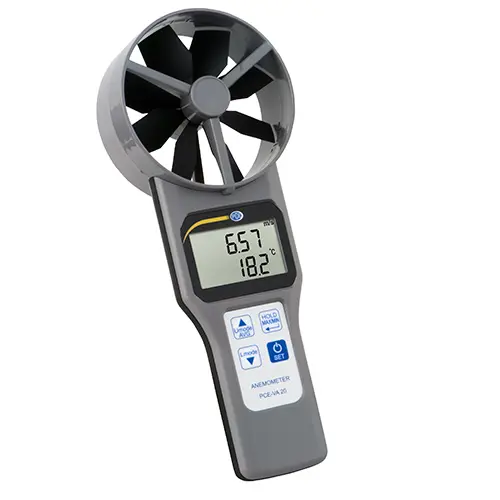

PCE-VA 20-SET-ICA Multifunction Air Velocity Meter with Flow Hoods incl. ISO Calibration Certificate
Combination anemometer-hygrometer-thermometer for HVAC system balancing

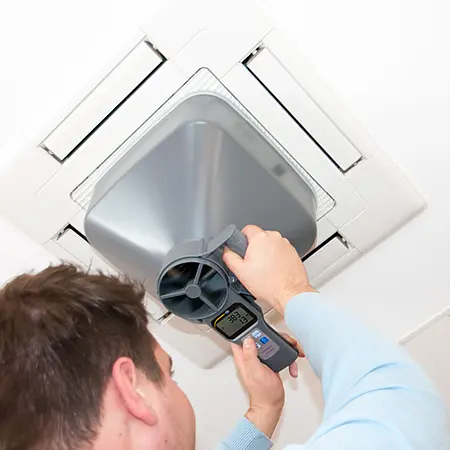

PCE-VA 20-SET is a multifunction air velocity meter with flow hoods for assessing and balancing heating, ventilation and air conditioning or cooling (HVAC) systems. In addition to measuring air flow velocity (i.e., wind speed), this multipurpose handheld device measures volume flow, relative humidity (RH), air temperature, dew point temperature and wet-bulb temperature. This combination anemometer-hygrometer-thermometer features a 10 cm / 3.9" Ø fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.


Highlights

- Measures air flow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet-bulb temperature
- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of measured value + 0.3 m/s) when more than 20 m/s
- Resolution: 0.1

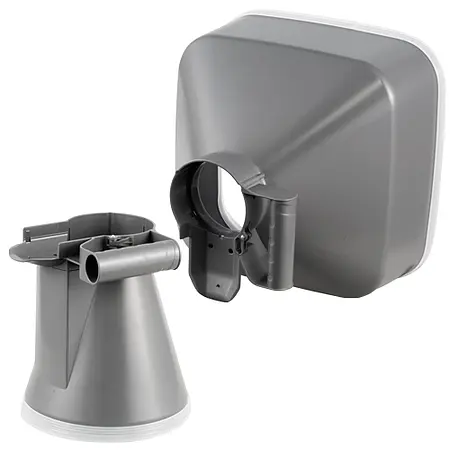

- Includes 2 x capture hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346 mm / 13.6 x 13.6 in)
- 10 cm / 3.9 in Ø fan impeller

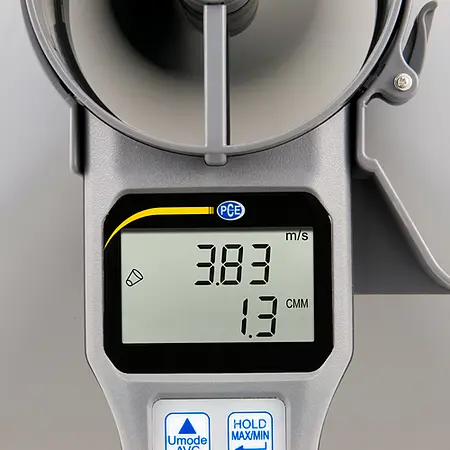

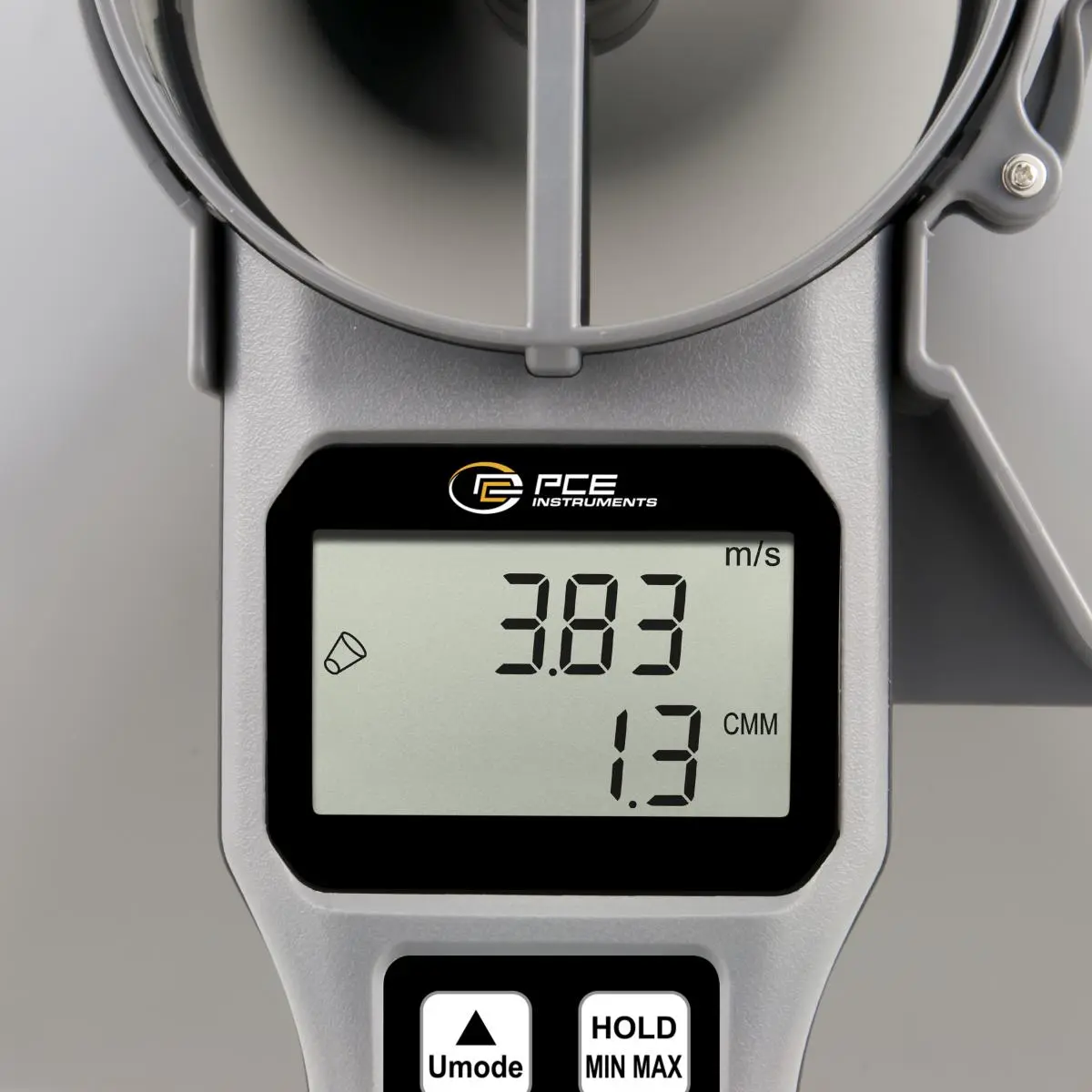

- Easy-to-read backlit LCD
- Display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection functions
- Incl. ISO Calibration Certificate


Specification

Technical Specification
Air flow velocity measuring range
0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
Air flow velocity accuracy <20 m/s: ±(1.5% of rdg. + 0.3 m/s)
>20 m/s: ±(3% of rdg. + 0.3 m/s)
Air temperature measuring range -20 ... 60 °C / -4 ... 140 °F
Air temperature accuracy ±0.6 °C
Air temperature resolution 0.1 °C / °F
Humidity measuring range 0.1 ... 99.9 % r.H.
Humidity accuracy ±3 % r.H. (at 25 °C / 77 °F and 10...90 % r.H.)
else: ±5 % r.H.
Humidity resolution 0.1 % r.H.
Temperature response time 60 seconds
Humidity response time 60 seconds
LCD update 1 x per second
Wet bulb temperature display -20 ... +59.9 °C / -4 ... 139.8°F
Dew point temperature display -5 ... +59.9 °C / 23 ... 139.8°F
Volume flow display 0 ... 99999 m³/min
Volume flow resolution 0.1 m³/min (0...9999,9 m³/min)
1 m³/min (10000...99999 m³/min)
Automatic shutdown after 20 minutes of inactivity
LCD size 32.5 x 54 mm / 1.28 x 2.13" (H x W)
Power supply 4 x 1.5 V AAA batteries
Operating conditions 0 ... +50 °C / 32 ... 89.6°F, <80 % r.H.
Storage conditions -10 ... +50 °C / 14 ... 89.6°F, <90 % r.H.
Dimensions 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0"
Weight ca. 200 g / 7 oz

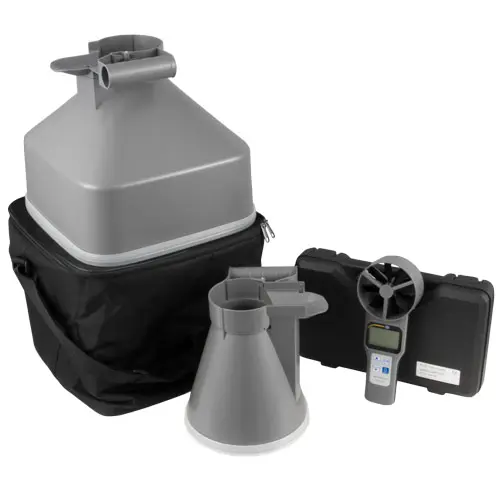

Delivery Scope

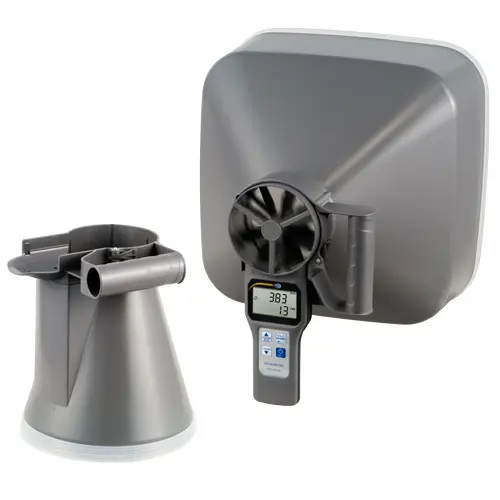

1 x Multifunction Air Velocity Meter with Flow Hoods PCE-VA 20-SET
1 x Square flow hood
1 x Round flow hood
4 x AAA batteries
1 x User manual
1 x Carrying case
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
