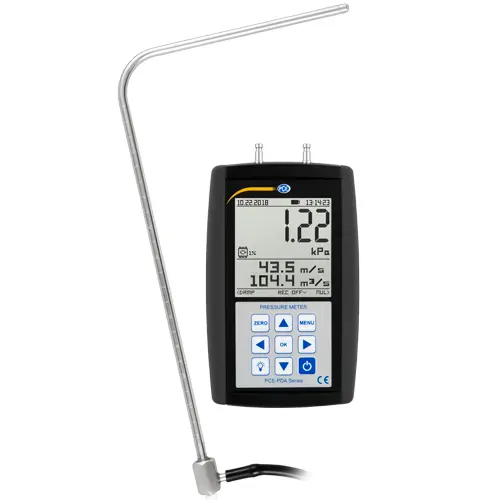

The pitot pipe anemometer can measure the wind speed by means of a pitot pipe via the differential pressure. The Pitot pipe anemometer calculates the air flow velocity through the measured ambient pressure and the incoming pressure. Therefore, the device has several measuring functions. Thus, the measuring device is capable of measuring or calculating the differential pressure, relative pressure, flow velocity and also the volumetric flow. The connection of a Pitot pipe to the measuring instrument is carried out through the hoses with the help of quick couplings. Different hoses are available depending on the application of the Pitot pipe anemometer.

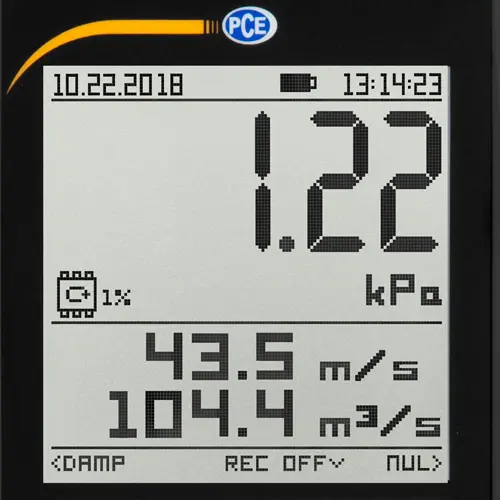

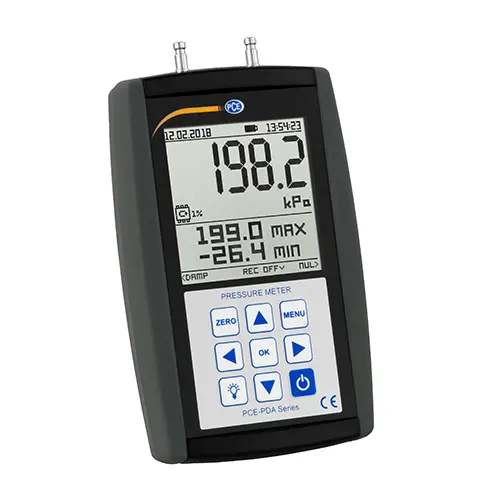

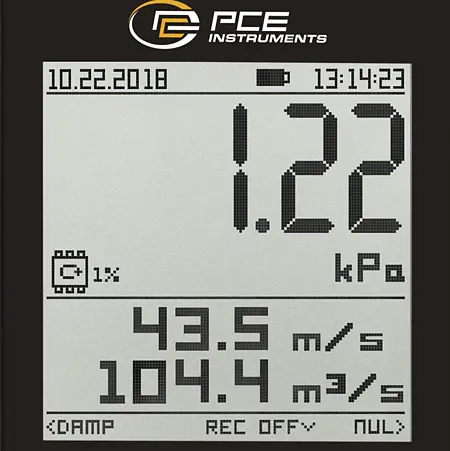

The Pitot pipe anemometer is equipped with a large display, which in the measuring mode is divided into two reading ranges. The main display shows the measured differential pressure. The underlying secondary display uses the Pitot pipe anemometer to display the calculated measurements. In addition, the maximum and minimum differential pressure can be displayed in the two-part graphic display. Here, however, the measured ambient temperature can also be visualized. The Pitot pipe anemometer has got a backlit display. The resolution of the differential pressure can be by choice switched-over. A precision mode is integrated, which increases the resolution by a factor of ten.

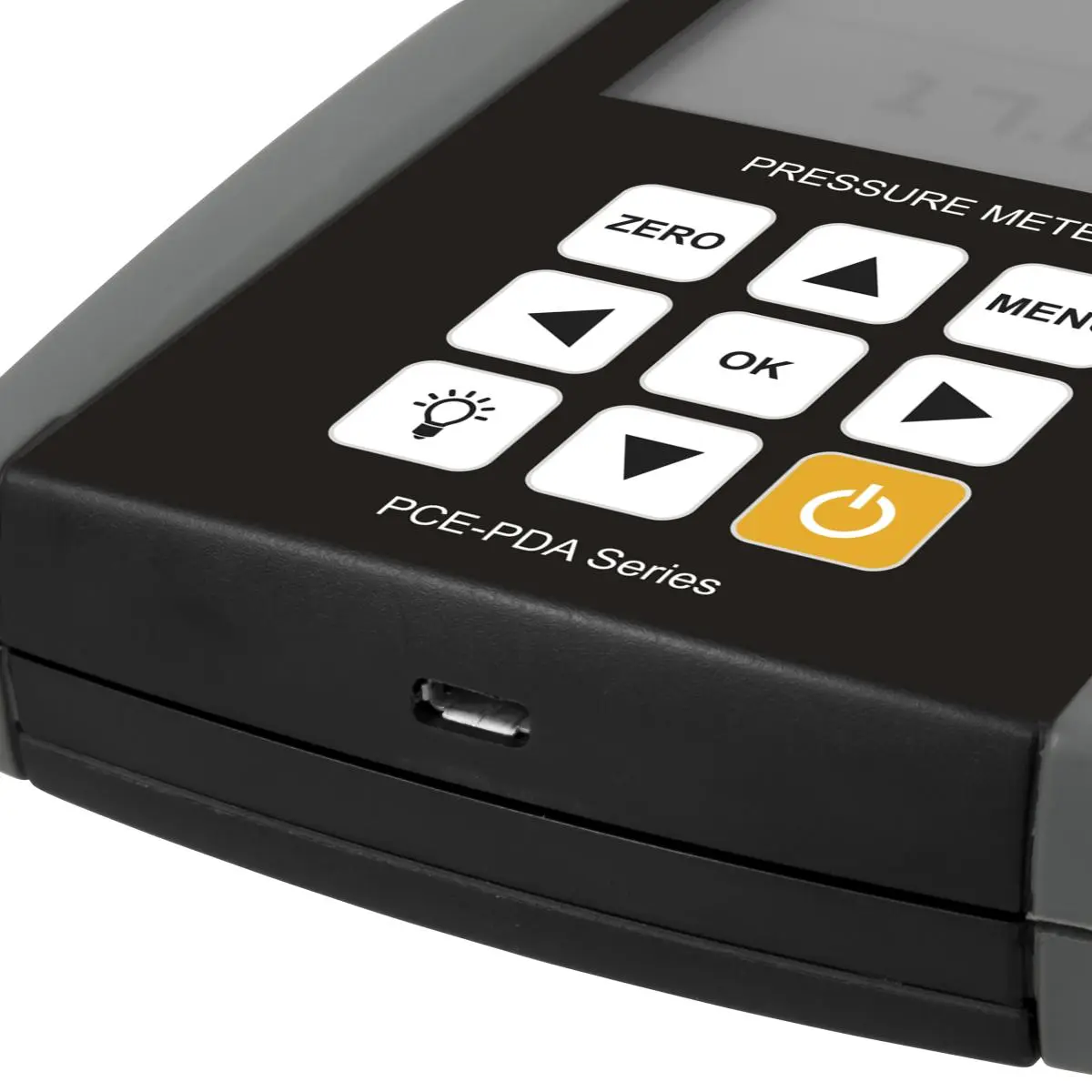

For further data processing, the Pitot pipe anemometer is equipped with a memory. Via the USB interface, it can be read out with the help of the software. Thus, the Pitot pipe anemometer can be used not only in the field, but also in the laboratory.
Note: The fitting Pitot pipe can be found in the accessories of this Pitot pipe anemometer.
