Building Moisture Meter / Building Material Moisture Meter PCE-SCD 50

Order no.: PCE-SCD 50
GTIN (EAN): 4250348735287
£ 10,227.00
£ 12,272.40
price ex. (VAT / delivery)
:
4250348735287
PCE-SCD 50
Delivery time: 1-2 working days

Description

Building Moisture Meter / Building Material Moisture Meter / wet and dry density, degree of compaction and moisture content / graphical menu / internal memory / location determination via GPS / 5-inch touch screen

The Building Moisture Meter / Building Material Moisture Meter is a modern measuring instrument that enables precise analyses of wet and dry density, degree of compaction and moisture content in soil. A Building Moisture Meter / Building Material Moisture Meter is used in various areas, including road construction, foundation construction, landfill construction, environmental and hydraulic engineering. They help engineers and site managers to analyse soil properties and quality to ensure that soils are suitable for the intended construction projects. By precisely recording the density, degree of compaction and moisture content, well-founded decisions can be made on further soil treatment, compaction or stabilisation. It makes a decisive contribution to quality assurance and enables a well-founded assessment of material properties in order to carry out construction projects efficiently, safely and sustainably.

Equipped with an integrated GPS, it provides precise location data for every measurement. The large 5-inch touch screen ensures user-friendly operation and quick navigation through the functions. Thanks to the fast measuring time of just 5 seconds, the Building Moisture Meter / Building Material Moisture Meter enables efficient work and prompt results. The Building Moisture Meter / Building Material Moisture Meter has an internal data memory with capacity for up to 4200 measured values, allowing extensive data to be saved directly and analysed later. The included software assists in analysing the collected data.

In addition, the Building Moisture Meter / Building Material Moisture Meter measures the soil temperature and provides precise density values in real time. A practical status bar shows the GPS status, the memory capacity, the available battery voltage, a possible low battery level as well as the date and time. All relevant information is therefore always visible at a glance so that you can fully concentrate on the measurements with the Building Moisture Meter / Building Material Moisture Meter.


Highlights

- wet and dry density, % compaction, % moisture
- measurement within 5 seconds
- precise measurement results
- internal data memory for 4200 values
- status bar for GPS signal, memory and battery

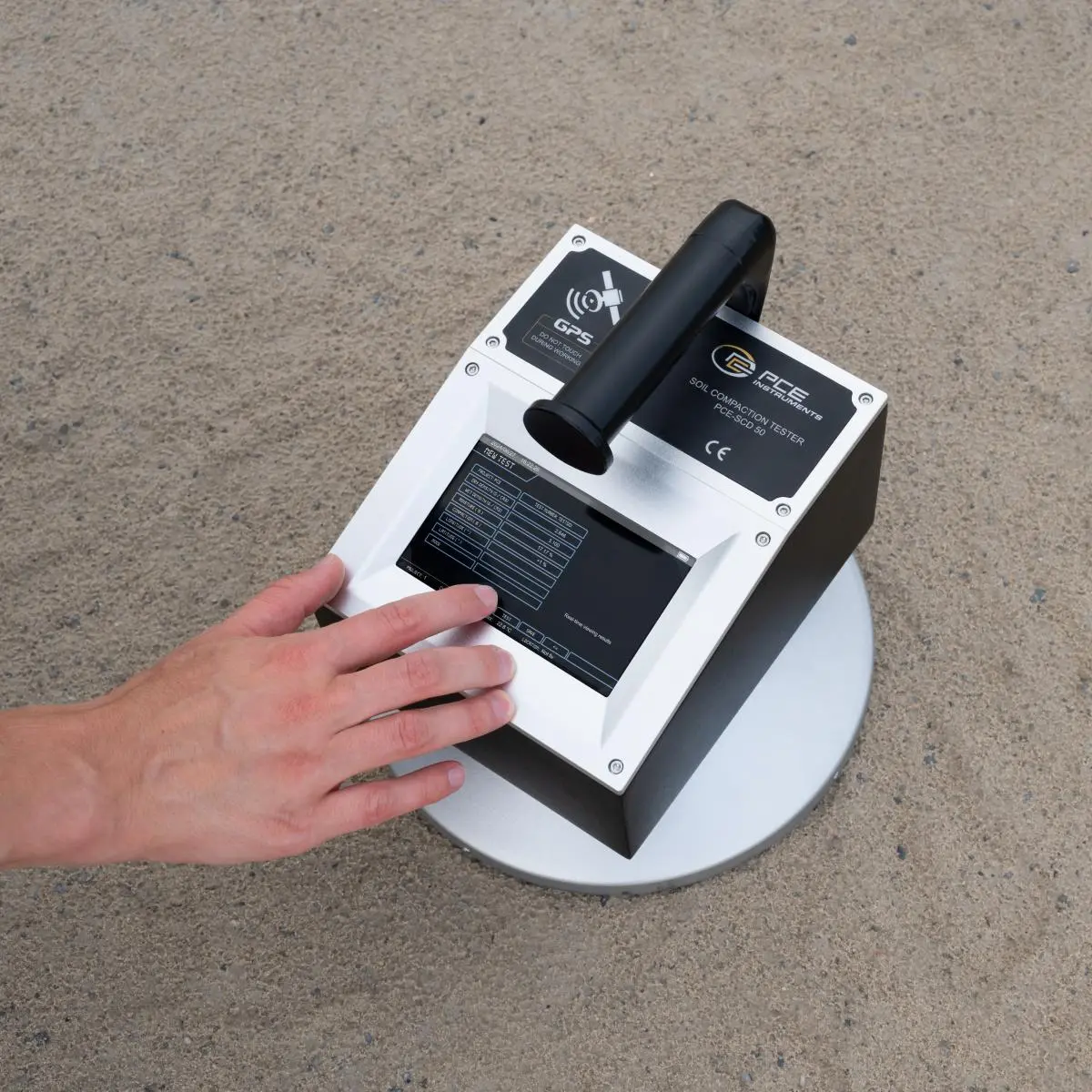

- 5-inch touch screen
- location determination via GPS
- software
- versatile
- user-friendly

Specification

General technical data
Measuring functions  Wet density, Dry density, %moisture, %compaction
Units  g/m³
Standard(s)  ASTM D4318, ASTM D422, ASTM D4698, ASTM D1557
Operating time  7 h
Measuring field  25 cm
Measuring depth  50 ... 300 mm
Menu language  English (GB), English
Protection class (device)  IP52
Power supply  220 V | 50 Hz
Connector type  Euro plug
Weight  2,84 kg
Operating conditions  -7 ... 43 °C , 0 ... 95 % RH
Storage conditions  -7 ... 43 °C , 0 ... 95 % RH
Capacity  10400 mAh
Dimensions ( H x D )  240 x 250 mm

Delivery Scope

1 x Building Moisture Meter / Building Material Moisture Meter PCE-SCD 50
1 x mains adaptor 5 V / 1 A
1 x USB cable

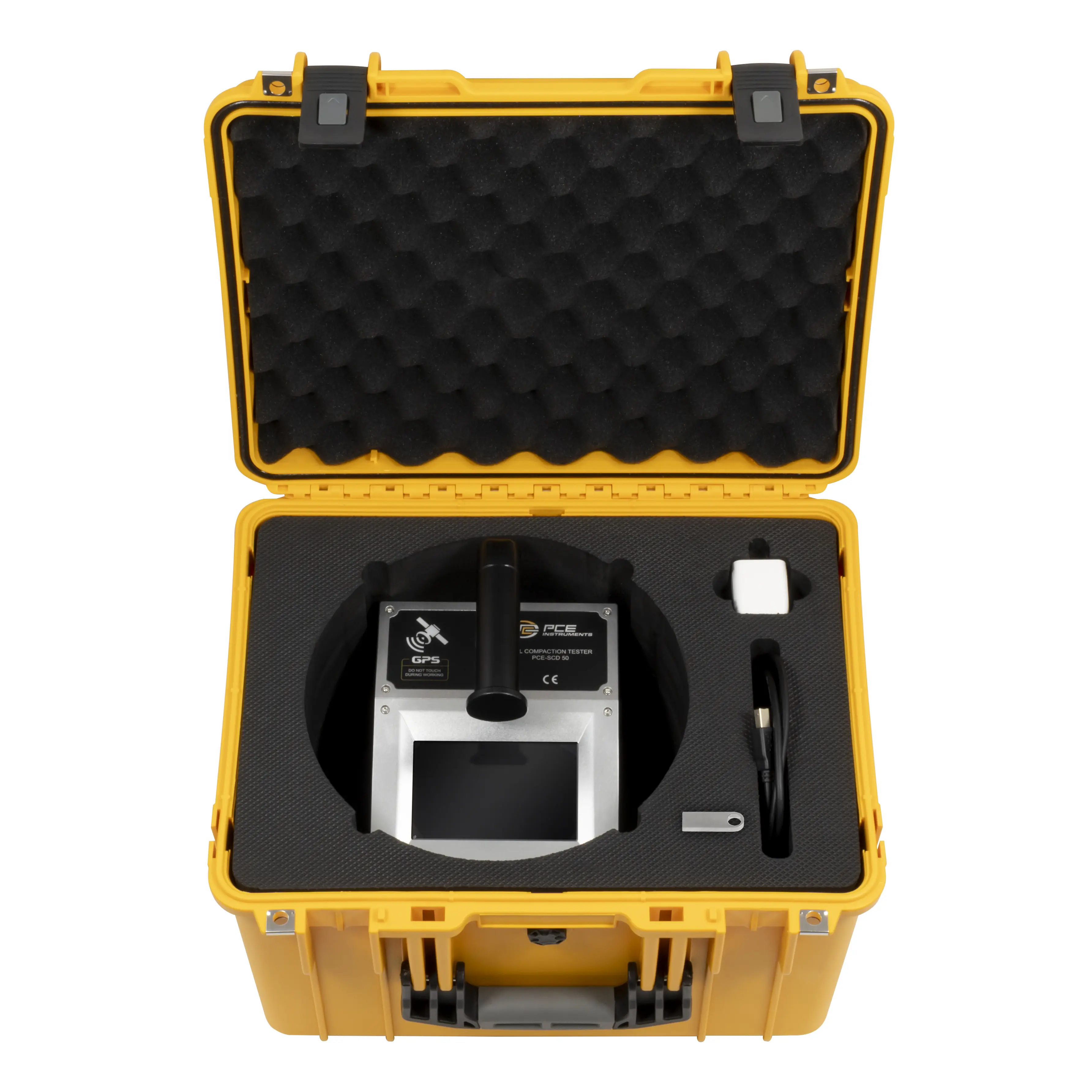

1 x carrying case
1 x software on USB pen drive
