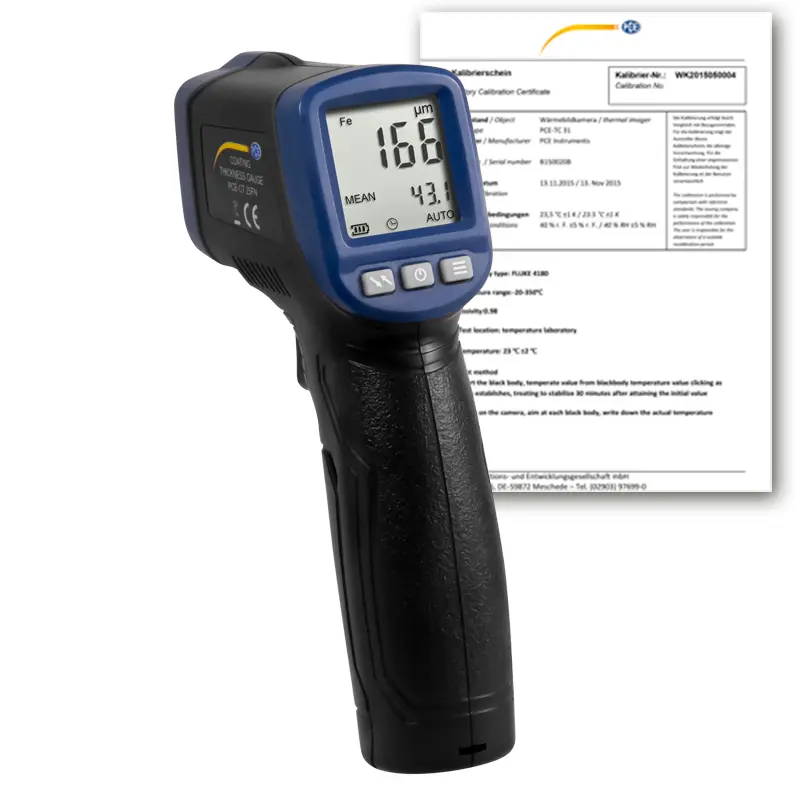

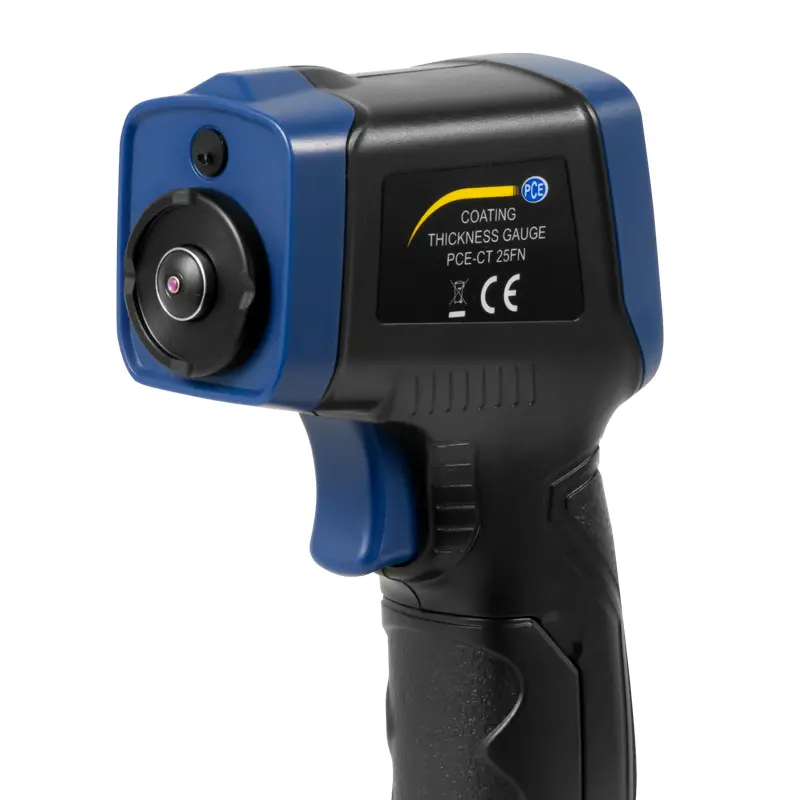

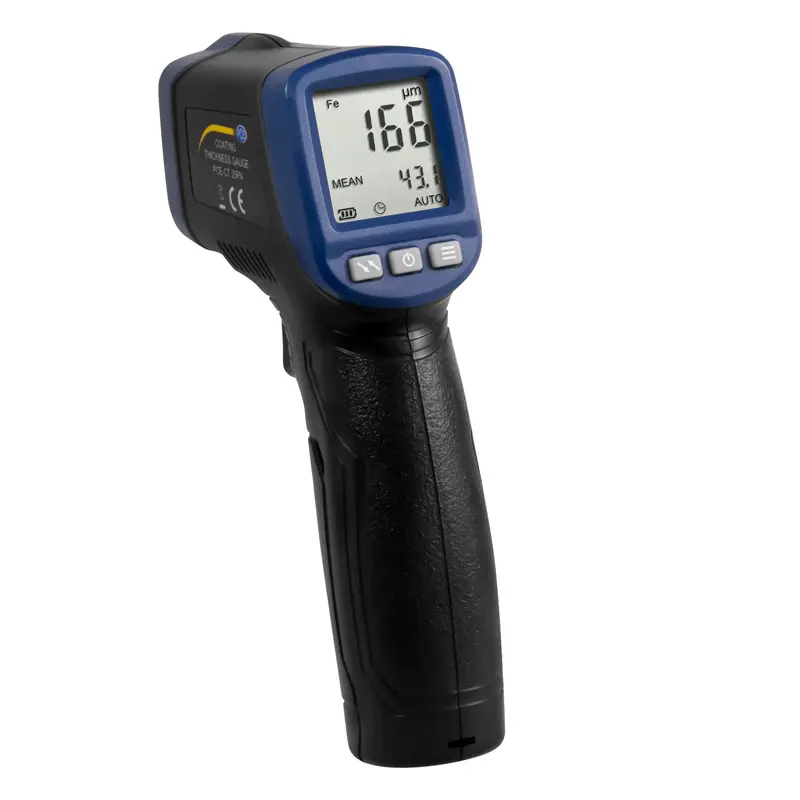

Car Measuring Device PCE-CT 25FN-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 25FN-ICA
GTIN (EAN): 4250348721983
£ 272.00
£ 326.40
ISO Calibration
price ex. (VAT / delivery)
:
4250348721983
PCE-CT 25FN-ICA
Delivery time: 10 - 14 days

Accessory

ISO Calibration Certificate for Coating Thickness Meter
ISO Calibration Certificate for Coating Thickness Meter
£ 154.00

Description

Car Measuring Device with convenient one-hand operation / MIN MAX and MEAN display /
Battery indicator / various units / automatic shutdown /
for ferrous and non-ferrous metals / small and compact design

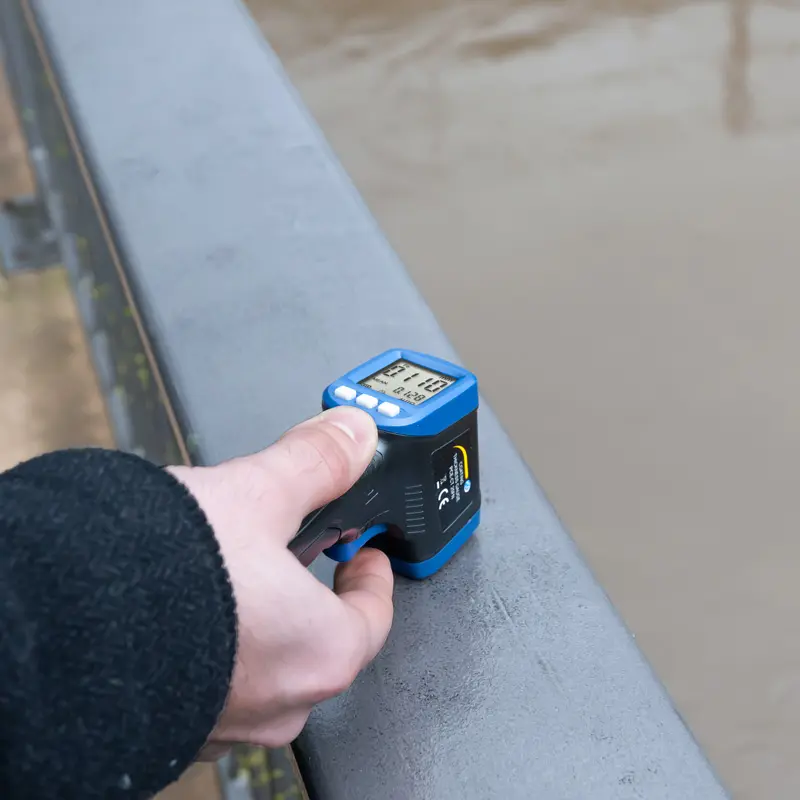

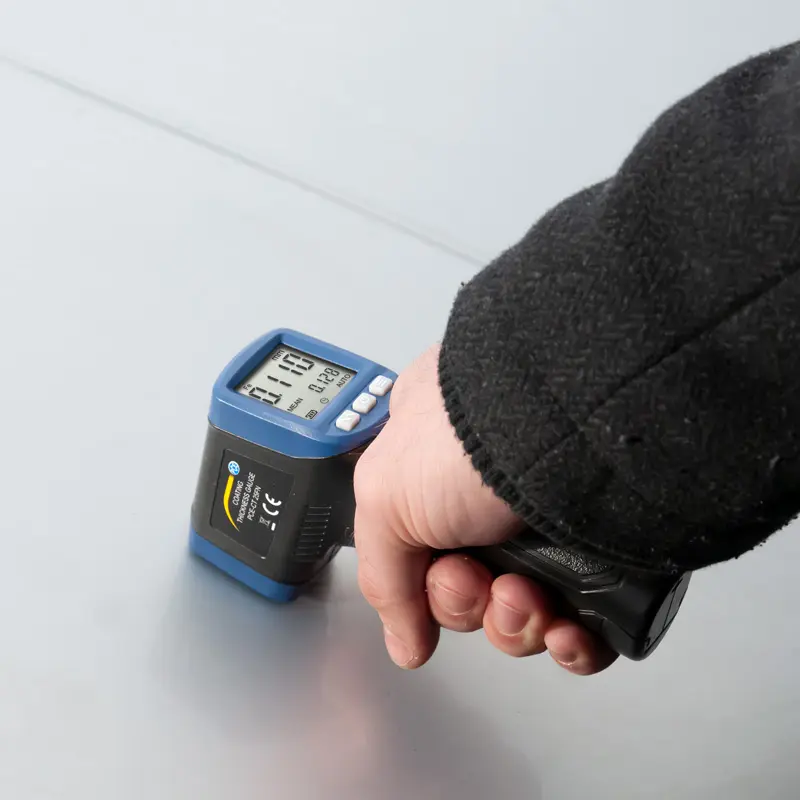

The car measuring device is used for the quick and precise detection of layer thicknesses on metals. In comparison to many other car measuring device, this car measuring device does not have to differentiate between ferrous and non-ferrous metal. With the small and compact design of the car measuring device, one-hand operation is possible. Despite its small size, the car measuring device has a measuring range of 1500 µm and an accuracy of ± (3% + 1 µm).

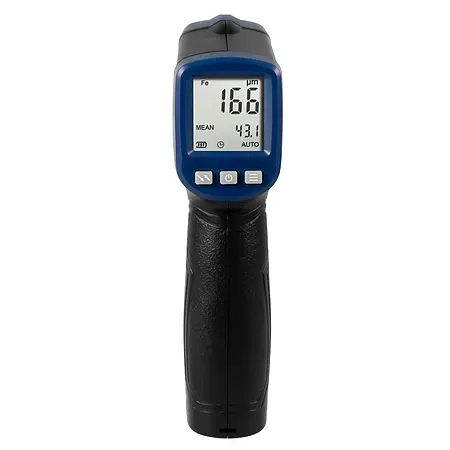

The measured values displayed can be output in µm, mm and in mils on the car measuring device. In addition to measuring the layer thickness, the car measuring device can determine the smallest, the largest and also the mean value from a series of different measurements. The car measuring device also has an automatic switch-off function.

Highlights

- small and compact design
- fast measuring frequency
- Calibration set included
- Different units can be selected
- also for continuous measurements
- comfortable one-hand operation

Specification

Measuring range 0 ... 1500 µm
Measurement accuracy ± (3% + 1 µm)
resolution 0.1 µm in the measuring range 0 ... 100 µm
  1 µm in the measuring range> 100 µm
units µm, mm, mils
Smallest curvature convex 5 mm, concave 25 mm
Smallest measuring area Ø 20 mm
Minimum thickness of the substrate     Fe: 0.3 mm
  NFe: 0.05 mm
Measuring rate Max. 2 Hz
Power supply 9 V block battery
Operating conditions -10 ... 50 ° C, 20 ... 90% RH non-condensing
Storage conditions -10 ... 60 ° C, 20 ... 90% RH non-condensing
Dimensions 143 x 85 x 39 mm
Weight approx. 100 g
Housing material SECTION

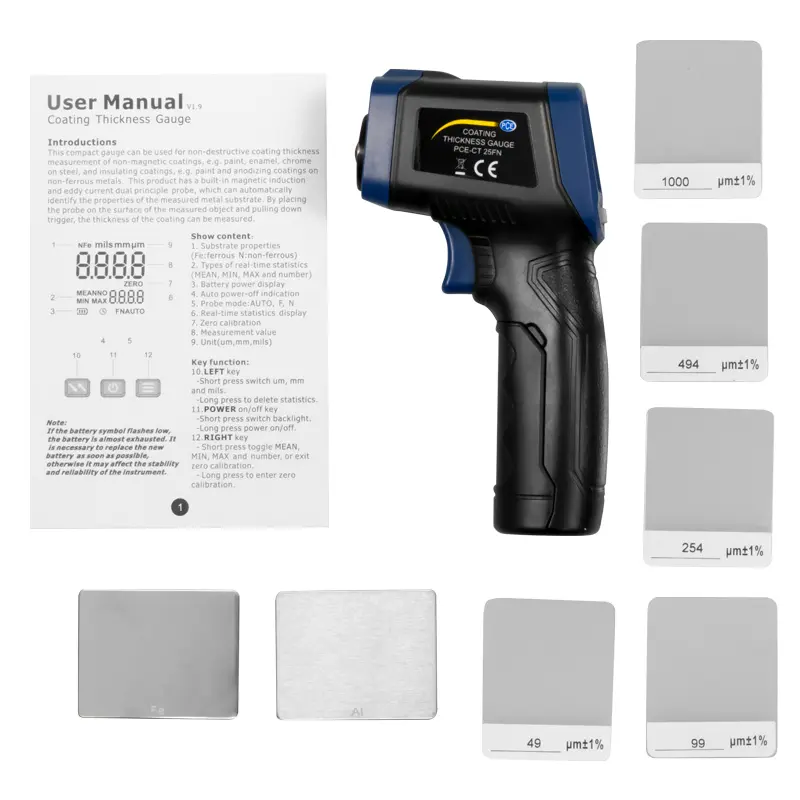

Delivery Scope

1 x Car Measuring Device PCE-CT 25FN

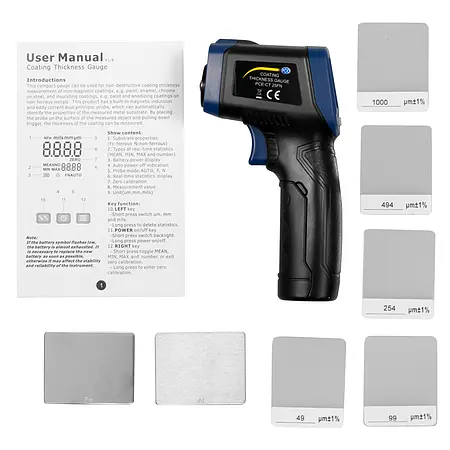

5 x calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x 9 V block battery

1 x instruction manual
1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
